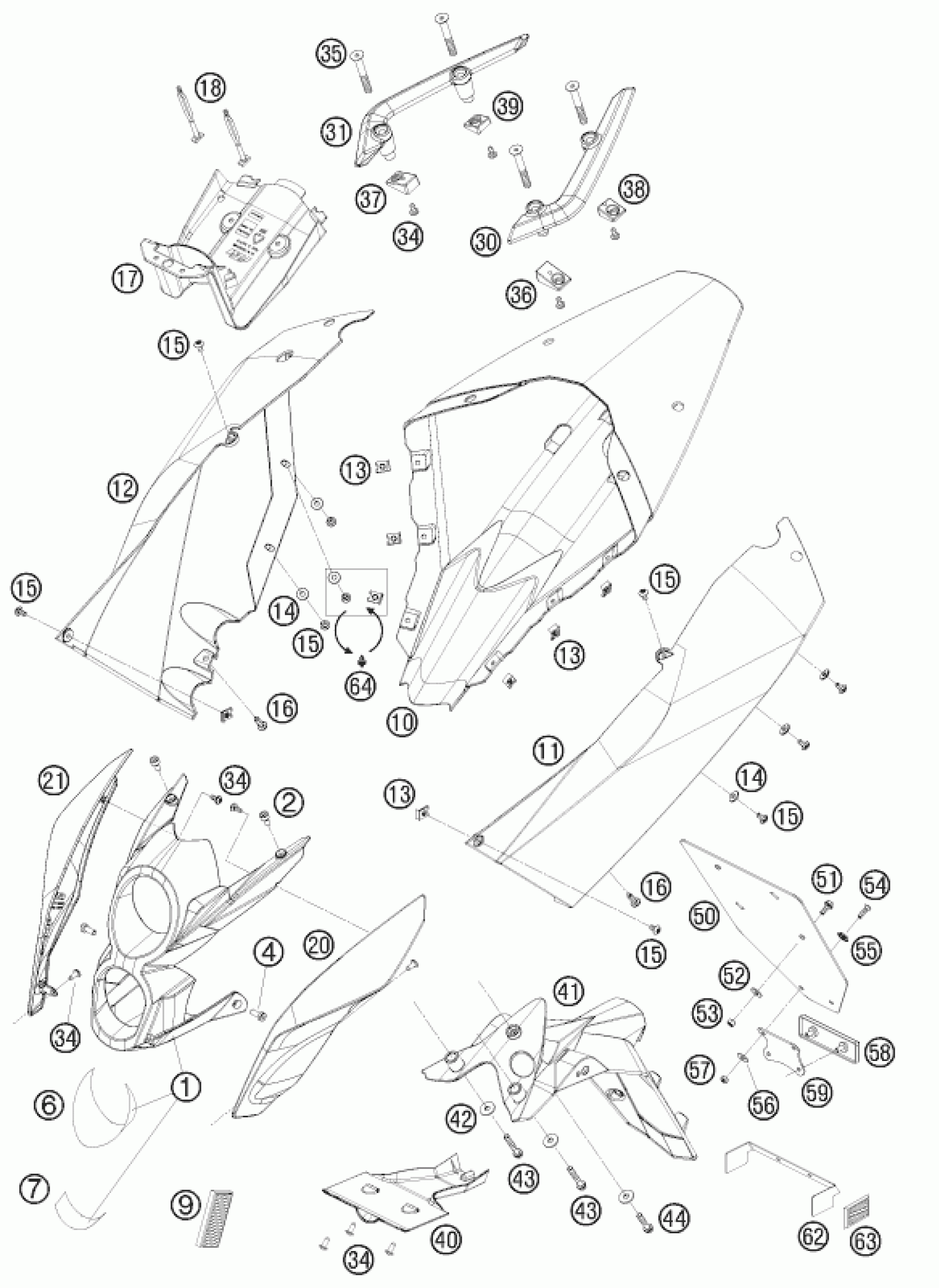

KTM 690 DUKE ORANGE 2008 MASK, FENDERS Diagram

MASK SPOILER L/S ORANGE 08

7560800300075A

$67.97

MASK SPOILER R/S ORANGE 08

7560800400075A

$67.97

HEAD LIGHT MASK SILVER MET.

7560800100083A

$186.24

AH SCREW DIN0912-M 6X12

0912060123

$3.08

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

REAR FENDER ORANGE

7500801300075A

$327.80

SIDE COVER L/S+DECAL BLACK-MET

7500804100040C

$137.86

SIDE COVER R/S+DECAL BLACK-MET

7500804200040C

$127.45

RANGE CHANGE METAL NUT M5

54603048200

$5.23

Washer tail section UT D=14mm

75008023000

$3.08

Oval head screw M5x14 TX25

58605083014

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

STORAGE COMPARTMENT

75003075000

Unavailable

RUBBER L=145MM

50303018000

$6.44

HAND GRIP L/S 07

75012008000

$7.28

HAND GRIP R/S 07

75012009000

$7.75

EJOT PT screw K50x12

0081050121

$2.05

FLAT HEAD SCREW ISO10642 M8X60

0991080603

$2.05

SPACER SUB FRAME FRONT L/S

75003065000

$2.05

SPACER SUB FRAME FRONT R/S

75003066000

$2.05

SPACER SUB FRAME REAR L/S

75003067000

$1.49

SPACER SUB FRAME REAR R/S

75003068000

$2.05

COVER NUMB. PLATE CARRIER 08

75608015010

$12.80

NUMBER PLATE CARRIER

75608015000

$16.76

Washer DIN9021-A 6.4

0021060003

$2.05

HH collar screw M6x35 TX30

0025060356

$3.08

HH collar screw M6x20 TX30

0025060206

$3.08

license plate mouning plate

60012081200

$8.41

HH collar screw M6x15 TX30

0024060156

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

Self lock. nut DIN985-M6-A2

0985060003

$2.05

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

WASHER 6MM

40006006000

$1.49

WASHER DIN0125-A 5,3

0125050003

$1.49

Self locking nut DIN 985 M5

0985050003

$2.05

REFLECTOR RED

58412080000

$5.23

BRACKET FOR REFLECTOR

58412080050

$6.07

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

SIDE REFLECTOR RED REAR

16512180100

$7.10

Spread rivet cmpl. 6.2mm

76503075000

Unavailable

THERMAL PROT. FOIL F. LOW BEAM

75608001051

$6.62

THERMAL PROT. FOIL F.HIGH BEAM

75608001052

$6.54
