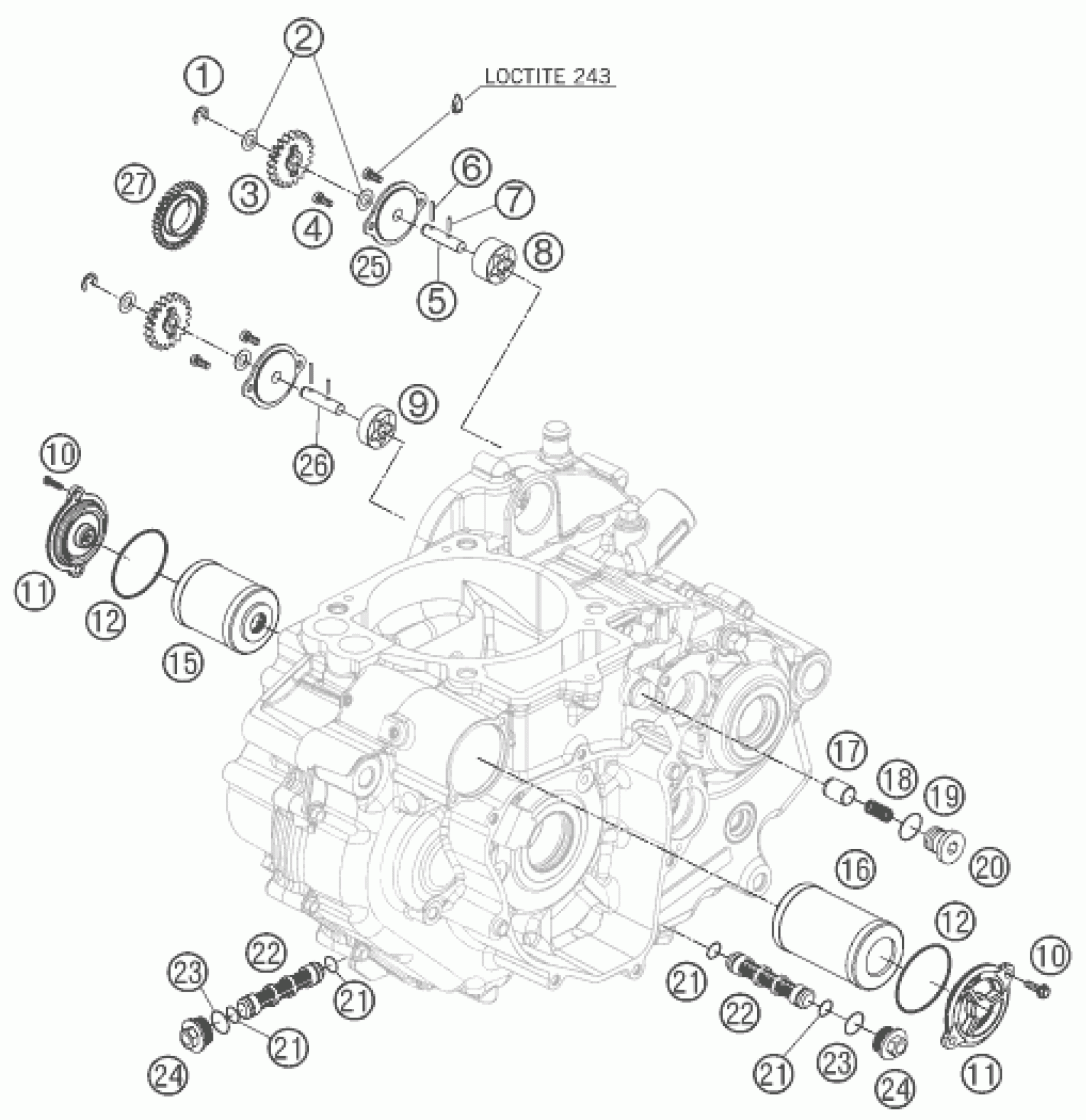

KTM 690 DUKE ORANGE 2008 LUBRICATING SYSTEM Diagram

#

Description

Price

1

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

2

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

3

OIL PUMP GEAR 20-T

75038001020

Unavailable

4

AH SCREW DIN7984 M5X10 A2

07984050100S

Unavailable

5

OIL PUMP SHAFT 07

75038002000

Unavailable

6

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

7

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

8

OILPUMP ROTOR 15MM G-164

77038011000

Unavailable

9

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

Unavailable

10

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

11

oil filter cover

75038041200

Unavailable

12

O-RING 39,34X2,62

07700390261

Unavailable

15

OIL FILTER SHORT

59038046100

Unavailable

16

OIL FILTER LONG

58038005100

Unavailable

17

VALVE PISTON D=10MM

58038028000

Unavailable

18

OIL PRES.SPRING 5 BAR RED 2001

58538023000

Unavailable

19

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

20

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

21

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

22

OIL SCREEN 15X83MM

59038016000

Unavailable

23

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

24

PLUG M20X1,5 WS=13

59038017000

Unavailable

25

OIL PUMP COVER 07

75038003000

Unavailable

26

OIL PUMP SHAFT 07

75038004000

Unavailable

27

OIL PUMP DRIVE WHEEL 07

75032050001

Unavailable
