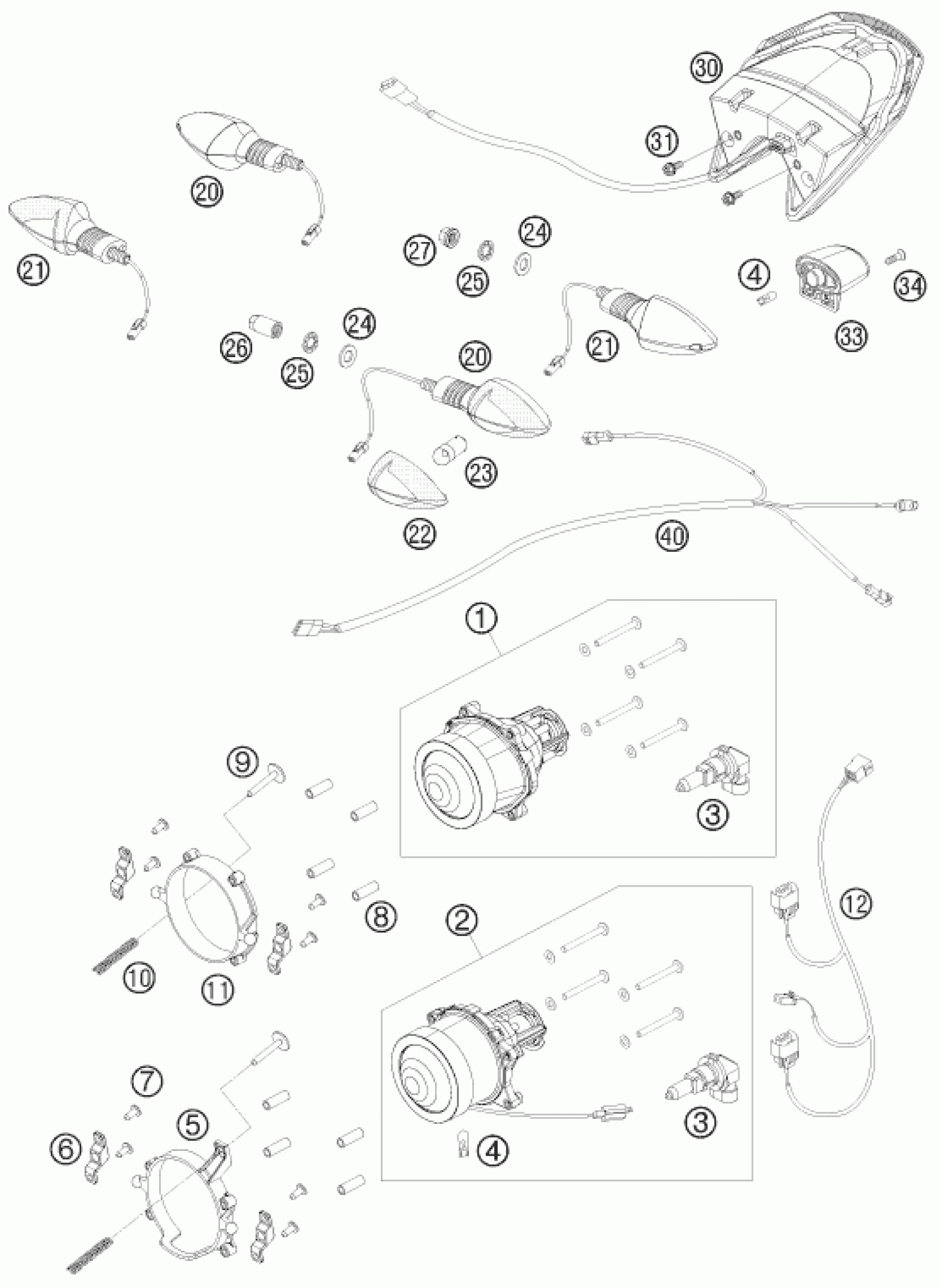

KTM 690 DUKE ORANGE 2008 LIGHTING SYSTEM Diagram

#

Description

Price

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

26

FLASHER NUT M10X1,25 WS12

75014030000

$4.35

1

HEADLIGHT LOW BEAM 08

75614101000

$108.41

2

HEADLIGHT HIGH BEAM

75614002000

$122.08

3

BULB HB3 12V 60W '99

58714003000

$31.53

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

23

BULB 12V ORANGE (RY10W)

60114027000

$6.63

24

Washer DIN0433-M10

0433100003

$1.49

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

30

REAR LIGHT LED 07

75014040000

$146.13

31

HH collar screw M5x12 TX30

0025050126

$3.08

33

LICENSE PLATE ILLUMINATION 07

75014047000

$10.37

34

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

40

WIRING HARNESS REAR 07

75011076000

$29.54

5

BRACKET F. HIGH BEAM

75614008000

$8.59

6

HEADLIGHT BRACKET

75614018000

$5.46

7

EJOT PT screw K50x12

0081050121

$2.05

8

DISTANCE BUSHING 5,5X8X23,4 MM

75614009000

$4.11

9

SCREW FOR PLASTIC D=5X35

58714001010

$1.73

10

SPRING F. HEAD LIGHT ADJ. '99

58714010050

$3.48

11

BRACKET F. LOW BEAM

75614007000

$7.14

12

WIRING HARNESS HEADLIGHT 08

75611079000

$30.54
