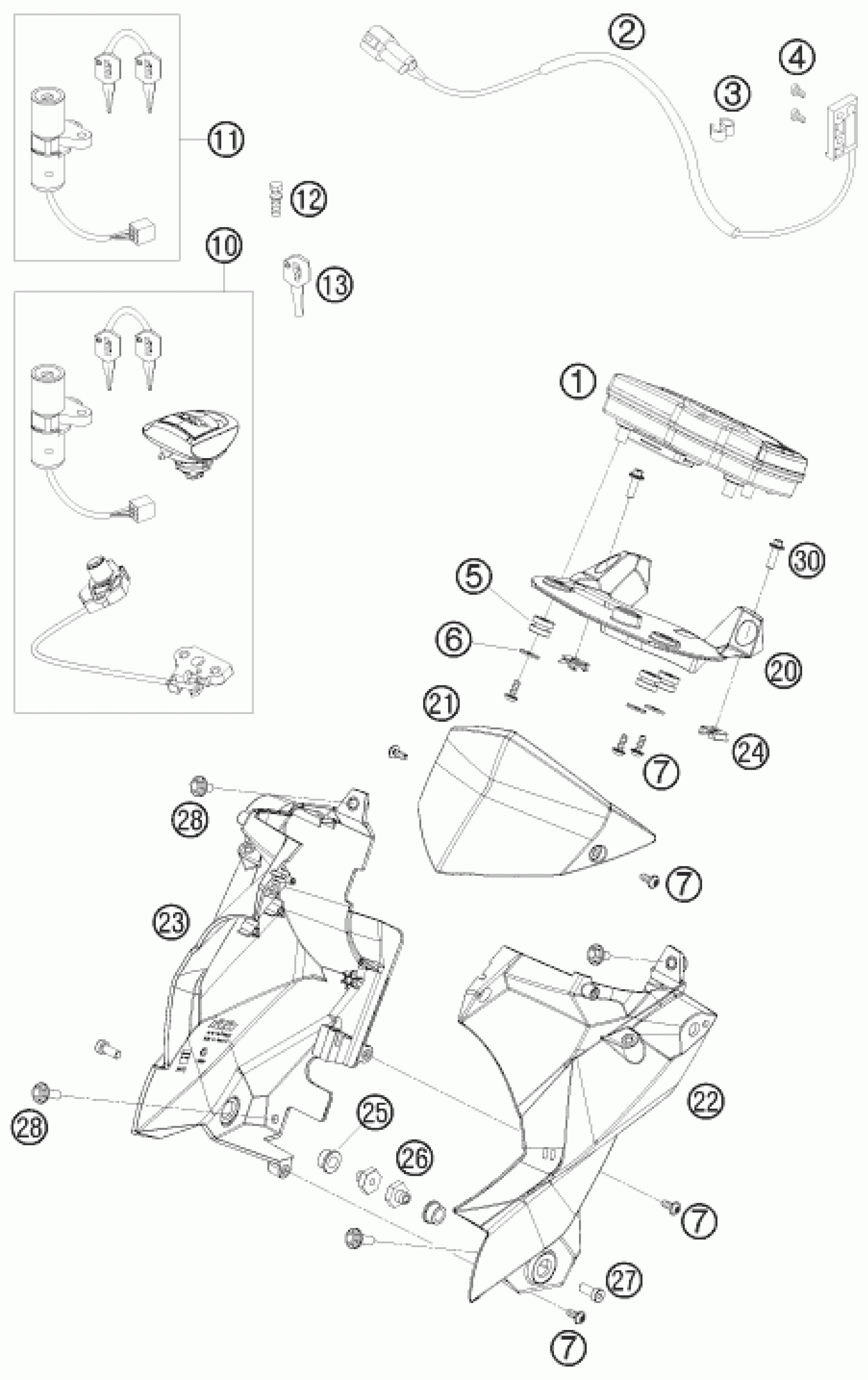

KTM 690 DUKE ORANGE 2008 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

10

KEY-SET 07

75011066144

$328.08

11

IGNITION LOCK

75011166000

$167.89

12

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

$5.23

13

KEY BLANK LC4/DUKE/LC8

40011166100

$16.07

1

SPEEDOMETER 07

75014069000

$552.76

2

SPEEDOMETER SENSOR 06

62514068100

$94.52

3

CLIP 5/7 MM 06

60111094000

$3.08

4

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

washer DIN 9021 A - 5.3

0021050003

$1.49

7

EJOT PT screw K50x12

0081050121

$2.05

23

MASK BRACKET R/S

75614063000

$23.52

24

RANGE CHANGE METAL NUT M5

54603048200

$5.23

25

Rubber bushing 9X17X8.5

75608006000

$4.11

26

THREADED BUSHING M6 SW17

75608006050

$5.23

27

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

28

HH collar screw M6x20 TX30

0024060206

$3.08

30

HH collar screw M5x12 TX30

0025050126

$3.08

20

SPEEDOMETER BRACKET

75614060000

$9.06

21

WINDSHIELD 08

75608065000

$27.05

22

MASK BRACKET L/S

75614062000

$24.13
