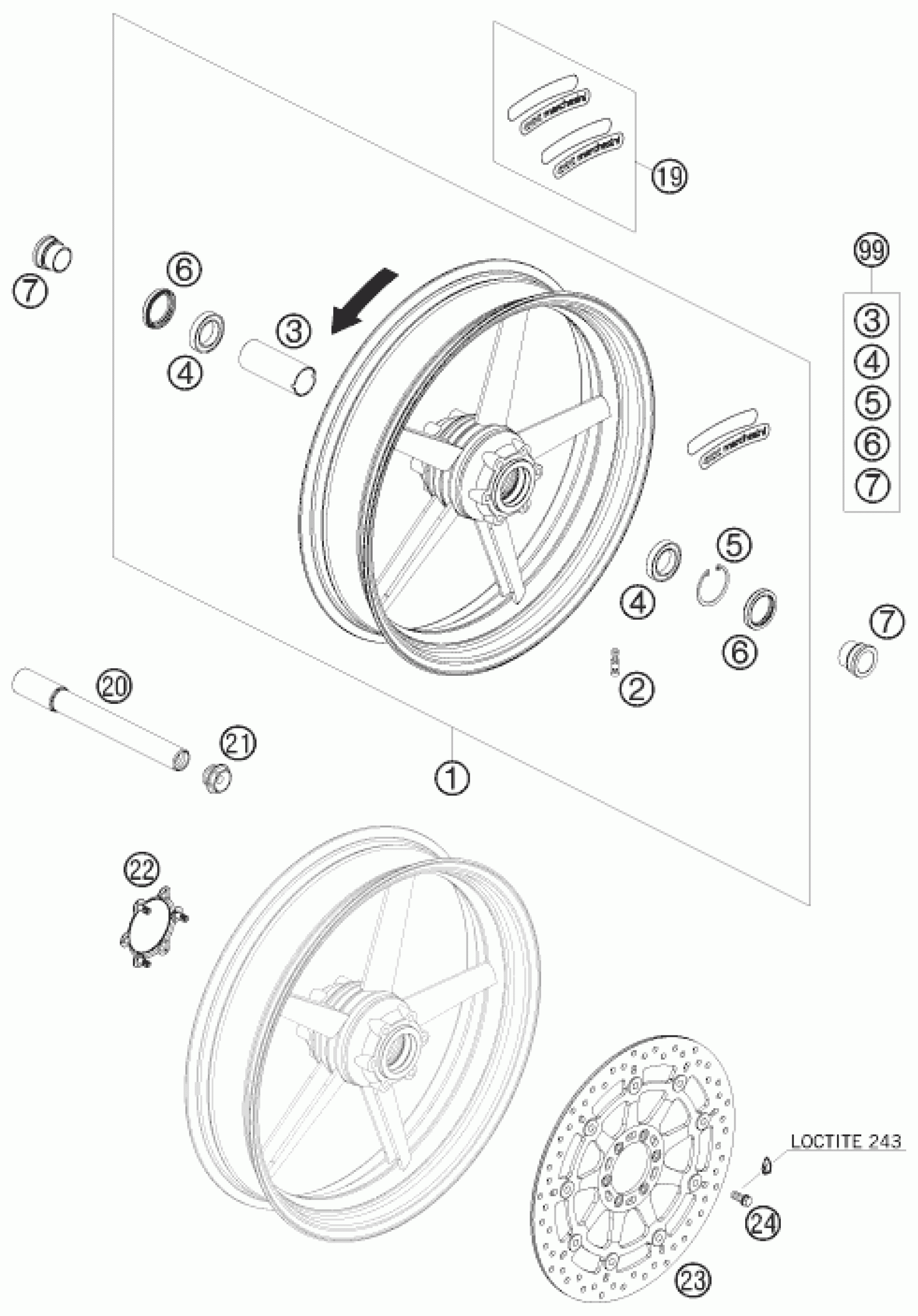

KTM 690 DUKE ORANGE 2008 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL. 3,5X17'' 07

7560900104433

$666.93

2

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

3

Bearing spacing tube, front

61009011000

$22.81

4

Grooved ball bearing 6906

0625069068

$34.68

5

LOCK RING DIN0472-48X1,75

0472048175

$2.05

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSHING F. FR. WHEEL

54809012000

$30.10

20

WHEEL SPINDLE FRONT D=26MM 07

75009081000

$80.78

21

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

22

PLASTIC COVER RING

75009001010

$6.07

23

BRAKE DISC D=320MM 07

75609060000

$266.41

24

SPECIAL SCREW M8X18 05

61009062018

$4.11

19

STICKER MARCH. 2L/S+2R/S WHITE

00050000120

$13.74

99

FRONT WHEEL REP. KIT

75609015000

$89.28
