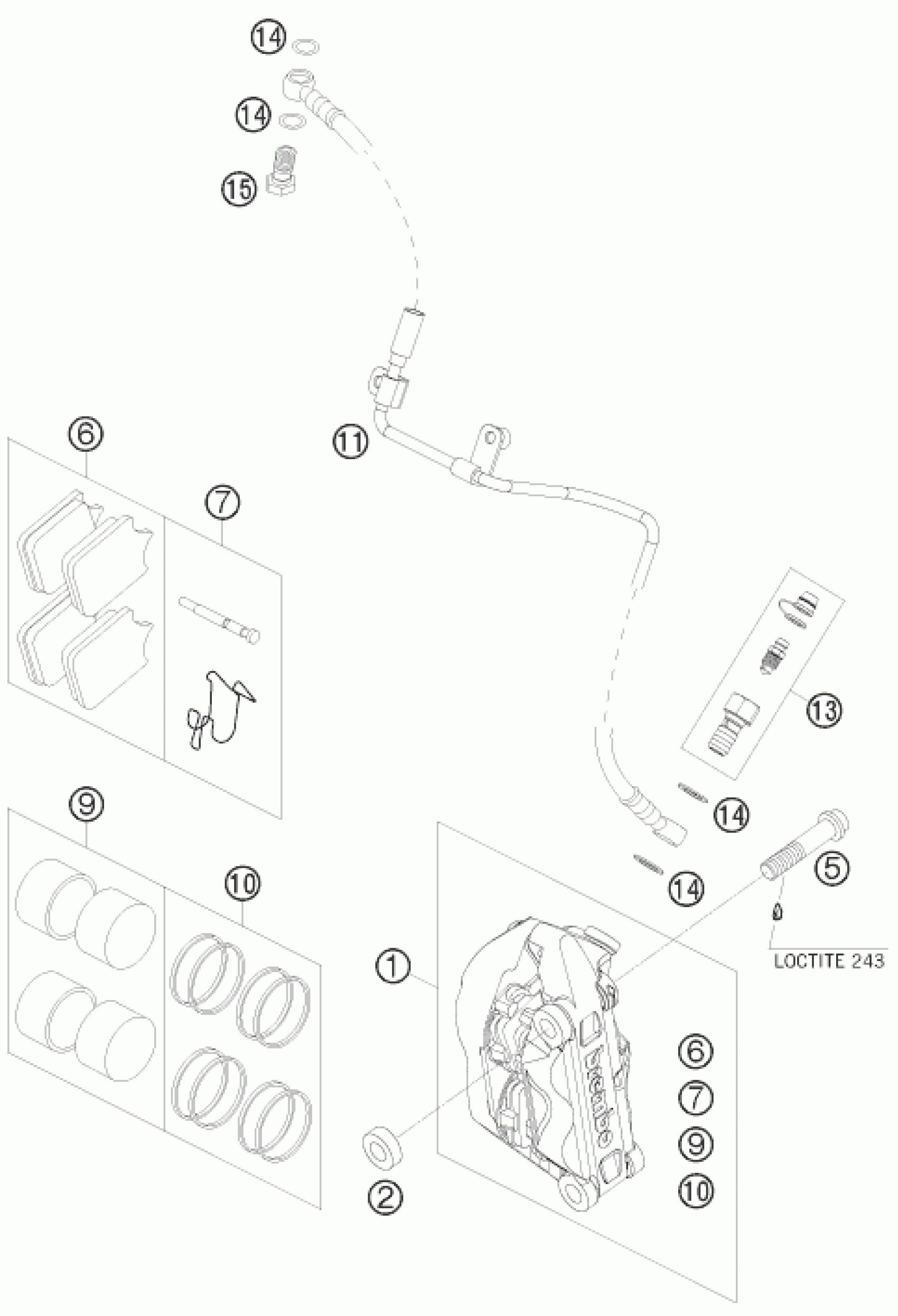

KTM 690 DUKE ORANGE 2008 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER RADIAL L/S 07

62513115000

$382.78

2

SPACER BUSH 10,1X20X7,5 07

6111302200001

$4.11

5

AH collar screw M10x1.25x65 s-

0035100659

$5.23

6

BRAKE PAD FR. HAWK 7342-49

61013030100

$73.67

7

PINS + SPRINGS F. BRAKECALIPER

61013018000

$30.38

9

BRAKE PISTONS 4X

61013019000

$79.00

10

REP.KIT SEALING RINGS 4X

61013019100

$33.65

11

BRAKE PIPE FRONT CPL. 08

75613112000

$111.19

13

BLEEDER SCREW CPL. 05

62513020000

$27.48

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

banjo bolt M10x1x19 black

54813020100

$9.90
