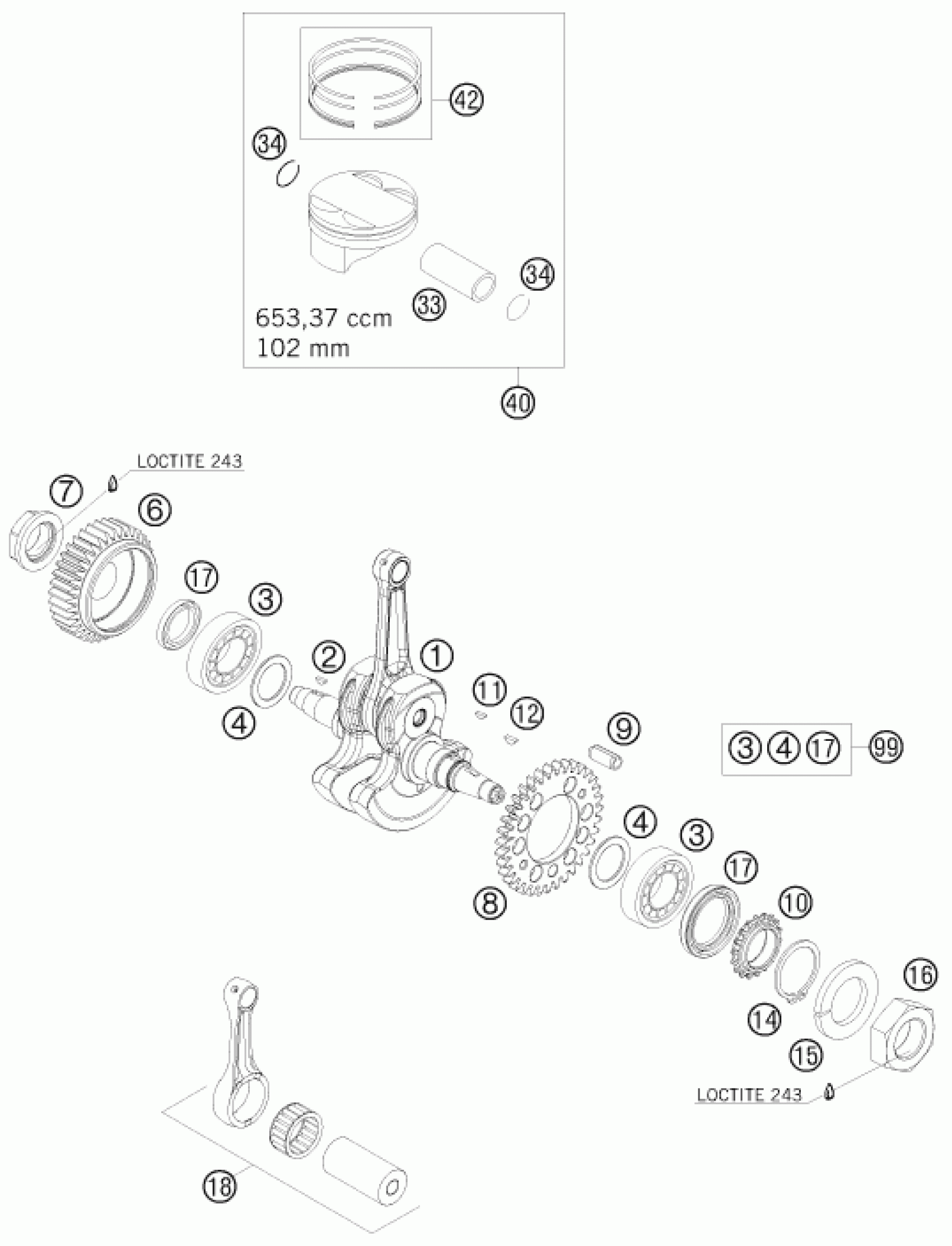

KTM 690 DUKE ORANGE 2008 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL

75030018100

$647.77

2

woodruff key DIN 6888 4x5x13

0888040050

$4.11

3

CYL.ROLLER BEARING NJ207 ECPC4

75030018150

$83.30

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

6

PRIMARY GEAR 36 T 07

75032000002

$165.49

7

NUT FOR PRIMARY GEAR

75030029100

$10.46

8

DRIVE WHEEL BALANCER SHAFT 07

75030055000

$89.84

9

TENSION PIN ISO13337 8X30

0749080300

$2.05

10

TIMING PULLEY 07

75036014000

$31.22

11

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

12

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

14

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

$7.56

15

LOCK WASHER VSK 18

58132072000

$2.05

16

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

17

SHAFT SEAL R.35X50X7B VITON

0760355070

$10.65

18

CONNECT. ROD REPAIR SET LC4 08

75030015144

$326.51

33

PISTON PIN 20mm

75030833000

$47.58

34

CIRCLIP LC4 07

75030074000

$12.33

40

PISTON CPL. I 08

75030007200 I

Unavailable

40

PISTON CPL. II 08

75030007200 II

Unavailable

42

PISTONRING SET LC4 07

75030031044

$82.46

99

CRANKSHAFT REP. KIT 690

00050002305

Unavailable
