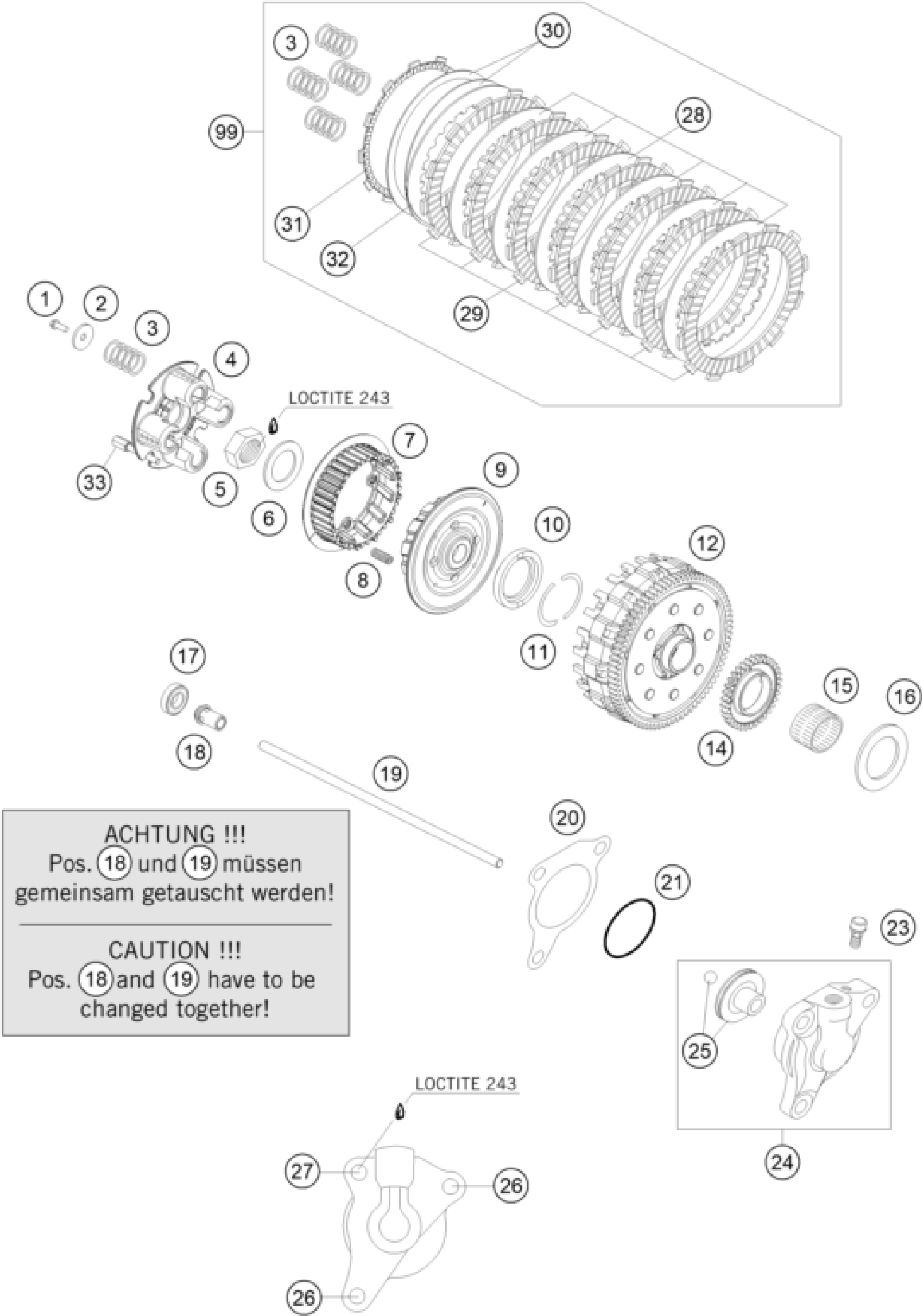

KTM 690 DUKE ORANGE 2008 CLUTCH Diagram

#

Description

Price

1

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

2

SPRING RING 07

75032006000

Unavailable

3

CLUTCHSPRING 3,0X33,5

58532080000

Unavailable

4

PRESSURE CAP

75032003000

Unavailable

5

HEXAGON NUT M20X1,5 7MM

60036073050

Unavailable

6

thrust washer 20x32x2

47032020000

Unavailable

7

INNER CLUTCH HUB MOVABLE

75032002002

Unavailable

8

CLUTCH RELEASE SPRING

75032033000

Unavailable

9

INNER CLUTCH HUB FIXED

75032002001

Unavailable

10

STEPPED WASHER 07

75032009000

Unavailable

11

HALF-WASHER 07

75032007000

Unavailable

12

OUTER CLUTCH HUB CPL.

75032001044

Unavailable

14

OIL PUMP DRIVE WHEEL 07

75032050001

Unavailable

15

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

16

WASHER 26X40X2 07

75032017000

Unavailable

17

deep groove ball bearing 6001.

0625060016

Unavailable

18

PRESSURE BOLT 08

75032055100

Unavailable

19

PUSH ROD 08

75032054200

Unavailable

20

GASKET FOR SLAVE CYLINDER

59032065000

Unavailable

21

O-ring 30x1.5 NBR 70

0770300015

Unavailable

23

BLEEDER SCREW WITH CAP

54732064000

Unavailable

24

OUTPUT CYLINDER CPL. 27MM 03

59032061044

Unavailable

25

PISTON + O-RING + BALL 27MM

59032066000

Unavailable

26

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

27

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

28

STEEL DISK 1,5 MM LC4 ´07

75032112000

Unavailable

29

LINING DISK 2,7MM FCC 02

58332011300

Unavailable

30

RONDELLA ANTIVIBRAZIONE SET

58632016000

Unavailable

31

LINING DISC CUT OUT

75032111100

Unavailable

32

STEEL DISK 1,5MM NITRIDED

75032112100

Unavailable

33

HOLDING SCREW GMB-M5X35

75032032000

Unavailable

99

CLUTCH KIT 690/701

75032011110

Unavailable
