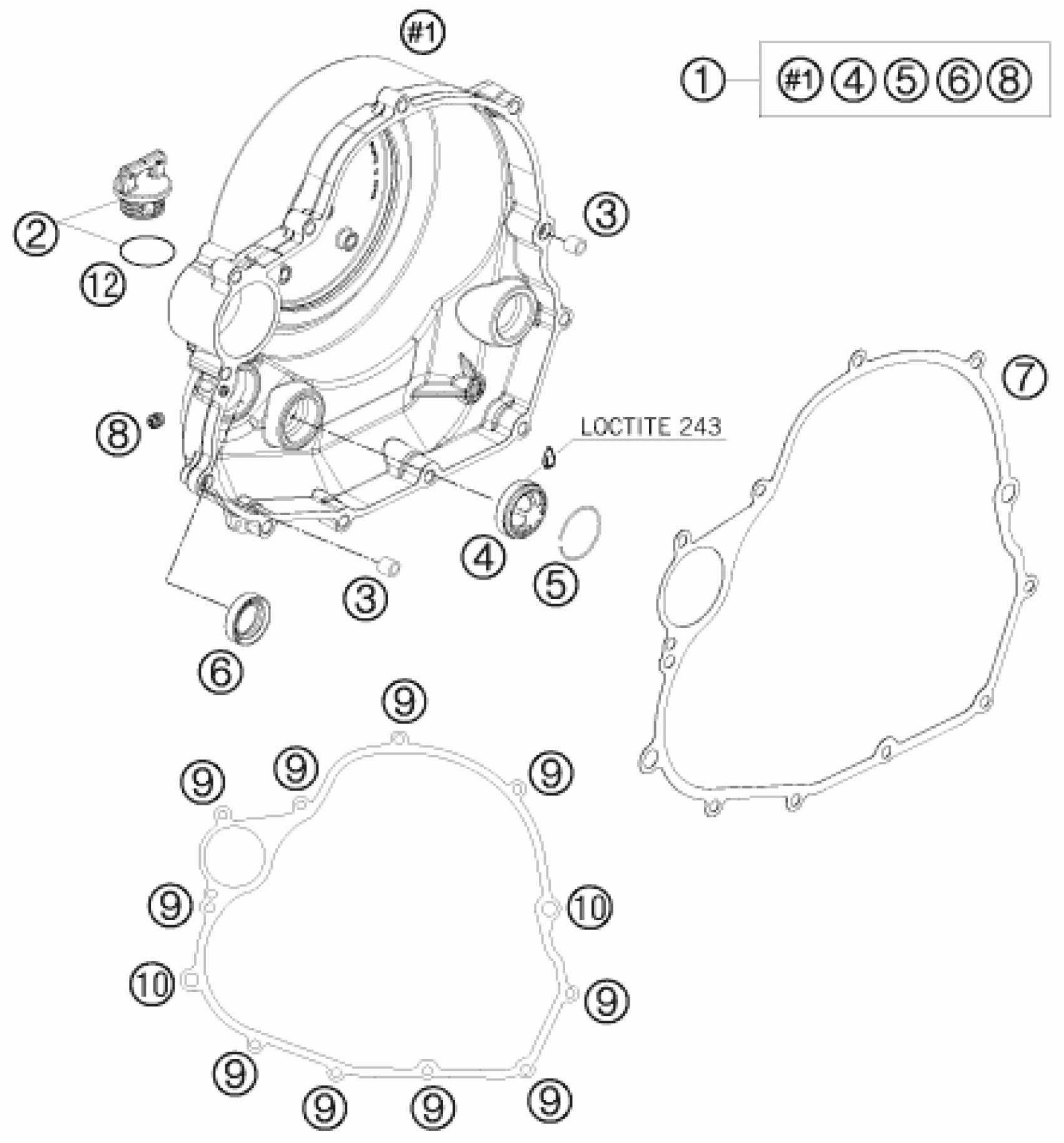

KTM 690 DUKE ORANGE 2008 CLUTCH COVER Diagram

CLUTCH COVER CPL. 07

75030001044

$262.07

oil plug cpl. M24x3

58030020100

$5.23

DOWEL 9,8 X 7 X 10

49030090000

$2.05

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

SHAFT SEAL RING 17X28X7B VITON

0760172871

$5.70

CLUTCH CASE GASKET 07

75030025000

$19.53

PLUG 00

59030196000

$1.49

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

O-RING 19,00X3,00 NBR

0770191015

$2.05
