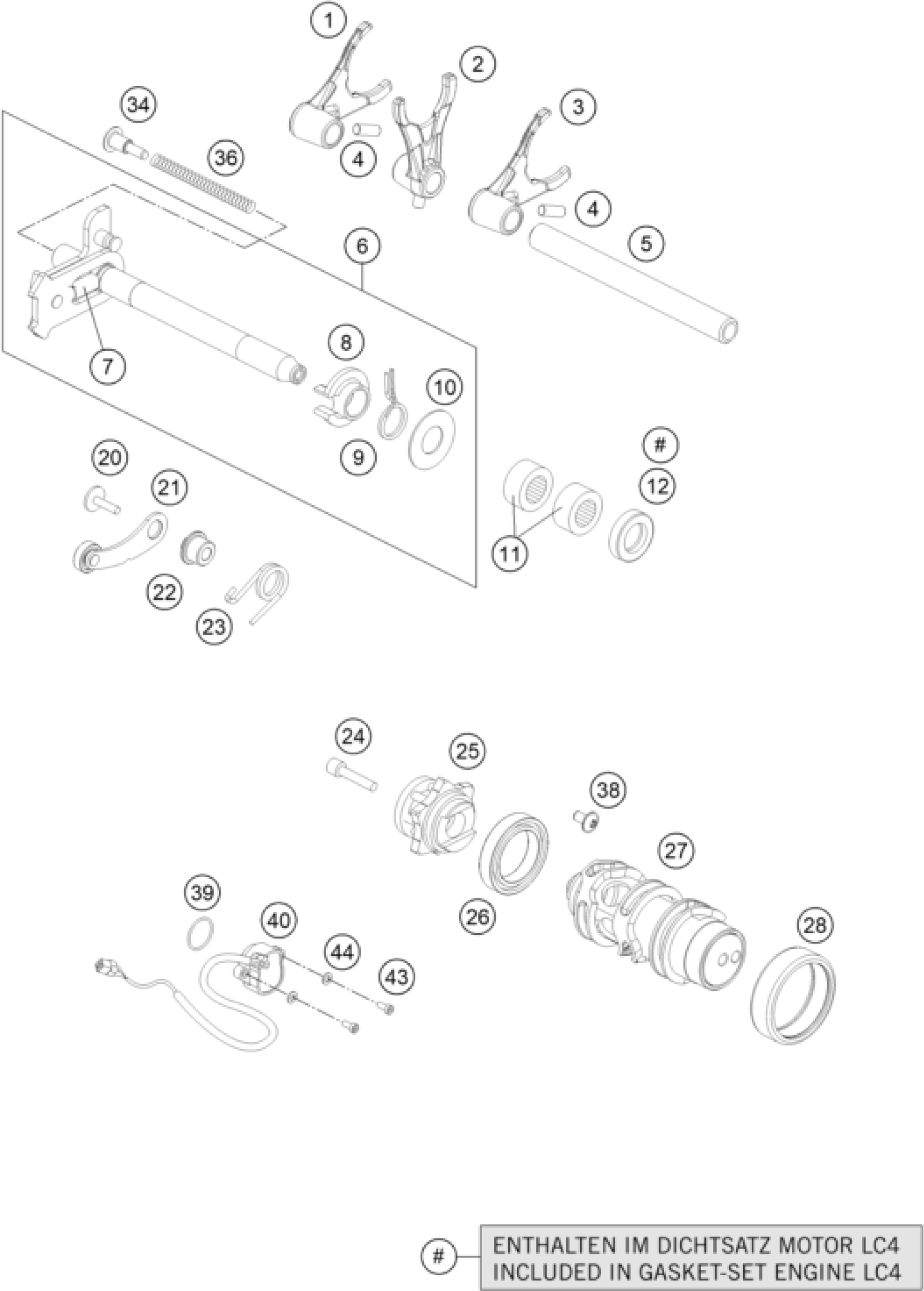

KTM 690 DUKE BLACK ABS 2015 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT FORK F. SLIDINGGEAR 5 12

75034002100

Unavailable

2

SHIFT FORK F. SLIDINGG. 3/4 12

75034001100

Unavailable

3

SHIFT FORK F. SLIDINGGEAR 6 12

75034003100

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFTRAIL 07

75034019000

Unavailable

6

SHIFT SHAFT ASSY

75034005133

Unavailable

7

TENSIONING SPRING 0,8MM

56534013100

Unavailable

8

SPRING GUIDE

54634120000

Unavailable

9

RETURN SPRING 2,2MM '95

54634014100

Unavailable

10

STOP DISK 14X30X1,5 STEEL

75034050000

Unavailable

11

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

12

radial shaft seal 14x24x6 B

0760142460

Unavailable

20

HH collar screw M6x20 TX30

0024060206

Unavailable

21

LOCKING LEVER CPL. 07

75034024044

Unavailable

22

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

23

ARRESTING LEVER SPRING 03

60034023000

Unavailable

24

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

25

SHIFT DRUM LOCATING CPL. 07

75034015000

Unavailable

26

BALL BEARING 61805 C3

0625618050

Unavailable

27

SHIFTING DRUM CPL.

76034112044

Unavailable

28

NEEDLE BEAR HK3512 35X42X12

0618354212

Unavailable

34

SPACER

75034006000

Unavailable

36

SPRING FOR OPERATING SHAFT

75034007000

Unavailable

38

FLAT HEAD SCREW ISO7380 M5X10

073800501001

Unavailable

39

o-ring 24.00x2.50 Viton

07700240251

Unavailable

40

GEAR-POSITION SENSOR

60211023100

Unavailable

43

CYL. SCREW DIN6912 M5X16 8.8

0984050163S

Unavailable

44

WASHER DIN0125-A 5,3

0125050003

Unavailable
