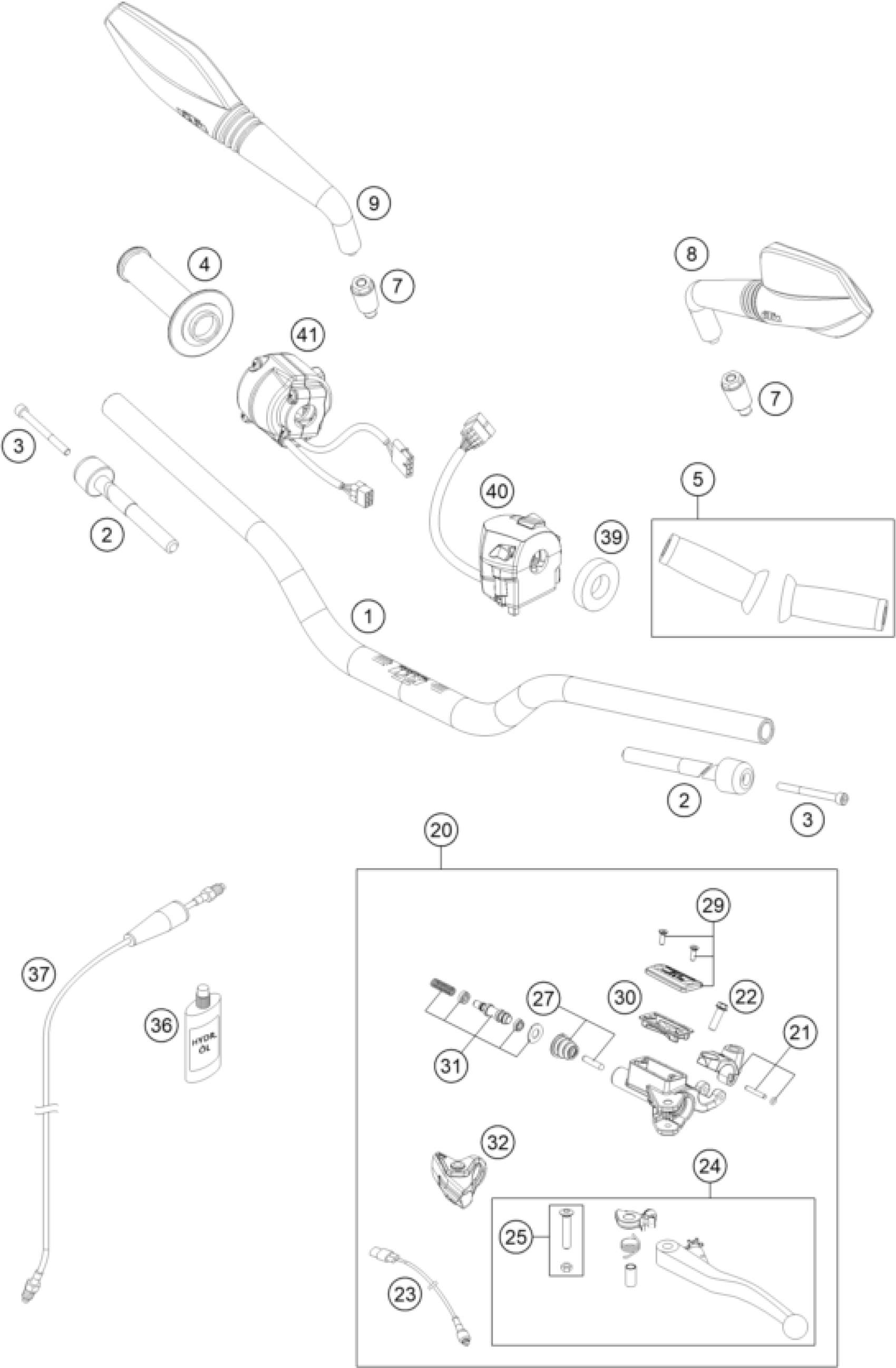

KTM 690 DUKE BLACK ABS 2015 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR D= 28MM

76002001000

Unavailable

2

handlebar weight

61002004000

Unavailable

3

SHCS DIN 912 M6x65

0912060653

Unavailable

4

THROTTLE GRIP

76002010000

Unavailable

5

GRIP SET OPEN END

76002021000

Unavailable

7

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

8

REVIEW MIRROR L/S 07

61112040000

Unavailable

9

REVIEW MIRROR R/S 07

61112041000

Unavailable

20

MASTER CYLINDER MAGURA D=11MM

76502013000

Unavailable

21

CLAMP, CYL. PIN, O-RING

76513005000

Unavailable

22

HH collar screw M6x20 TX30

0025060206

Unavailable

23

CLUTCH SWITCH ATV

83111049000

Unavailable

24

CLUTCH LEVER CPL. LONG 13

76502031000

Unavailable

25

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

27

PUSH ROD CPL. 13

76502046000

Unavailable

29

COVER HYDR. CLUTCH CPL. 13

76502033000

Unavailable

30

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

31

REP. KIT PISTON 11MM 13

76502032000

Unavailable

32

PROTECT.CAP FOR LEVER PERCH 13

76502037000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

CLUTCH PIPE 1100MM

76032063000

Unavailable

39

DISTANCE RING LIGHT SWITCH

76002056000

Unavailable

40

LIGHT SWITCH 14

76011070100

Unavailable

41

START-STOP/E-GAS

76011073100

Unavailable
