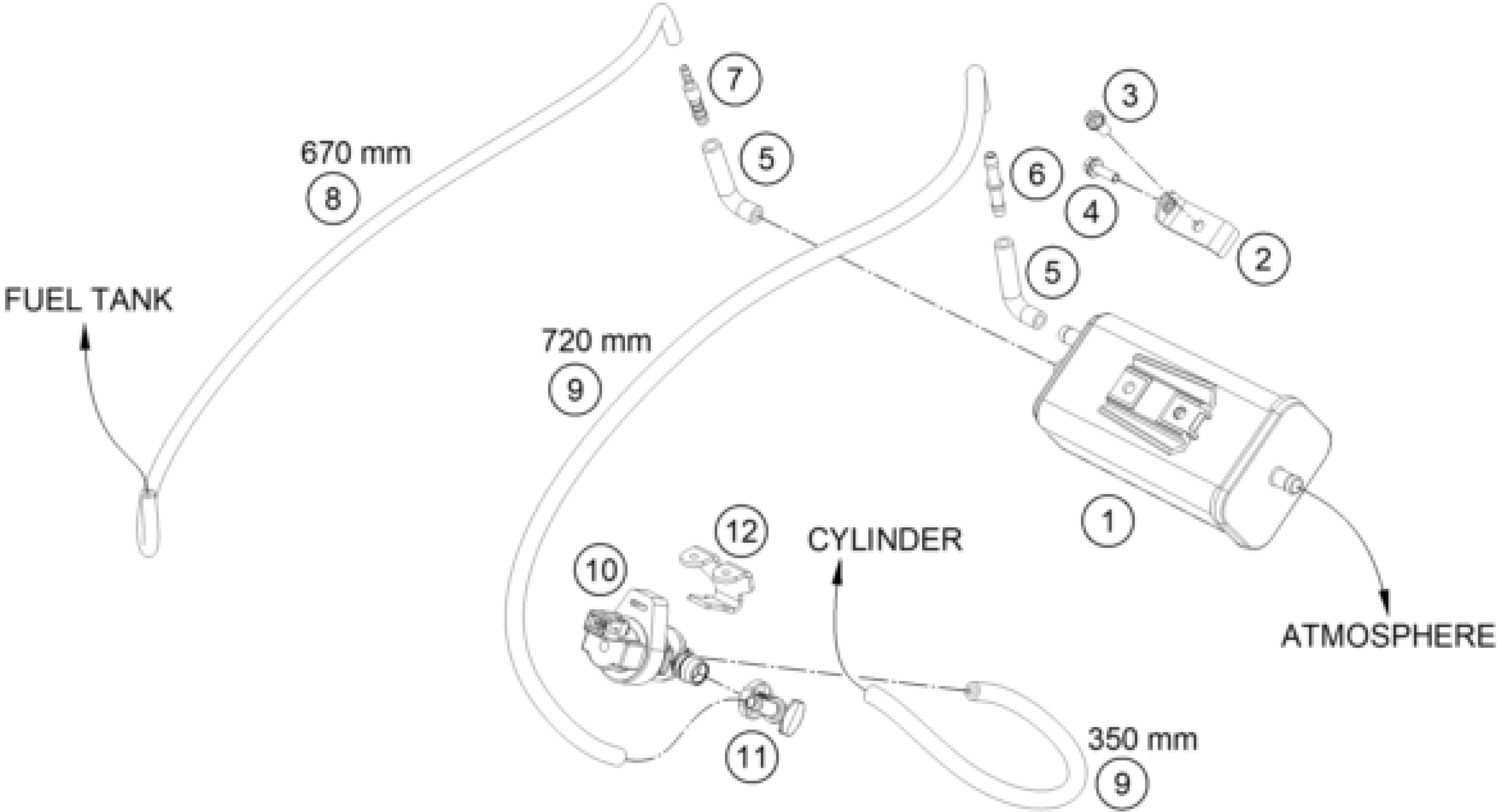

KTM 690 DUKE BLACK ABS 2014 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

EVAPORATIVE CANISTER 09

75015001100

Unavailable

2

BRACKET EVAP. CANISTER

76015002000

Unavailable

3

HH collar screw M6x12 TX30

0025060126

Unavailable

4

HH collar screw M5x16 TX30

0025050166

Unavailable

5

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

6

HOSE CONNECTOR GS6 03

60015021000

Unavailable

7

REDUCTION CONNECTION GRS6-4

75015023000

Unavailable

8

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

9

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

10

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

11

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

12

BRACKET PURGE VALVE

76011047000

Unavailable
