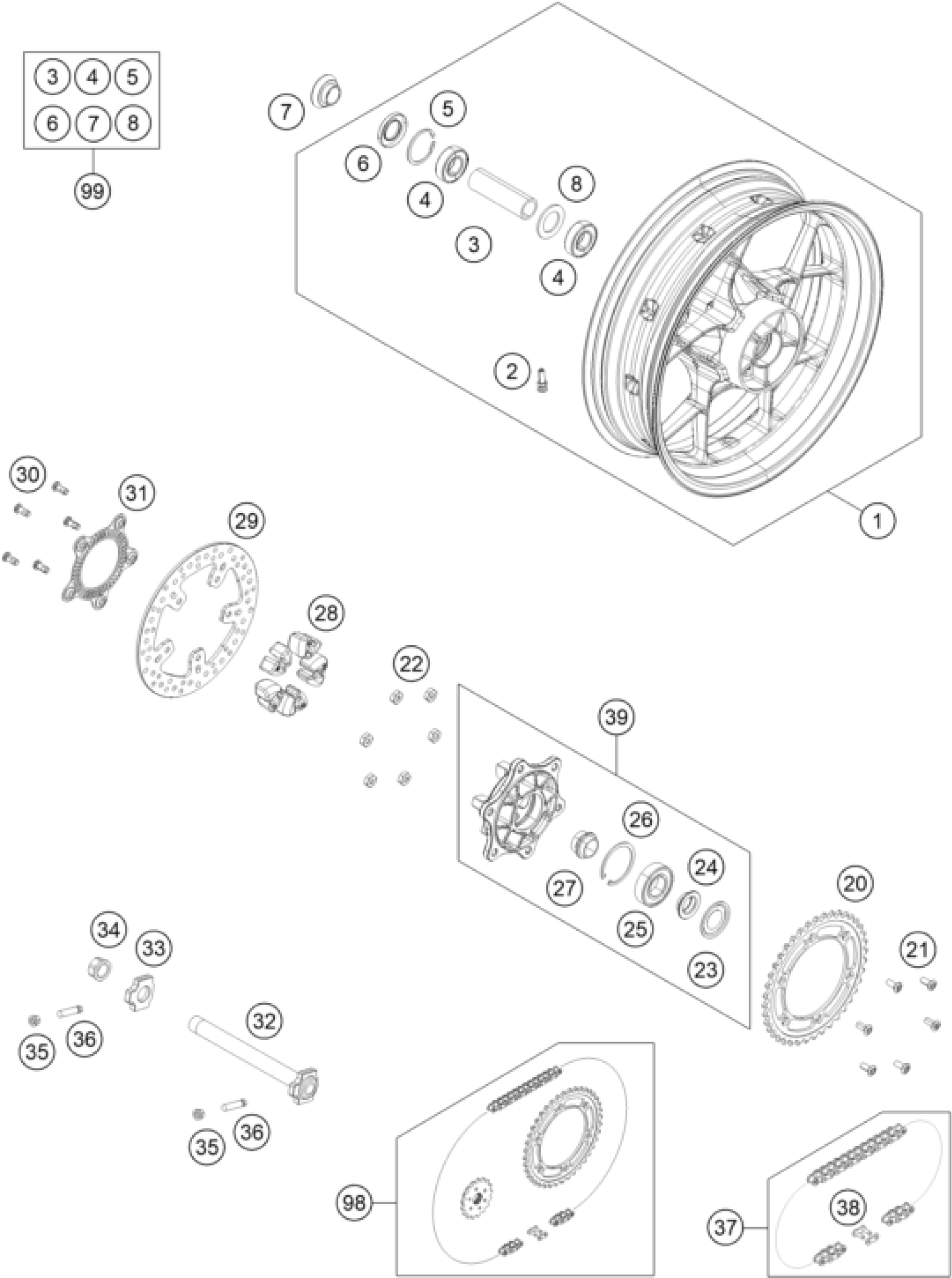

KTM 690 DUKE BLACK ABS 2014 REAR WHEEL Diagram

#

Description

Price

1

REAR WHEEL CPL. 5X17'' BLACK

7601000104430

$506.39

2

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

3

BEARING SPACER TUBE L=106MM 07

75310011000

$21.40

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

20

SPROCKET STEALTH 40T 07

75010051040

$70.12

21

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

22

HEX NUT M8 WS17

76010057000

$4.11

23

NILOS RING 6206AV

76010020000

$6.35

24

OUTER DISTANCE BUSHING

76010012000

$18.41

25

BALL BEARING 6206 TNH C3

0625062060

Unavailable

26

Steering Insert Circlip

0472062200

$2.05

27

INNER DISTANCE BUSHING

76010014000

$20.09

28

DAMPING RUBBER

76010059100

$7.38

29

BRAKE DISC REAR 240MM

76010060000

$137.53

30

Special screw M8X25 SL TX40

76009062000

$2.05

31

Sensor wheel rear

76042021000

$35.24

32

WHEEL SPINDLE REAR CPL.

75010085144

$90.59

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

screw M10x1.25x50 WS10

50304040100

$5.23

37

chain DID 118 roll

76910065118

$128.83

38

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

39

SPROCKET SUPPORT CPL.

7601005004433

$201.39

98

DRIVETRAIN KIT 690DUKE 16T/40T

00050002025

Unavailable

99

REAR WHEEL REPAIR KIT DUKE

76010015000

Unavailable
