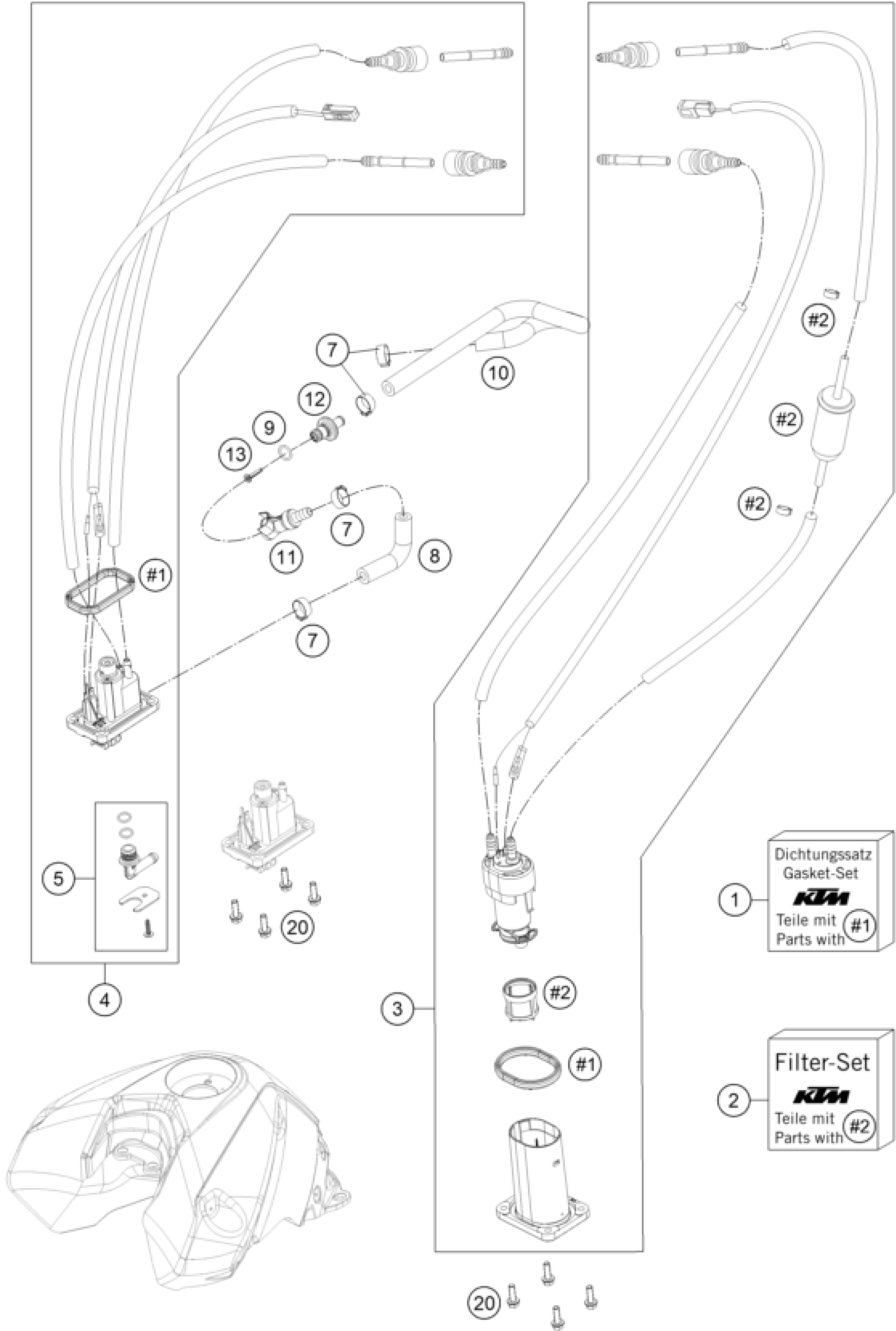

KTM 690 DUKE BLACK ABS 2014 FUEL PUMP Diagram

#

Description

Price

1

SEALINGS KIT

75007089000

$82.36

2

FILTER KIT

75007090000

$74.04

3

FUEL PUMP WITH FLANGE CPL.

75007088011

$585.96

4

PRESSURE REGULATOR CPL. 07

75007088012

$257.86

5

HYDRAULIC CONNECTOR CPL.

75007092000

$56.84

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

8

FUEL HOSE 08

62507116070

$14.67

9

O-ring VITON f. plug CPC 0

58507012000

$6.26

10

FUEL HOSE 7,5X3,5 L=120

60007316120

$5.51

11

Clutch CPC PLCD17005, black

5850701050030

$55.90

12

Fuel connection

77707010000

$15.14

20

HH collar screw M5x16 TX30

0025050166

$2.05

13

FUEL FILTER

78141013190

$9.53
