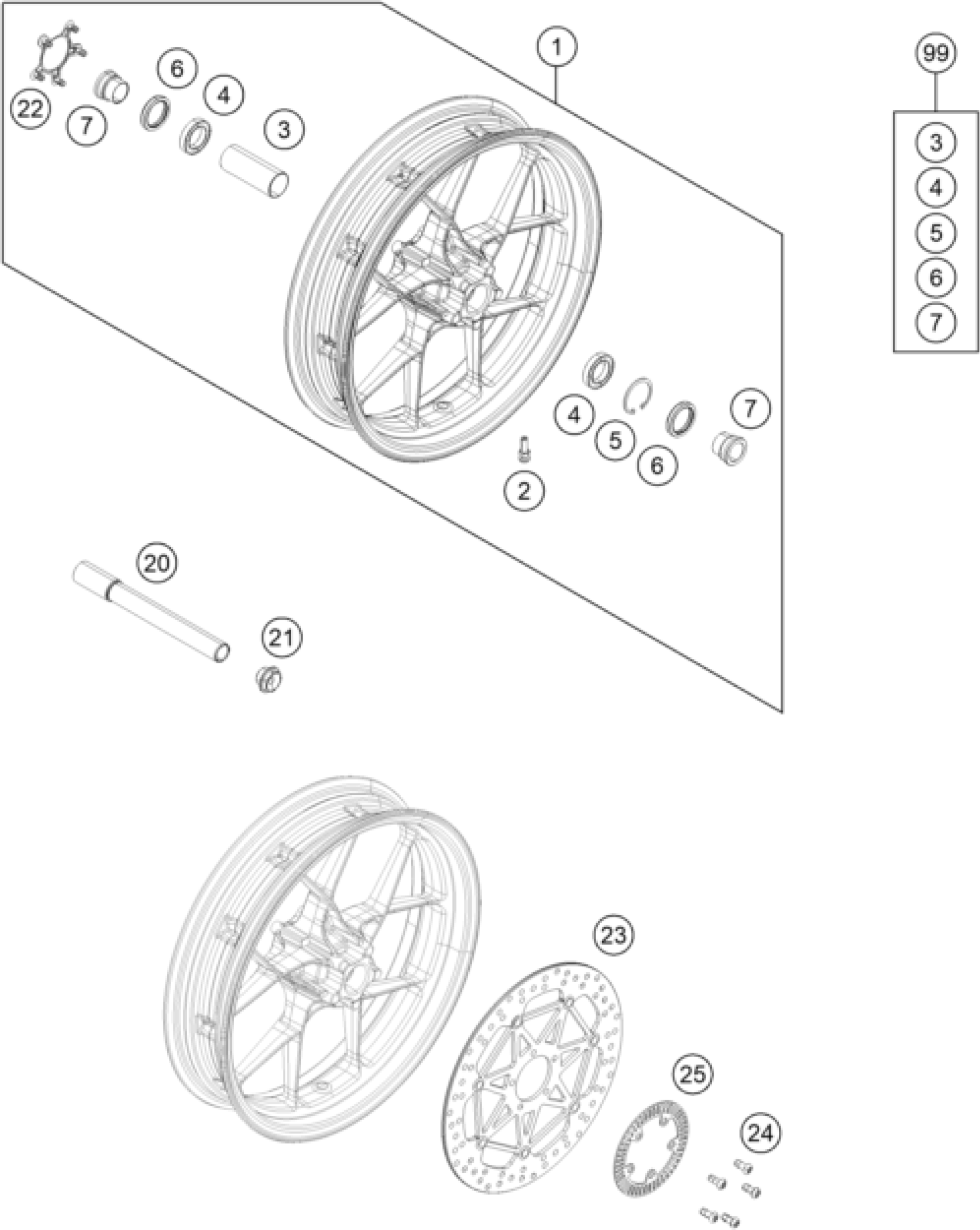

KTM 690 DUKE BLACK ABS 2014 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL. 3,5X17''

7600900104430

$310.41

2

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

3

Bearing spacing tube, front

61009011000

$22.81

4

Grooved ball bearing 6906

0625069068

$34.68

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSHING F. FR. WHEEL 08

78009012000

$30.10

20

WHEEL SPINDLE FRONT D=26MM 07

75009081000

$80.78

21

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

22

COVER BRAKE DISC SEAT

76009001010

$8.13

23

BRAKE DISK D=320

7600906000033

$335.38

24

Special screw M8X25 SL TX40

76009062000

$2.05

25

Phonic wheel, front

76042020000

$34.59

99

FRONT WHEEL REP. KIT

75609015000

Unavailable
