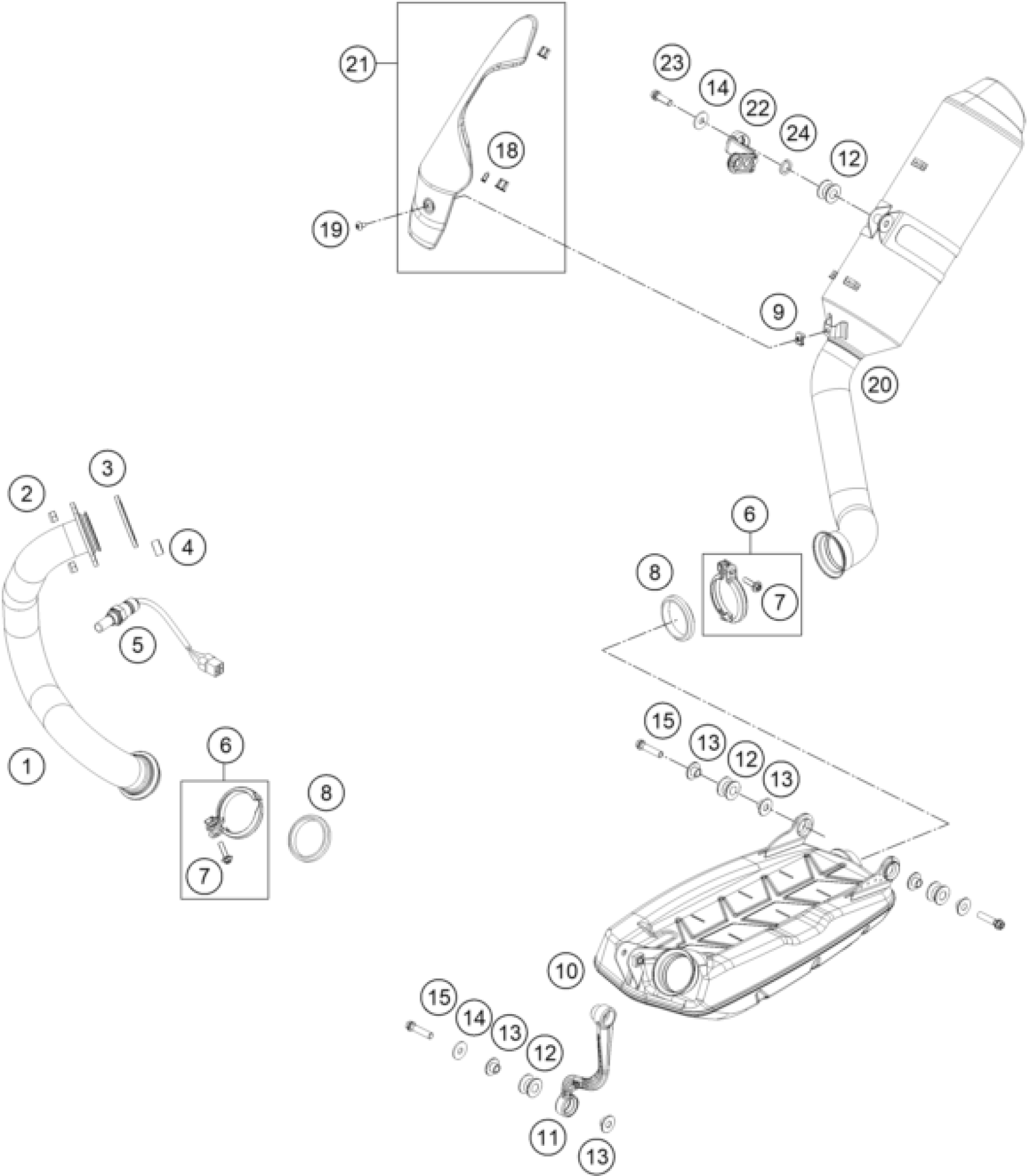

KTM 690 DUKE BLACK ABS 2014 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST MANIFOLD

76005007000

$300.73

2

self-locking nut M8 Cu

51010086100

$3.08

3

Exhaust gasket 05

61005005000

$10.00

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

5

LAMBDA SENSOR 07

75041090000

$171.19

6

CLAMP CPL.

69005050000

$24.58

7

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

8

MANIFOLD GASKET

69005005005

$16.82

10

PRE-SILENCER

76005050100

$1,127.27

11

BRACKET F. SILENCER

7560501410001

$52.63

12

damp. component silicone grey

54305068100

$8.31

13

collar bushing 8.5x12x23.5x10

58405050065

$5.23

14

WASHER DIN9021-A 8,4

0021080003

$1.49

15

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

18

DAMP. COMPON. SILICONE GREY 05

61005091000

$8.31

19

SCREW TORX M5X10

78105081010

$2.05

20

SILENCER

76005083000

Unavailable

21

HEAT SHIELD CPL.

76005011000

$112.85

22

BRACKET F. SILENCER

7600508400001S

$56.56

23

AH collar screw M8x25 ISA45

0035080256

$4.11

24

SHIM 12X8.5X1.5 MM

76005085000

$5.23

9

clip nut M5

69008021080

$3.08
