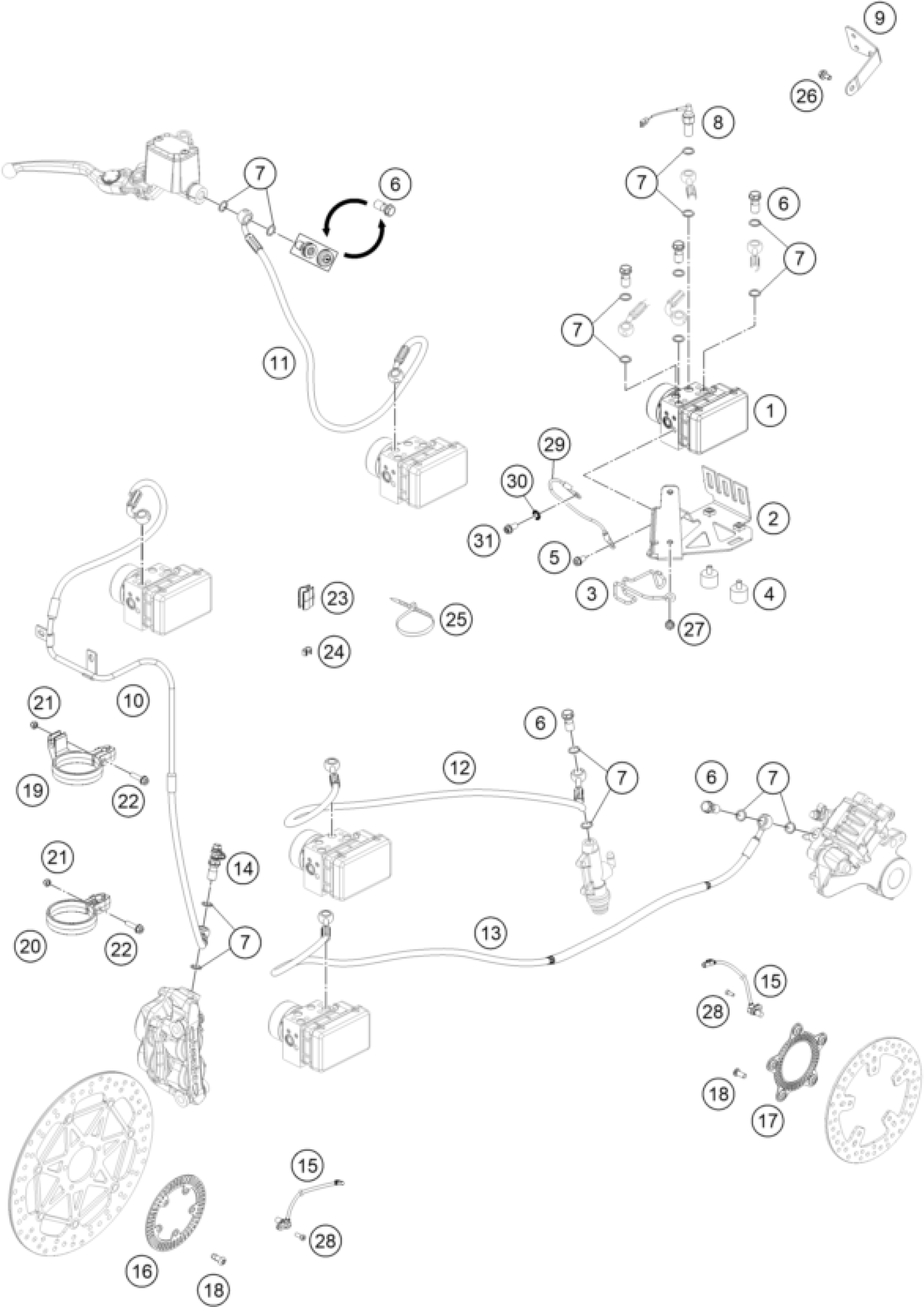

KTM 690 DUKE BLACK ABS 2014 ABS Diagram

#

Description

Price

1

PRESSURE MODULATOR FILLED

76042031044

$2,133.85

2

ABS BRACKET CPL.

76042040000

$59.46

3

BRAKE PIPE GUIDE

76042001050

$5.23

4

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

5

HH collar screw M5x10 TX30

0025050106

$1.49

6

banjo bolt M10x1x19.5

62113020100

$8.78

7

sealing ring DIN 7603 10x14x1

0603100141

$2.05

8

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

9

ABS RELAY BRACKET

76042080050

$5.23

10

BRAKE PIPE

76042001000

$120.89

11

BRAKE PIPE

76042002000

$41.88

12

BRAKE PIPE

76042003000

$43.66

13

BRAKE PIPE

76042004000

$63.66

14

BLEEDER SCREW CPL. 05

62513020000

$27.48

15

ABS-SENSOR

76042025000

$84.89

16

Phonic wheel, front

76042020000

$34.59

17

Sensor wheel rear

76042021000

$35.24

18

Special screw M8X25 SL TX40

76009062000

$2.05

19

CLAMPING BRAKE PIPE

76001071000

$8.13

20

CLAMPING BRAKE PIPE

76001070000

$3.08

21

Self locking nut DIN 985 M5

0985050003

$2.05

22

HH collar screw M5x20 TX30

0025050206

$2.05

23

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

24

CLIP 5/7 MM 06

60111094000

Unavailable

25

Cable tie 200/4.6mm black

44011076200

Unavailable

25

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

26

HH collar screw M6x10 TX30

0025060106

$3.08

27

HH collar screw M6x13 TX30

0024060136

$3.08

28

AH SCREW DIN6912-M 6X16

0984060163

$2.05

29

Ground cable LC4 ABS

76011097050

$4.11

30

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

31

HH collar screw M6x12 TX30

0025060126

$3.08
