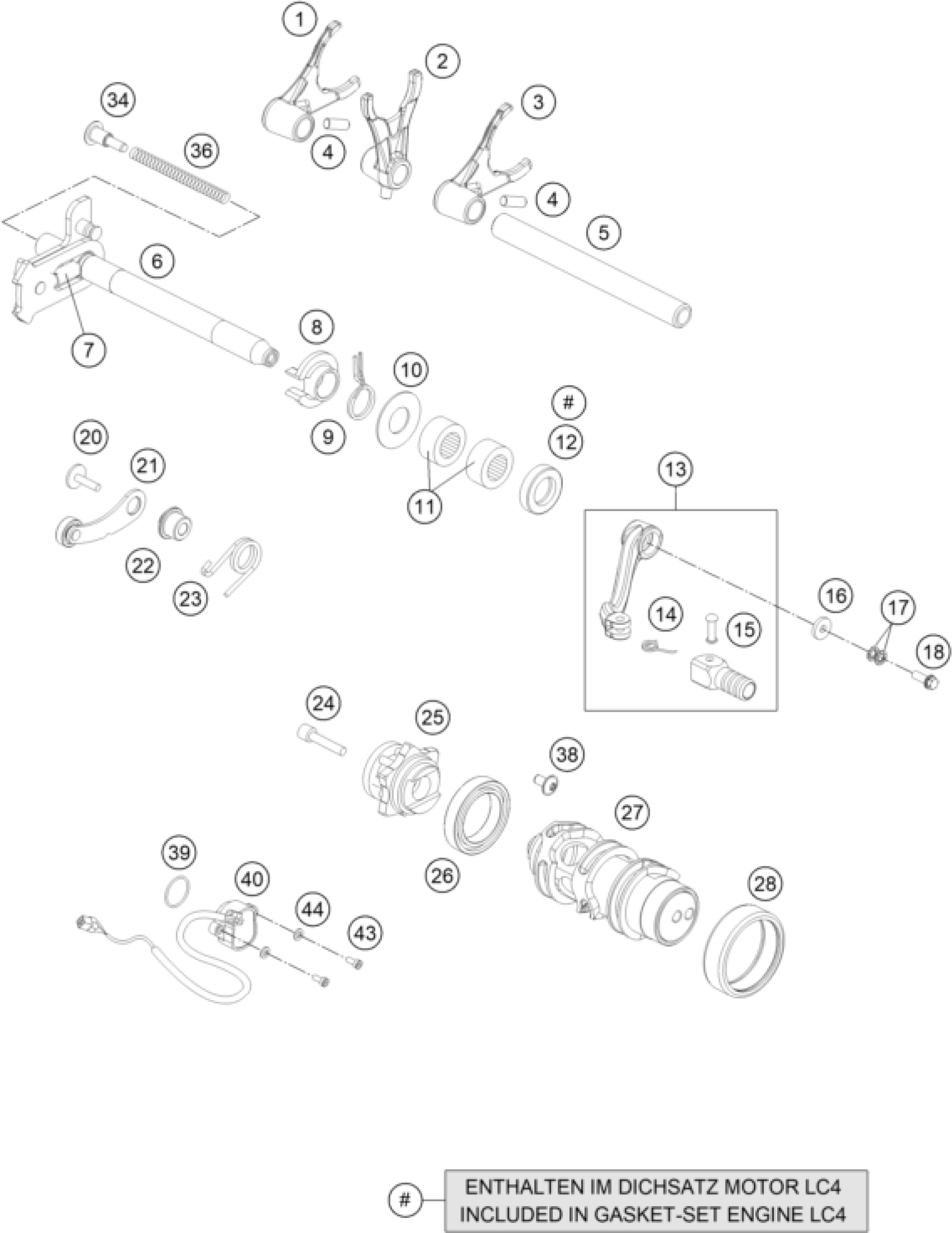

KTM 690 DUKE BLACK ABS 2013 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT FORK F. SLIDINGGEAR 5 12

75034002100

Unavailable

2

SHIFT FORK F. SLIDINGG. 3/4 12

75034001100

Unavailable

3

SHIFT FORK F. SLIDINGGEAR 6 12

75034003100

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFTRAIL 07

75034019000

Unavailable

6

SHIFT SHAFT CPL. 07

75034005044

Unavailable

7

TENSIONING SPRING 0,8MM

56534113100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

RETURN SPRING 03

54834014000

Unavailable

10

STOP DISK 14X30X1,5 STEEL

75034050000

Unavailable

11

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

12

radial shaft seal 14x24x6 B

0760142460

Unavailable

20

HH collar screw M6x20 TX30

0024060206

Unavailable

21

LOCKING LEVER CPL. 07

75034024044

Unavailable

22

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

23

ARRESTING LEVER SPRING 03

60034023000

Unavailable

24

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

25

SHIFT DRUM LOCATING CPL. 07

75034015000

Unavailable

26

BALL BEARING 61805 C3

0625618050

Unavailable

27

SHIFTING DRUM CPL.

76034112044

Unavailable

28

NEEDLE BEAR HK3512 35X42X12

0618354212

Unavailable

34

SPACER

75034006000

Unavailable

36

SPRING FOR OPERATING SHAFT

75034007000

Unavailable

38

FLAT HEAD SCREW ISO7380 M5X10

073800501001

Unavailable

39

O-RING 25,30X2,40 NBR70

0770253240

Unavailable

40

GEAR-POSITION SENSOR

60211023100

Unavailable

43

CYL. SCREW DIN6912 M5X16 8.8

0984050163S

Unavailable

44

WASHER DIN0125-A 5,3

0125050003

Unavailable

13

SHIFT LEVER CPL. 07

75034031000

Unavailable

14

SHIFTING LEVER SPRING

75034032000

Unavailable

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

16

STEEL WASHER 6,4X17X3

50232050001

Unavailable

17

Pair of washers M6 NORDLOCK

50233041000

Unavailable

18

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable
