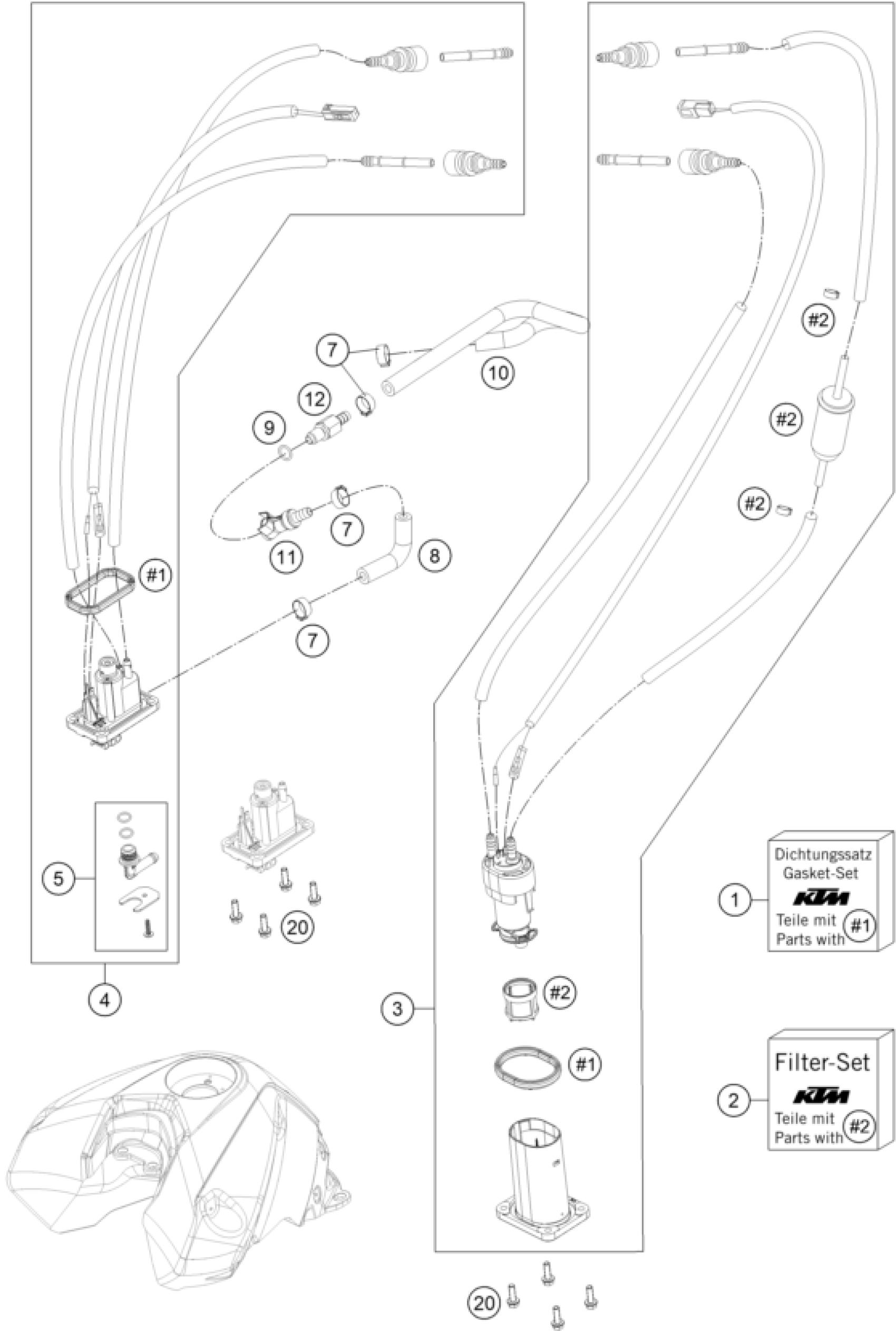

KTM 690 DUKE BLACK ABS 2013 FUEL PUMP Diagram

#

Description

Price

1

SEALINGS KIT

75007089000

Unavailable

2

FILTER KIT

75007090000

Unavailable

3

FUEL PUMP WITH FLANGE CPL.

75007088011

Unavailable

4

PRESSURE REGULATOR CPL. 07

75007088012

Unavailable

5

HYDRAULIC CONNECTOR CPL.

75007092000

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

8

FUEL HOSE 08

62507116070

Unavailable

9

O-ring VITON f. plug CPC 0

58507012000

Unavailable

10

FUEL HOSE 7,5X3,5

76007016010

Unavailable

20

HH collar screw M5x16 TX30

0025050166

Unavailable

11

Clutch CPC PLCD17005, black

5850701050030

Unavailable

12

Plug CPC black 05

5850701030030

Unavailable
