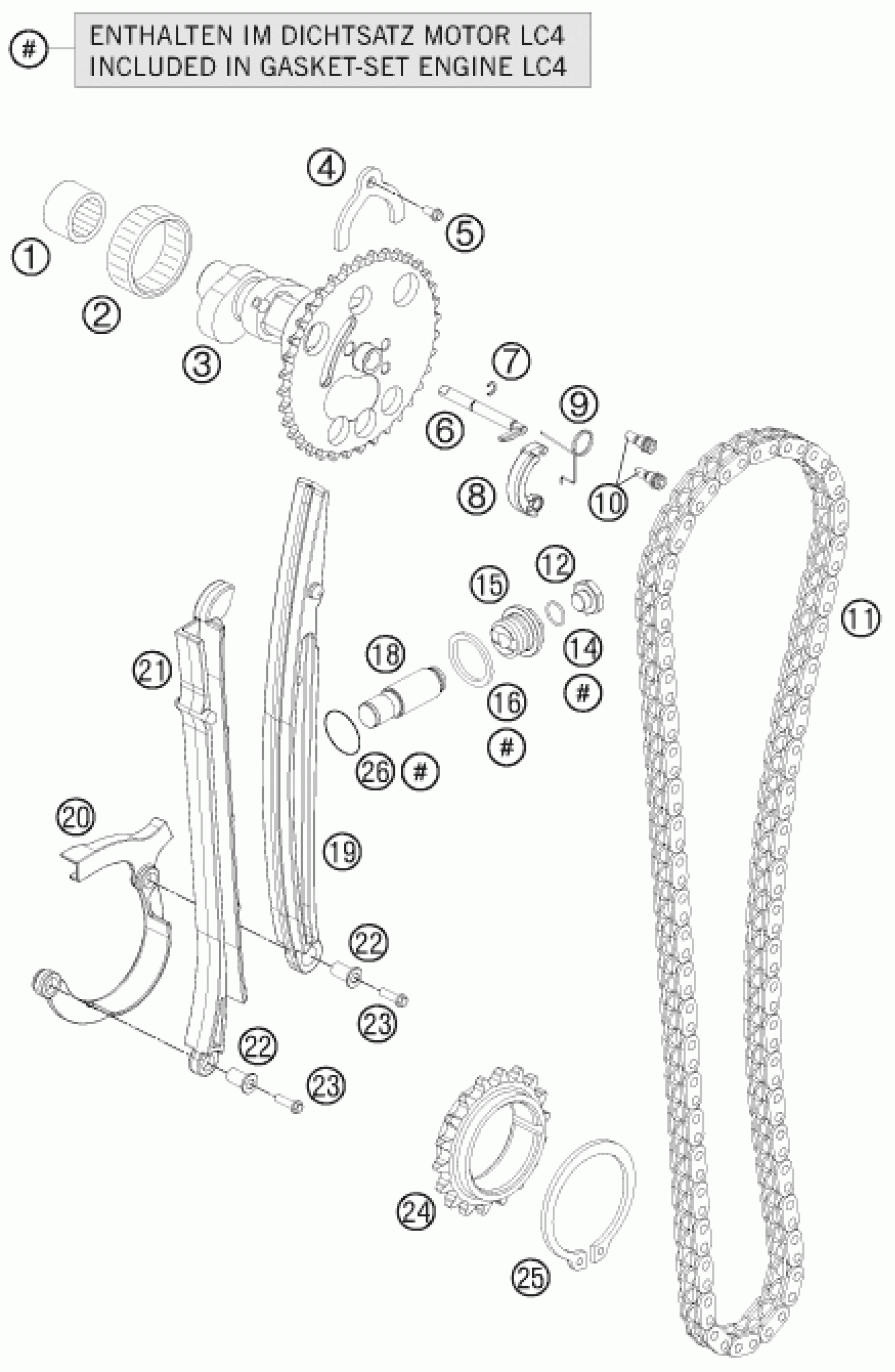

KTM 690 DUKE BLACK 2012 TIMING DRIVE Diagram

#

Description

Price

1

NEEDLE SLEEVE HK1814RS18/24/14

0618182414

$9.06

2

NEEDLE SLEEVE HK4012B40X47X12

0618404712

$11.02

3

CAMSHAFT

76536010100

$295.73

4

CAMSHAFT HOLDER 07

75036010050

$5.88

5

HH collar screw M6x12 TX30

0025060126

$3.08

6

AUTO DECOMPRESSION 07

75036016000

$18.41

7

HALF MOON RING H6-BLS 07

75036016050

$1.49

8

AUTO DECO WEIGHT 07

75036015000

$15.98

9

SPRING FOR AUTO DECOMPR. 07

75036017000

$16.17

10

DECO SCREW 07

75036019000

$10.65

11

TIMING CHAIN

76036013000

$48.33

12

HOLDING BOLT

77336008010

$8.31

14

o-ring 10.00x1.00 NBR70

0770010010

$2.05

15

SCREW PLUG CHAIN ADJ. 07

75036008000

$14.67

16

CU SEAL-RING 20X27X1

0603202702

$4.11

18

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

19

TENSIONER RAIL 07

75036002000

$11.59

20

SECURING GUIDE 07

75036018000

$3.08

21

GUIDE RAIL 07

75036001000

$6.54

22

SUPPORTING SLEEVE 07

75036018050

$5.23

23

HH collar screw M6x30 TX30

0025060306S

$3.08

24

TIMING PINION

75036014100

$21.78

25

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

$7.56

26

o-ring 18.00x2.00 NBR70

0770180020

$2.05
