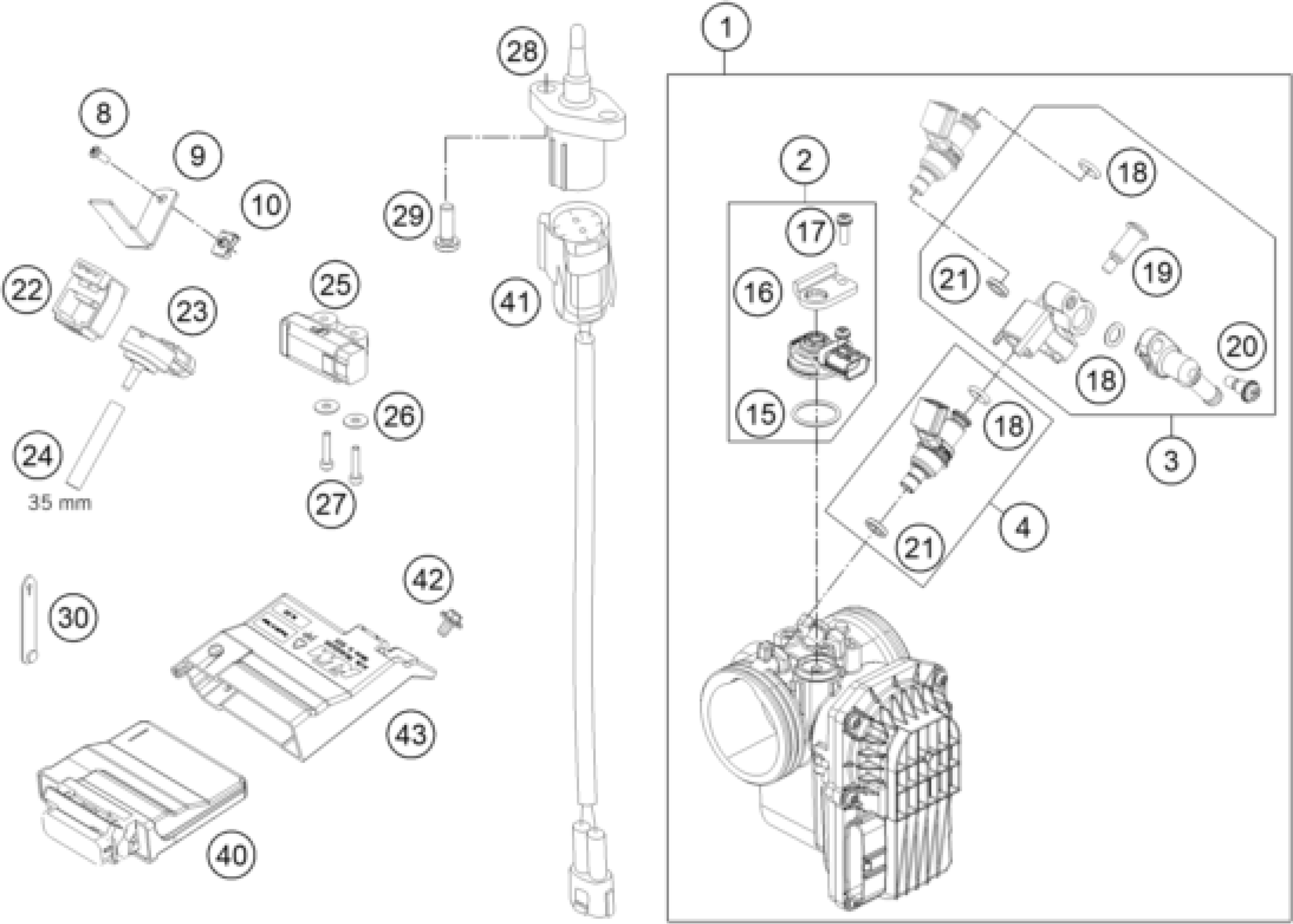

KTM 690 DUKE BLACK 2012 THROTTLE BODY Diagram

#

Description

Price

43

TIMING CHARGER EFI HOLDER

76041029000

Unavailable

30

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

8

SCREW TORX M5X10

78105081010

Unavailable

9

PRESSURE SENSOR HOLDER

76003001077

Unavailable

10

clip nut M5

69008021080

Unavailable

1

THROTTLE BODY

76041001000

Unavailable

2

MAP SENSOR CPL. 07

75041085044

Unavailable

3

FUEL RAIL ASSY SET 07

75041013044

Unavailable

4

FUEL INJECTOR ASSY SET

76041023044

Unavailable

15

O-RING

75041085010

Unavailable

16

PLATE, STAY

75041085020

Unavailable

17

SCREW WASHER

75041085030

Unavailable

18

O-RING 7,2x2,2

75041023020

Unavailable

19

SCREW SHOULDER

75041013060

Unavailable

20

SCREW SHOULDER

75041013010

Unavailable

21

SEAL RING

75041023010

Unavailable

22

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

23

PRESSURE SENSOR 06

61041085100

Unavailable

24

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

25

ROLLOVER SENSOR 05

61041088000

Unavailable

26

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

Unavailable

27

AH SCREW DIN0912-M 4X25

0912040253

Unavailable

28

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

29

INT. TORX OVAL HEAD M5X16

0018050163

Unavailable

40

ELECTRONIC CONTROL UNIT

76041031000

Unavailable

41

AMBIENT-AIR TEMP. SENSOR CABLE

76011048000

Unavailable

42

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable
