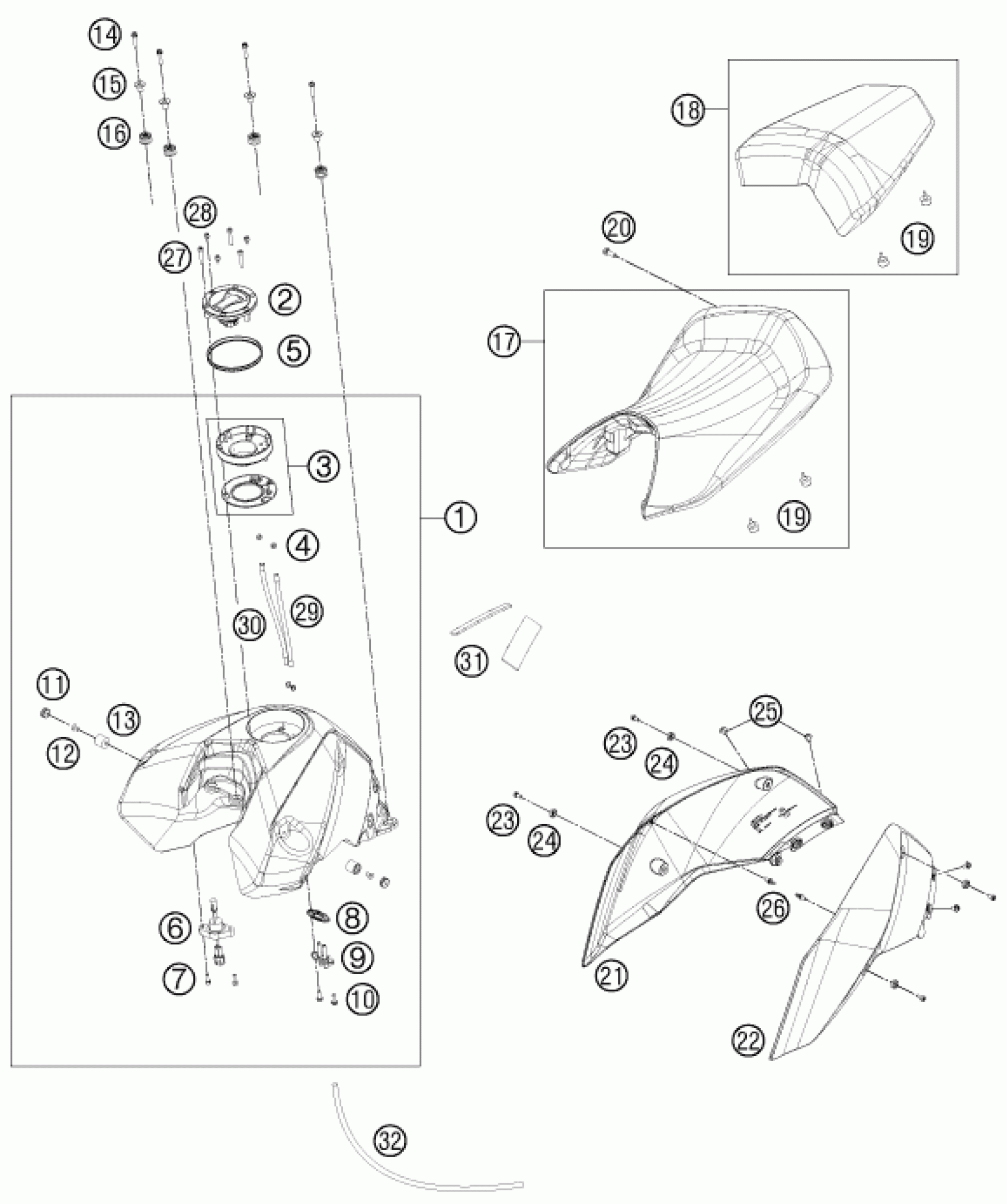

KTM 690 DUKE BLACK 2012 TANK, SEAT Diagram

#

Description

Price

29

TUBE VENTILATION

76007013010

$6.35

30

HOSE EVAPORATIVE CANISTER

76007013020

$12.15

5

GASKET TANK PLUG

76007008052

$5.23

6

GAS-LEVEL SENSOR 06

61007080000

$81.06

7

AH collar screw DIN 912 M5x16

0912050163

$1.49

8

GASKET

76007027050

$5.23

9

CONNECTION

76007027000

$6.07

10

HH collar screw M5x16 TX30

0025050166

$2.05

11

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2.05

12

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

13

BUSHING 13X20X18,5MM

76008052000

$7.94

14

HH collar screw M6x25 TX30

0025060256

$3.08

15

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

16

rubber grommet, tank mounting

69007027000

$3.08

17

SEAT LOW

76007140000

$206.44

18

SEAT SOZIUS

76007047000

$116.68

19

SEAT RUBBER 10 MM

75007046010

$3.08

20

AH collar screw M8x25 ISA45

0035080256

$4.11

21

SPOILER R/S BLACK

7600805100030

$33.28

22

SPOILER L/S BLACK

7600805000030

$34.31

23

SHCS ISO 14580 M6x12

014580060126

$2.05

24

SPECIAL WASHER

61108045000

$4.11

25

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

26

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

27

AH SCREW DIN0912-M 5X30

0912050303

$1.49

28

SHCS DIN 912 M5x8

0912050083

$1.49

4

CLAMP OETIKER 8.6MM

76007013090

$1.49

1

FUEL TANK CPL. BLACK-MATT

7600701304433A

$1,141.35

2

TANK PLUG

76007008000

$100.88

3

TANK INSERT CPL.

76007008060

$47.96

31

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

32

HOSE 5,4X9,4 NBR

76007113001

Unavailable
