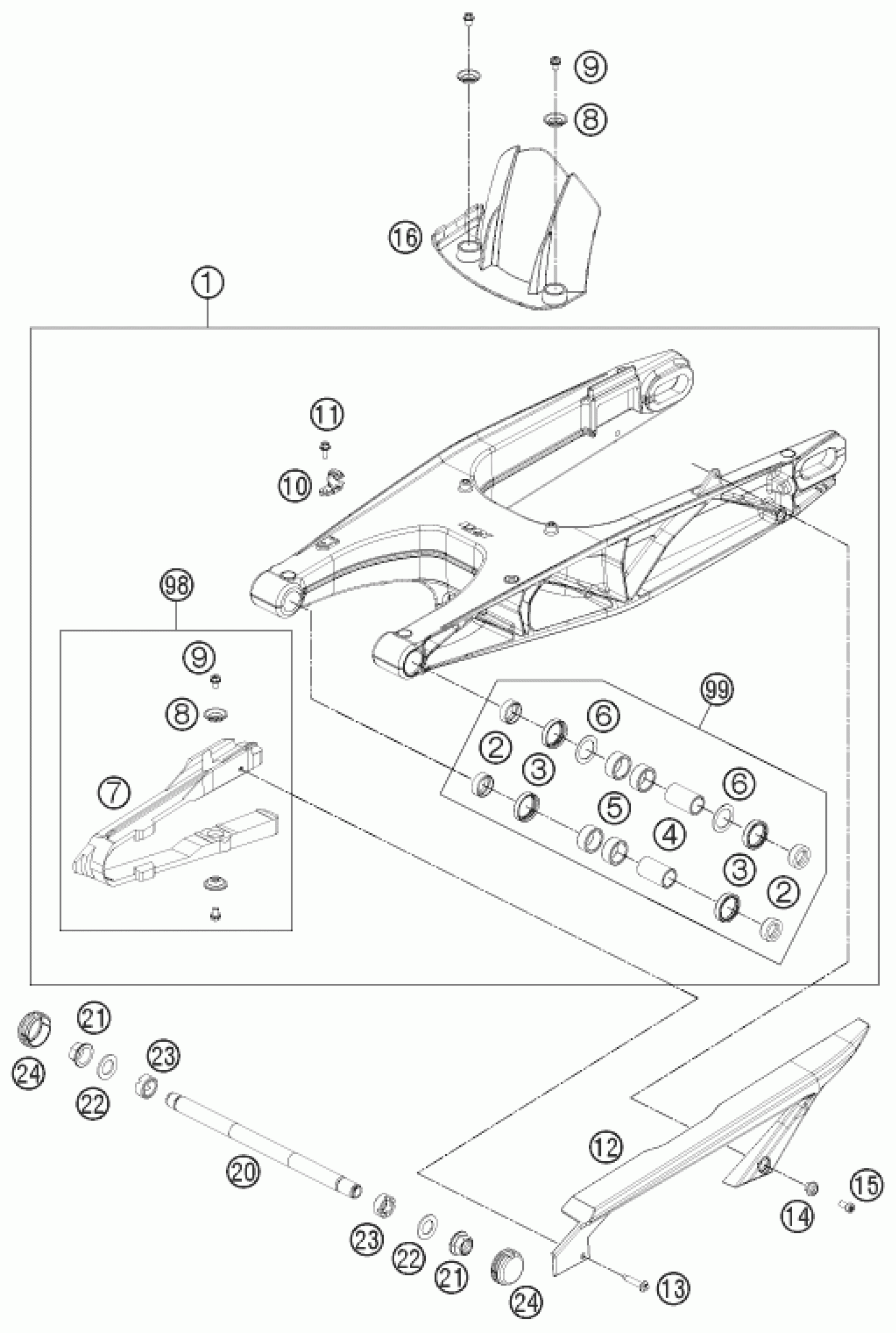

KTM 690 DUKE BLACK 2012 SWING ARM Diagram

#

Description

Price

3

radial shaft seal 25x32x7

0760253270

Unavailable

2

Bucket f. shaft seal ring 03

54804034000

Unavailable

5

NEEDLE BUSH HK2212V

59004031200

Unavailable

1

SWING SM CPL. 07

7500403004433

Unavailable

4

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

6

STOP DISK 22,2X31,7X1

54603036000

Unavailable

7

CHAIN SLIDING PROTECTION 07

75004066000

Unavailable

8

BUCKET

72210079000

Unavailable

9

HH collar screw M6x8 TX30

0025060086

Unavailable

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

Unavailable

11

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

12

CHAIN GUARD

75004060000

Unavailable

13

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

14

BUSHING MUD FLAP 07

75001094010

Unavailable

15

SHCS ISO 14580 M6x12

014580060126

Unavailable

16

MUD FLAP 07

75004050000

Unavailable

20

SWING ARM BOLT L=272MM 07

75004037000

Unavailable

21

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

22

WASHER 07

75004042000

Unavailable

23

ADJUSTING RING M24X1 , 5 07

75004046000

Unavailable

24

PLASTIC CAP 07

75003088000

Unavailable

98

CHAIN GUARD KIT

75004066010

Unavailable

99

SWINGARM REP. KIT

54804230010

Unavailable
