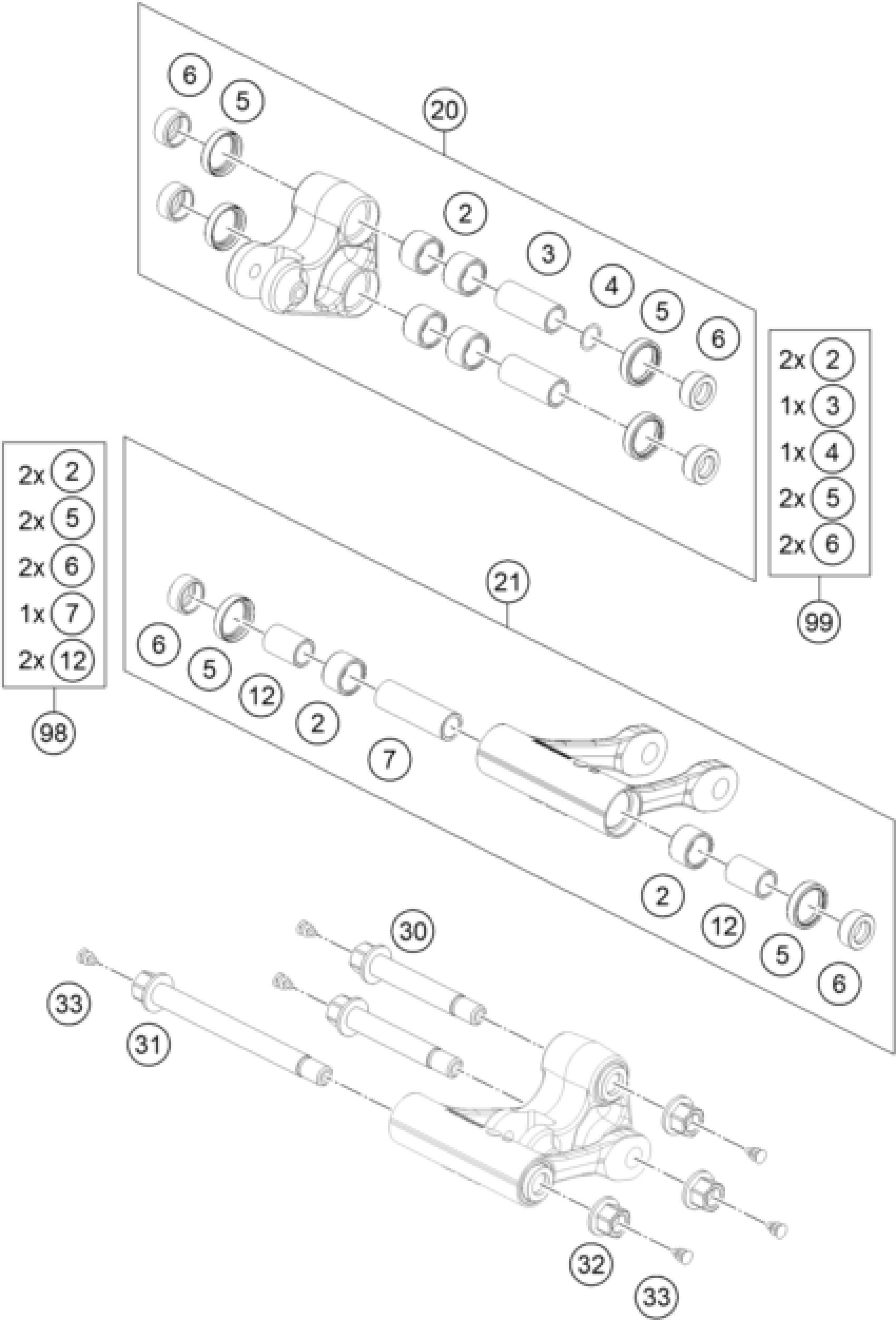

KTM 690 DUKE BLACK 2012 PRO LEVER LINKING Diagram

#

Description

Price

4

Steel washer 15.2x19x0.1

54603090010

Unavailable

4

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

98

PULL ROD REP. KIT 690 DUKE

75004083010

Unavailable

99

TRIANGLE LEVER REP. KIT REAR

75004080100

Unavailable

2

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

3

Bushing sleeve 15x20x48

54603081000

Unavailable

4

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

5

radial shaft seal 25x32x7

0760253270

Unavailable

6

SPAC.F.SHAFT SEALRING 15X25X11

58303090000

Unavailable

7

SPACER SLEEVE 15X20X63 07

75004084000

Unavailable

12

BEARING BUSHING

50203081800

Unavailable

20

SETTING LEVER CPL.

7600408004401

Unavailable

21

INTERMEDIATE LEVER CPL. 07

7500408304401

Unavailable

30

BOLT LINKAGE ARM CPL.

54603182000

Unavailable

31

BOLT CPL. M14X1,5 L=175MM 07

75004085044

Unavailable

32

Self locking nut M14x1.5 WS19

54603015000

Unavailable

33

PLASTIC CAP SFL10

54403135000

Unavailable
