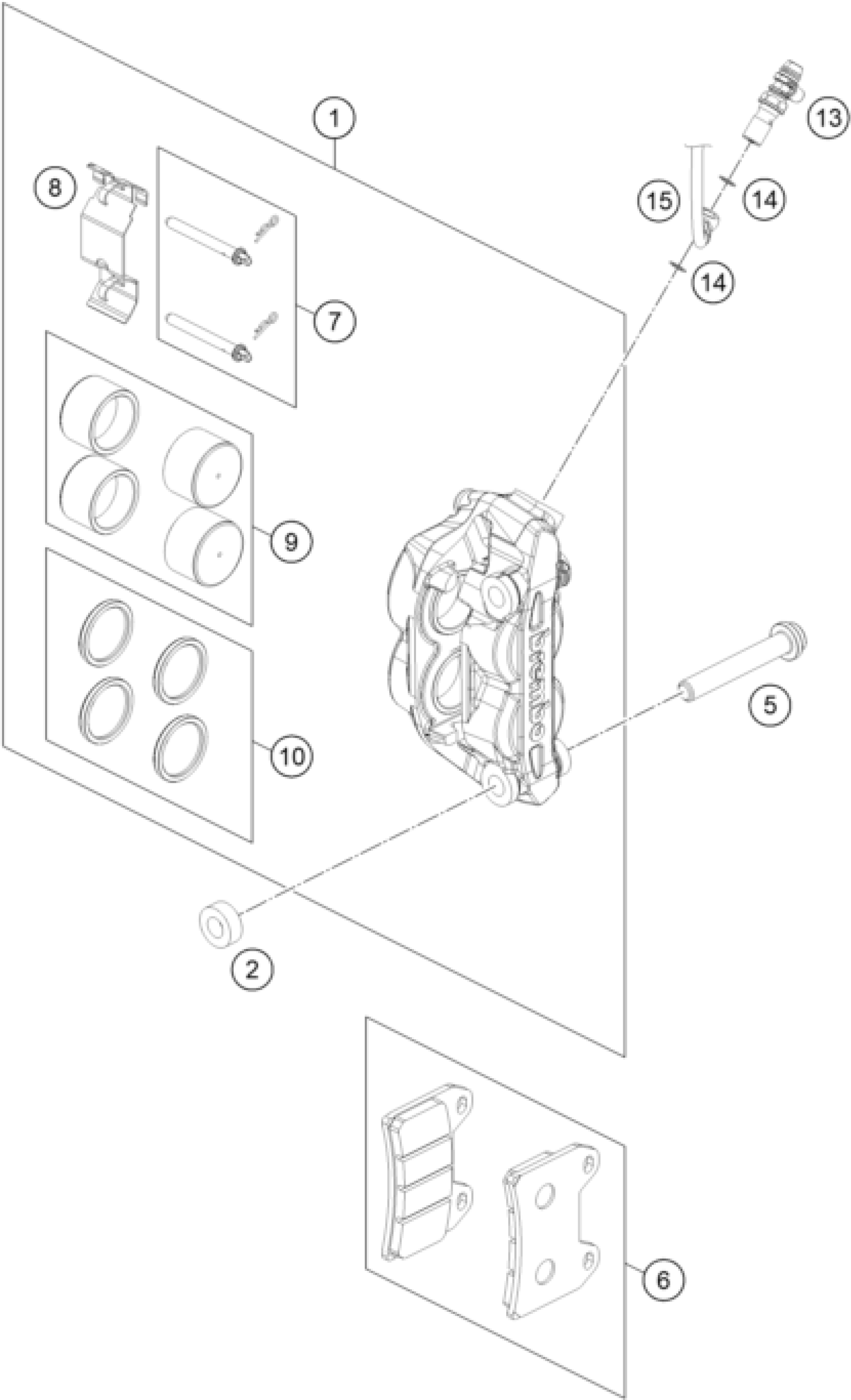

KTM 690 DUKE BLACK 2012 FRONT BRAKE CALIPER Diagram

#

Description

Price

5

AH collar screw M10x1.25x65 s-

0035100659

Unavailable

15

BRAKE PIPE

76042001000

Unavailable

1

CALIPER FRONT WITHOUT PADS

7501301510101

Unavailable

2

SPACER BUSH 10,1X20X7,5 07

6111302200001

Unavailable

6

BRAKE PAD FR. HAWK 7342-49 HH

75013030000

Unavailable

7

BOLT WHITH CLIP '99

58713017000

Unavailable

8

RETAINING SPRING BREMBO '99

58713018000

Unavailable

9

BRAKE PISTON CPL.

76013019000

Unavailable

13

BLEEDER SCREW CPL. 05

62513020000

Unavailable

14

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

10

REPAIR KIT SEALING RINGS 4X

76013019050

Unavailable
