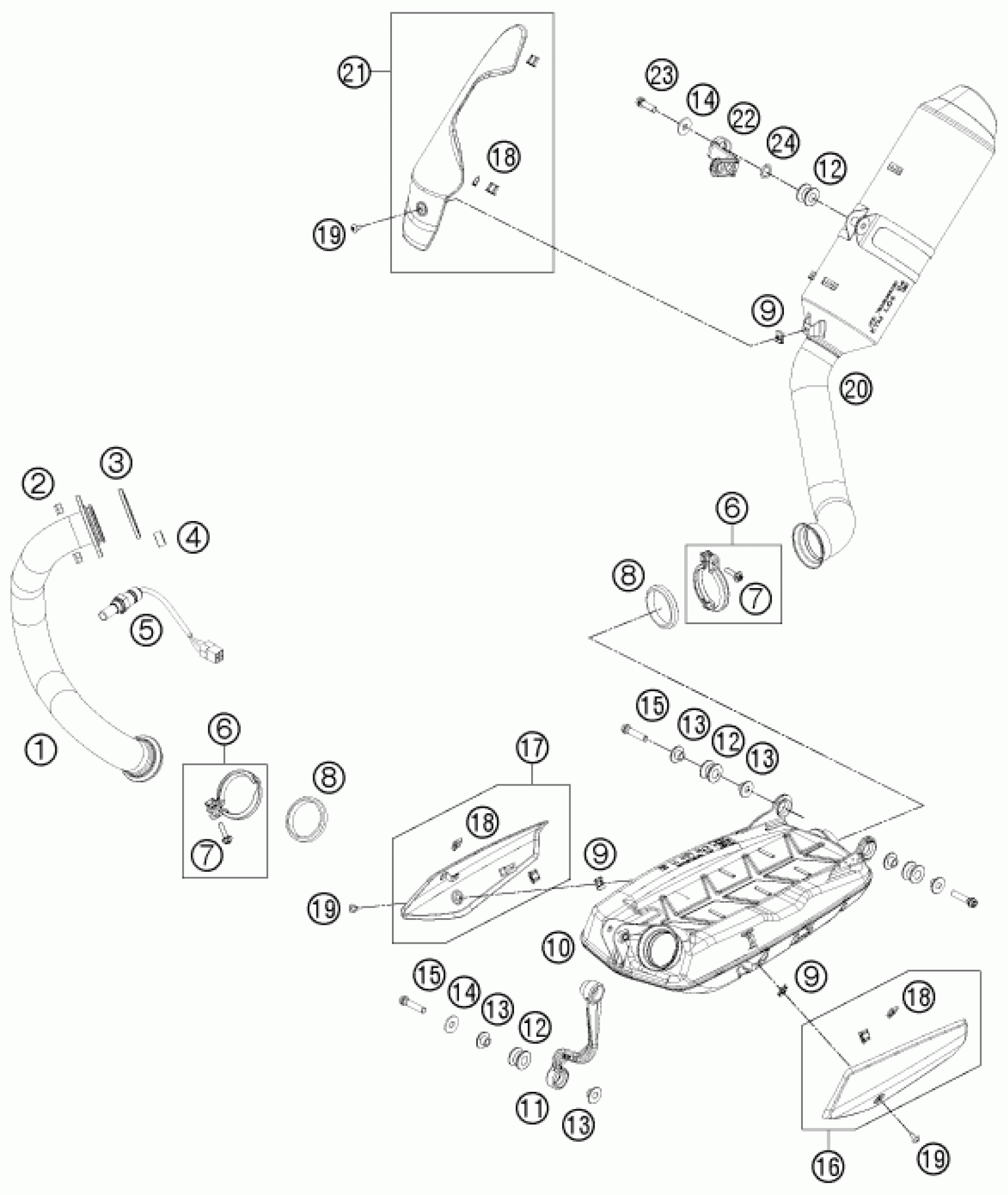

KTM 690 DUKE BLACK 2012 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST MANIFOLD

76005007000

Unavailable

2

self-locking nut M8 Cu

51010086100

Unavailable

3

Exhaust gasket 05

61005005000

Unavailable

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

5

LAMBDA SENSOR 07

75041090000

Unavailable

6

CLAMP CPL.

69005050000

Unavailable

7

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

8

MANIFOLD GASKET

69005005005

Unavailable

9

clip nut M5

69008021080

Unavailable

10

PRE-SILENCER

76005050000

Unavailable

11

SUPPORT F EXHAUST SILENCER 08

7560501400001

Unavailable

12

damp. component silicone grey

54305068100

Unavailable

13

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

14

WASHER DIN9021-A 8,4

0021080003

Unavailable

15

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

16

COVER VSD LEFT CPL.

76005013000

Unavailable

17

COVER VSD RIGHT CPL.

76005012000

Unavailable

18

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

19

SCREW TORX M5X10

78105081010

Unavailable

20

SILENCER

76005083000

Unavailable

21

HEAT SHIELD CPL.

76005011000

Unavailable

22

BRACKET F. SILENCER

7600508400001S

Unavailable

23

AH collar screw M8x25 ISA45

0035080256

Unavailable

24

SHIM 12X8.5X1.5 MM

76005085000

Unavailable
