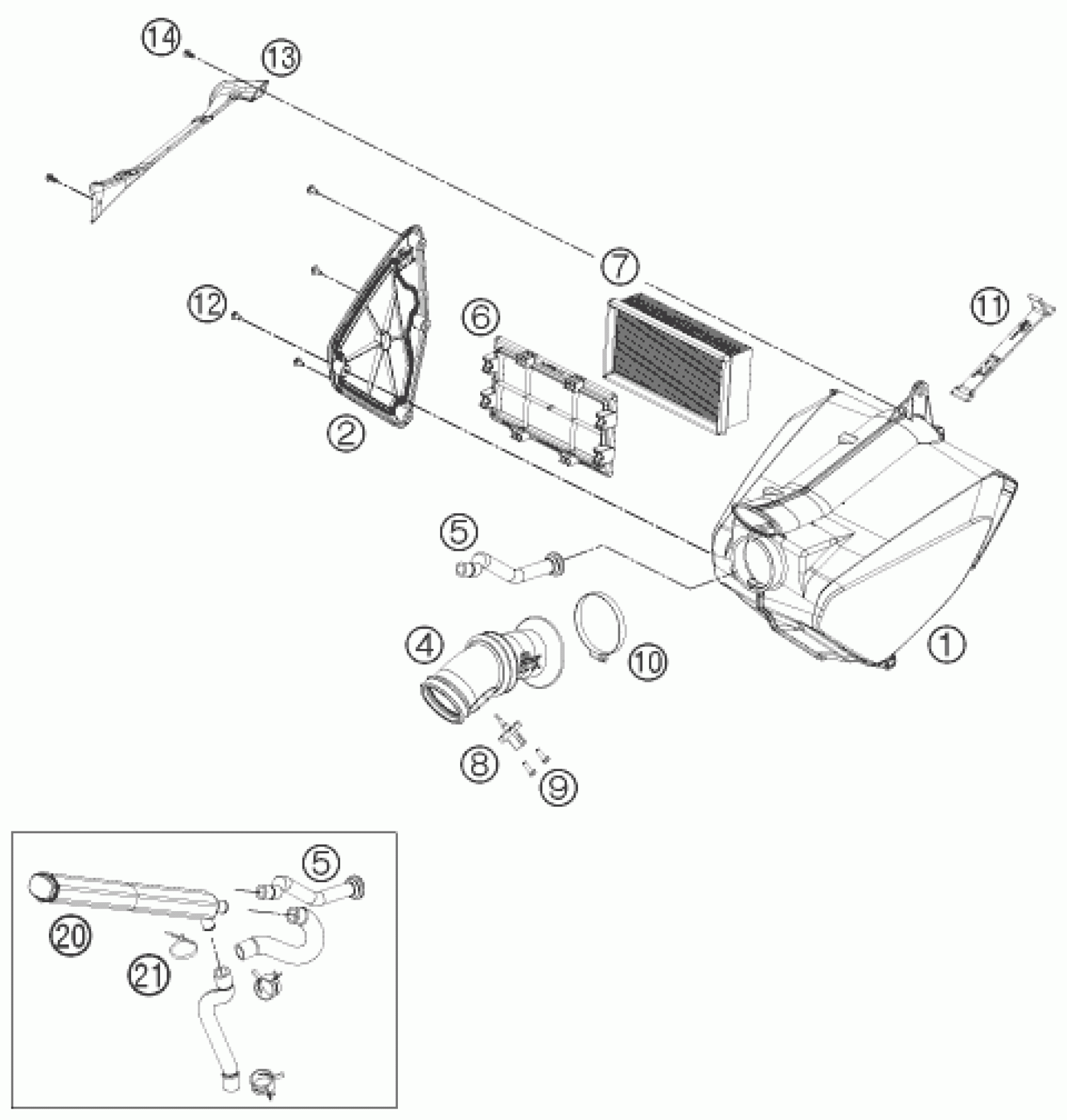

KTM 690 DUKE BLACK 2012 AIR FILTER Diagram

#

Description

Price

13

CABLE SUPPORT

76008030000

Unavailable

14

EJOT PT screw K50x12

0081050121

Unavailable

20

OIL SEPARATOR FOAM 07

75030087000

Unavailable

21

Cable tie 200/4.6mm black

44011076200

Unavailable

1

AIRFILTERBOX

76006001000

Unavailable

2

FILTER BOX COVER

76006002000

Unavailable

4

INTAKE TRUMPET 760

76006026000

Unavailable

5

VENTILATION OIL SEPARATOR FOAM

76030088000

Unavailable

6

FILTER FRAME

76006016000

Unavailable

7

AIRFILTER

75006015000

Unavailable

8

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

9

INT. TORX OVAL HEAD M5X16

0018050163

Unavailable

10

HOSE CLAMP 60-80MM

55006028000

Unavailable

11

Rubber holder, battery

76011056000

Unavailable

12

SCREW TORX M5X10

78105081010

Unavailable
