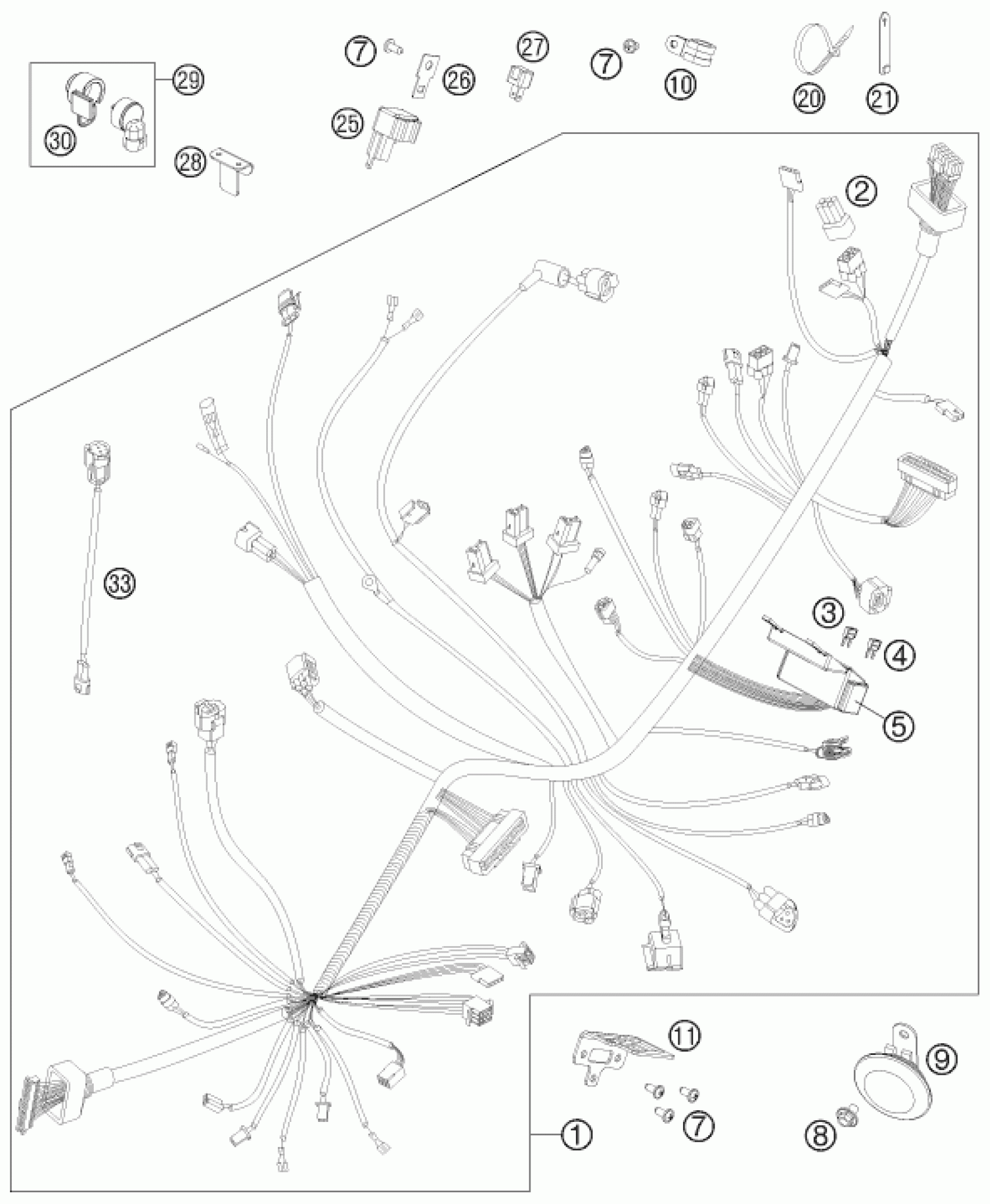

KTM 690 DUKE BLACK 2011 WIRING HARNESS Diagram

#

Description

Price

1

WIRING HARNESS

75611175000

Unavailable

2

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

3

FUSE 10A 07

75011088010

Unavailable

4

FUSE 15A 07

75011088015

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

7

EJOT PT screw K50x12

0081050121

$2.05

8

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

9

DC HORN 05

62511060000

$30.85

10

CLAMP RSGU 15/12

49007439000

$5.23

11

BRACKETS FOR PLUGS 08

75611083000

$6.52

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

Cable tie 200/4.6mm black

44011076200

Unavailable

20

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

21

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

21

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

25

FLASHER UNIT 97

44611207200

$49.83

26

BRACKET FOR FLASHER RELAY

58211031100

$5.70

27

DIODE S3H-15 97

58411096100

$9.81

28

BRACKET MAP-SELECT-SWITCH

75611046000

$5.39

29

MAP-SELECT-SWITCH

76511010000

$85.36

30

RUBBER HOLDER F. MAP-SEL-SWIT.

76511010050

$10.46

33

AMBIENT-AIR TEMP. SENSOR CABLE

75011047000

$18.91
