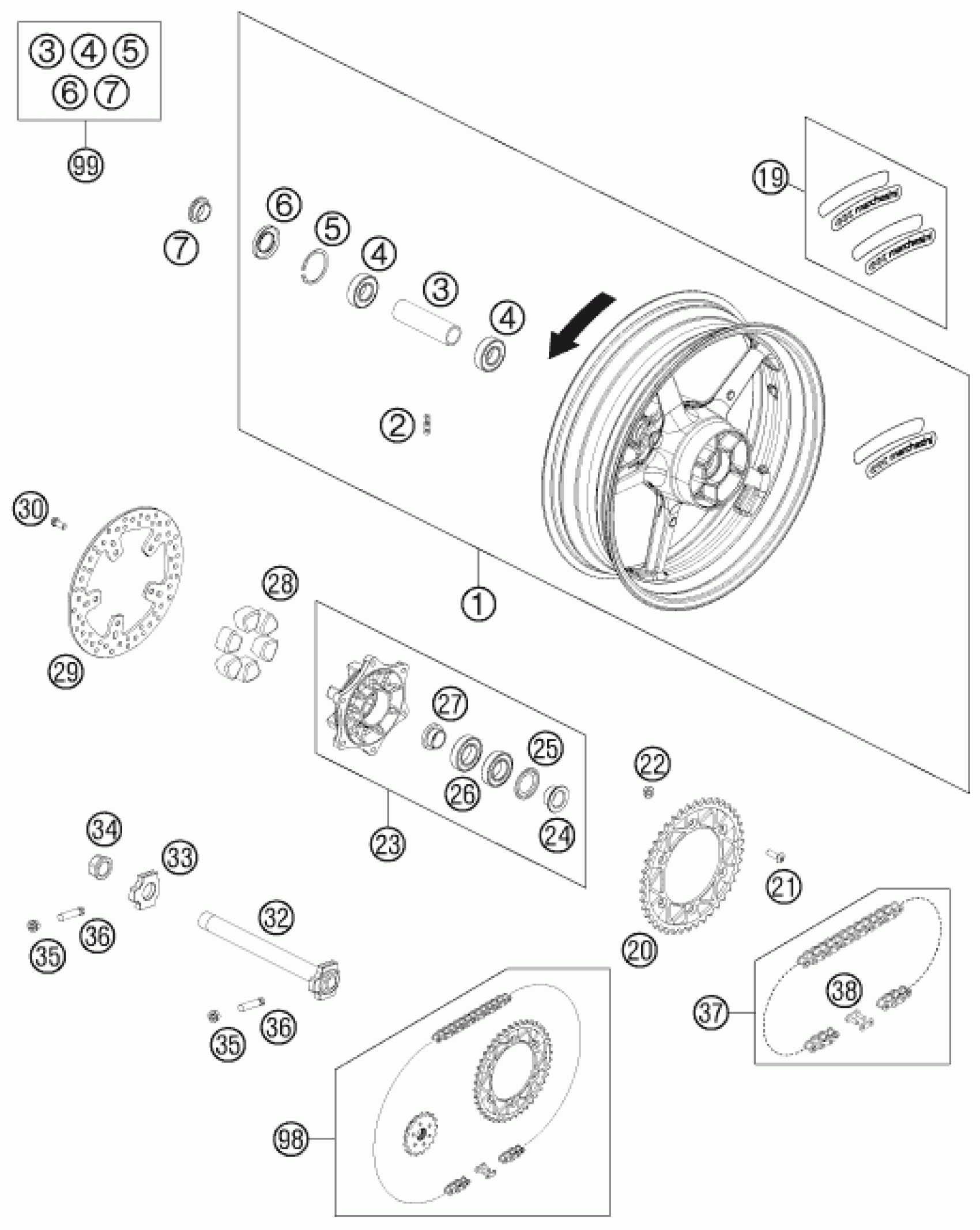

KTM 690 DUKE BLACK 2011 REAR WHEEL Diagram

#

Description

Price

1

REAR WHEEL CPL. 5X17'' 07

7561000104433

Unavailable

2

VALVE CPL. BREMBO DUKE 2003

58709076000

Unavailable

3

BEARING SPACER TUBE REAR 07

75610011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

7

SPACER BUSH. REAR WHEEL R/S 03

60010013000

Unavailable

19

STICKER MARCH. 2L/S+2R/S WHITE

00050000120

Unavailable

20

SPROCKET STEALTH 40T 07

75010051040

Unavailable

20

SPROCKET STEALTH 42T 07

75010051042

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

Unavailable

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

25

NILOS RING 6006AV

60110016000

Unavailable

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

28

Rubber damping block 91

54610459000

Unavailable

29

BRAKE DISK REAR D=240MM 05

61010060000

Unavailable

30

SPECIAL SCREW M8X18 05

61009062018

Unavailable

32

WHEEL SPINDLE REAR CPL.

75010085144

Unavailable

33

Chain tension adjuster, right,

60010084000

Unavailable

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

screw M10x1.25x50 WS10

50304040100

Unavailable

37

chain DID 118 roll

76910065118

Unavailable

38

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

99

REAR WHEEL REP. KIT

75610015000

Unavailable

98

DRIVETRAIN KIT 690 SMC 15T/42T

00050002016

Unavailable

98

DRIVETRAIN KIT 690DUKE 16T/40T

00050002025

Unavailable
