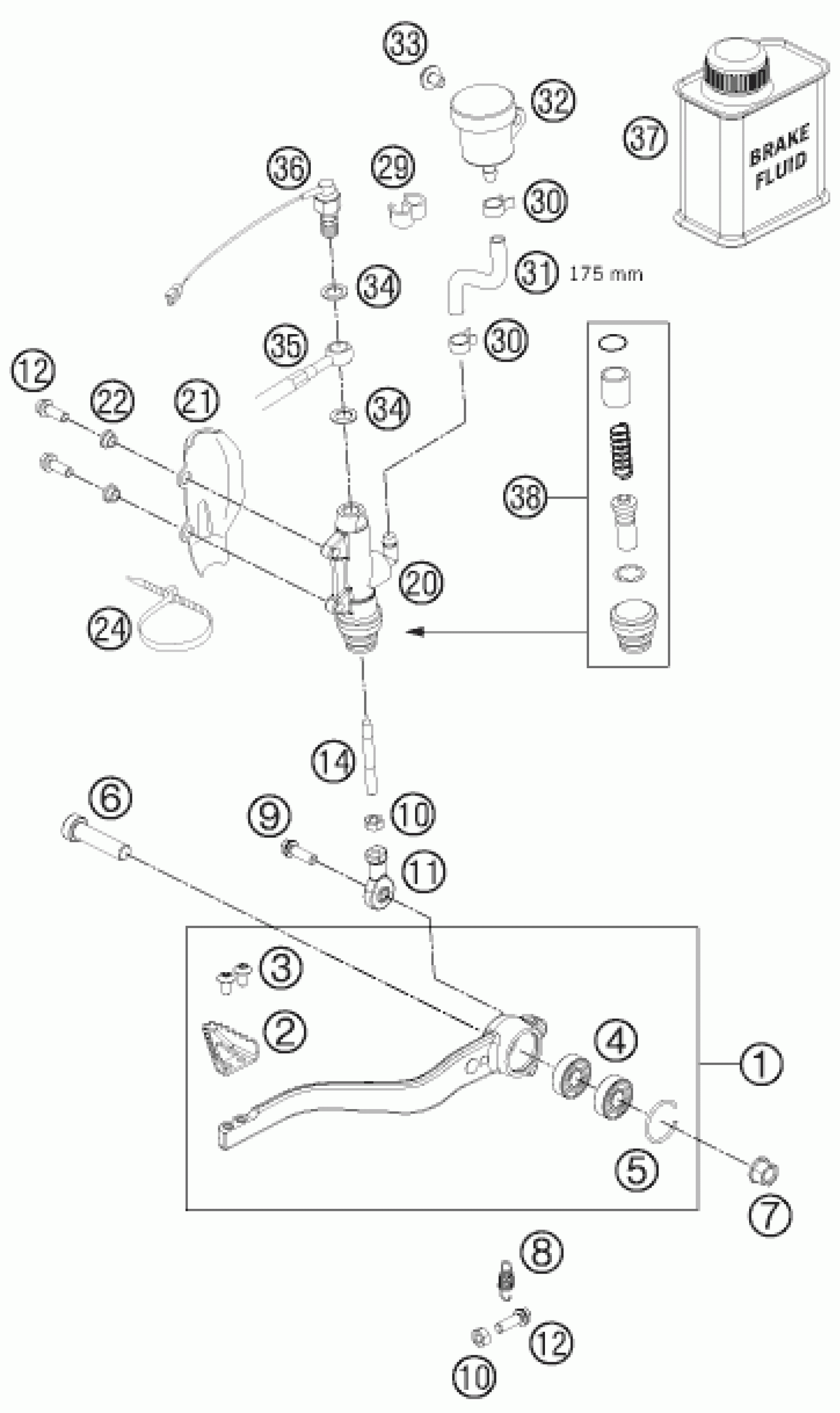

KTM 690 DUKE BLACK 2011 REAR BRAKE CONTROL Diagram

#

Description

Price

32

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

33

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

34

sealing ring DIN 7603 10x14x1

0603100141

$2.05

1

FOOT BRAKE LEVER CPL. 07

7501305004401

$106.21

2

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

3

SCREW TORX M5X10 05

58605083010

$2.05

4

deep groove ball bearing SKF 6

0625060002

$12.33

5

round wire snap ring DIN 7993

0993026500

$3.08

6

AH-COLLAR SCREW M10X40 ISA45

0032100406S

$4.11

7

COLLAR NUT M10 WS=13

54630044000

$1.49

8

SPRING FOOT BRAKE LEVER 05

61013052000

$3.08

9

HH collar screw M6x20 TX30

0025060206S

$2.05

10

Hex. nut DIN 934 M6

0934060003

$1.49

11

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

12

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

14

PRESSURE ROD ALU 250 '90

54603068000

$6.35

20

MAIN BRAKE CYLINDER '89

54513101044

$126.73

21

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

22

COLLAR BUSHING

50213161000

$3.08

24

Cable tie 200/4.6mm black

44011076200

$1.49

29

CLAMP D=6/8MM, BLACK

55011022100

$2.05

30

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

31

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

35

BRAKE HOSE REAR 2007

75013072000

Unavailable

36

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

37

Brake fluid DOT5.1 0,25L

00062030000

$12.52

38

REPAIR KIT PISTON 13MM

54513150000

$46.46
