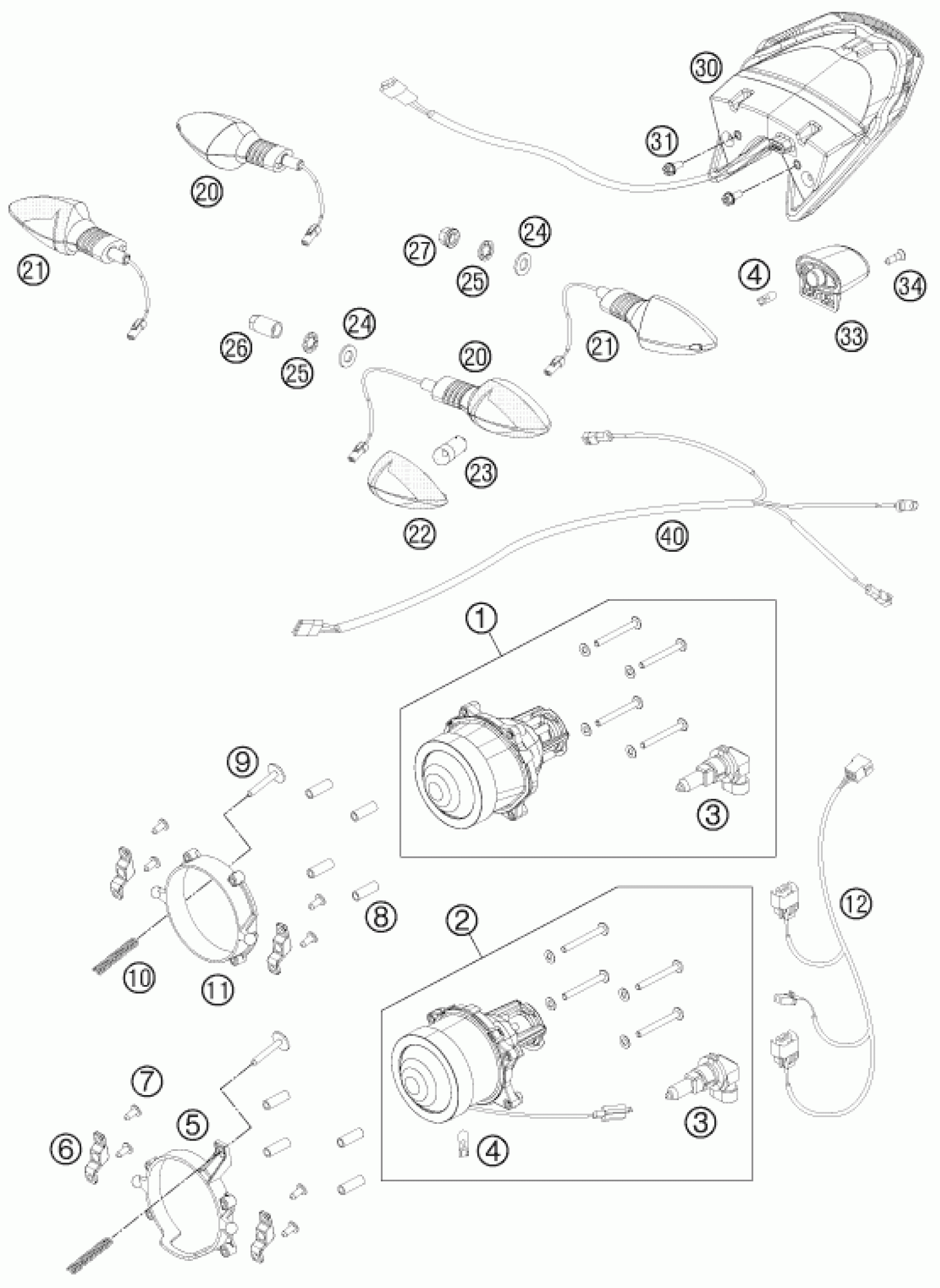

KTM 690 DUKE BLACK 2011 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEADLIGHT LOW BEAM 11

75614001100

Unavailable

2

HEADLIGHT HIGH BEAM

75614002000

Unavailable

3

BULB HB3 12V 60W '99

58714003000

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

BRACKET F. HIGH BEAM

75614008000

Unavailable

6

HEADLIGHT BRACKET

75614018000

Unavailable

7

EJOT PT screw K50x12

0081050121

Unavailable

8

DISTANCE BUSHING 5,5X8X23,4 MM

75614009000

Unavailable

9

SCREW FOR PLASTIC D=5X35

58714001010

Unavailable

10

SPRING F. HEAD LIGHT ADJ. '99

58714010050

Unavailable

11

BRACKET F. LOW BEAM

75614007000

Unavailable

12

WIRING HARNESS HEADLIGHT 08

75611079000

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

23

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

FLASHER NUT M10X1,25 WS12

75014030000

Unavailable

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT LED 07

75014040000

Unavailable

31

HH collar screw M5x12 TX30

0025050126

Unavailable

33

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

34

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

40

WIRING HARNESS REAR 07

75011076000

Unavailable
