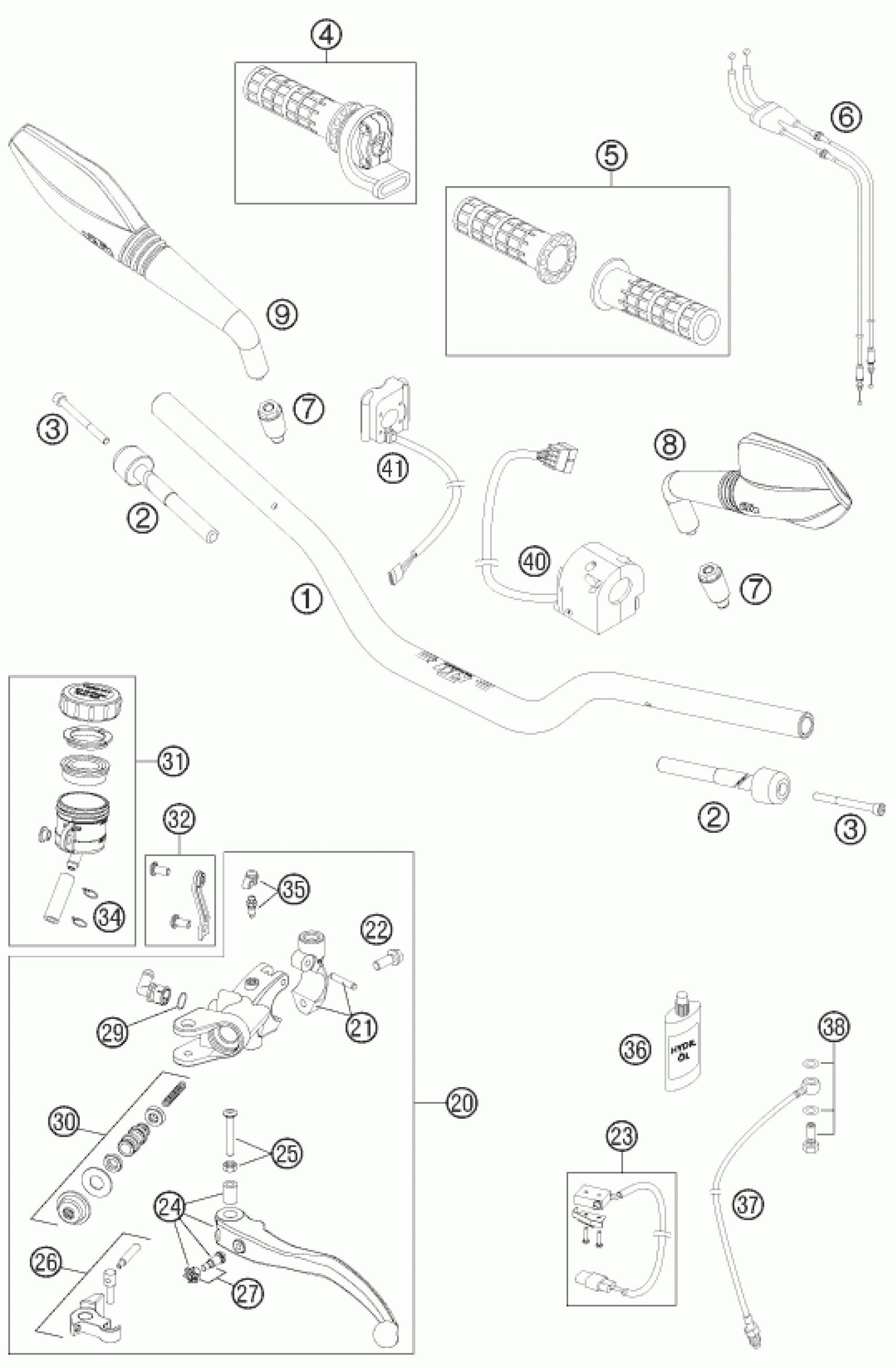

KTM 690 DUKE BLACK 2011 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR D=28MM 07

75002001000

$149.78

2

handlebar weight

61002004000

$35.52

3

SHCS DIN 912 M6x65

0912060653

$2.05

4

THROTTLE GRIP CPL. 07

75002010000

$69.45

5

GRIPP SET FULL WAFFLE

58302021100

$28.51

6

THROTTLE CABLE 07

75002091000

$97.98

7

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

8

REVIEW MIRROR L/S 07

61112040000

$48.61

9

REVIEW MIRROR R/S 07

61112041000

$48.61

20

MASTER CYLINDER CPL. 2010

61002030100

$434.77

21

CLAMP MIRROR WITH PIN

61002044000

$41.88

22

HH collar screw M6x16 TX30

0025060166

$3.08

23

CLUTCH SWITCH 05

61011049000

$76.76

24

CLUTCH LEVER CPL.

61002031100

$83.58

25

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

26

ROCKER CPL. 05

61002056000

$43.94

27

ADJUSTING SCREW CPL.

61002043000

$19.72

29

O-RING ANGLE PIECE

61002051000

$2.05

30

REP.SET PISTON D=13 05

61002032000

$79.93

31

RESERVOIR CPL. 05

61002055000

$67.31

32

BRACKET AND SCREWS F. RESERV.

61002055050

$35.15

34

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

35

BLEEDER SCREW WITH CAP

61002054000

$23.55

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

37

CLUTCH PIPE SM PRESTIGE 07

75632063000

$99.66

38

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

40

LIGHT SWITCH 05

61011070000

$107.89

41

START-STOP SWITCH AD LC4 02

58411074100

$76.47
