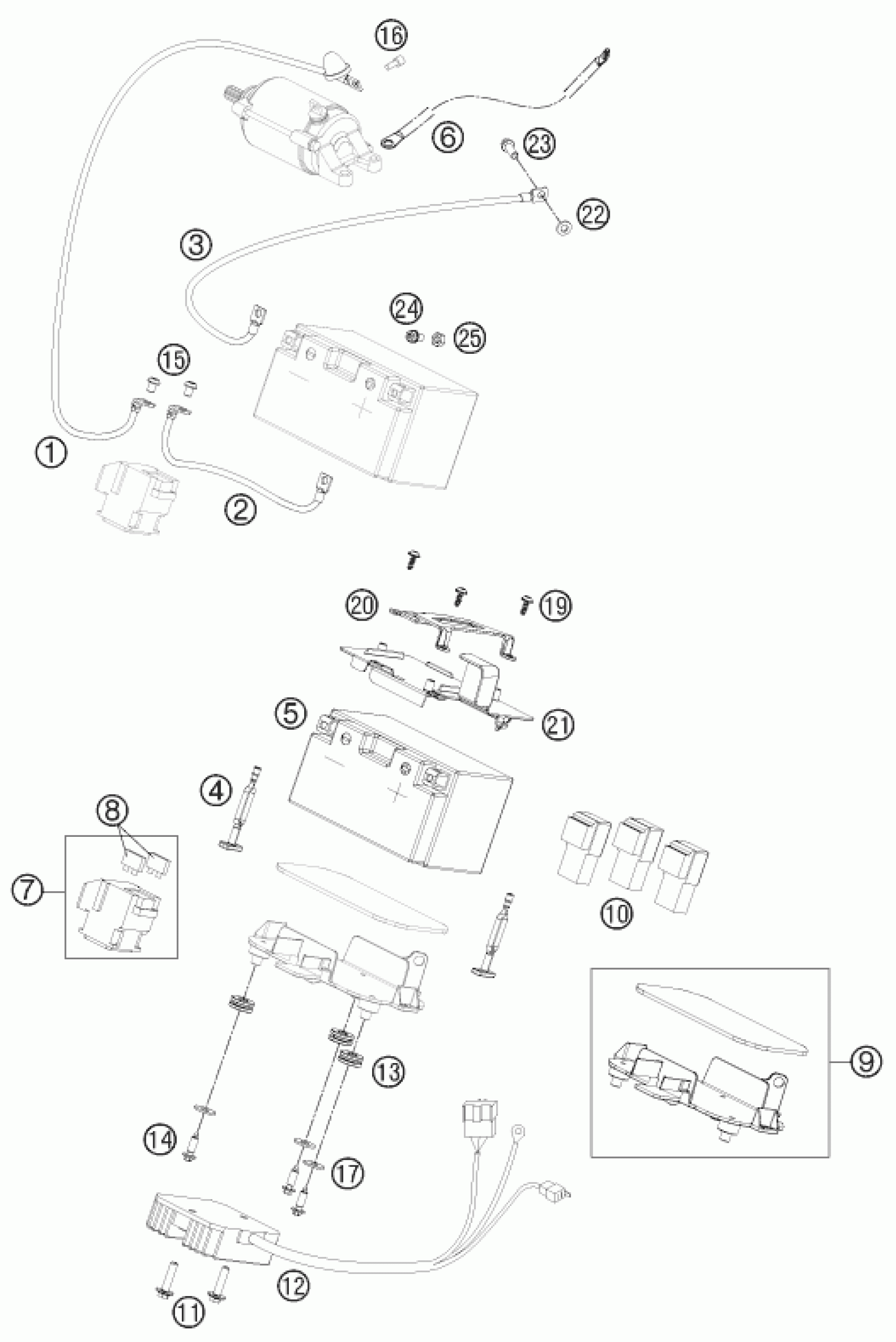

KTM 690 DUKE BLACK 2011 BATTERY Diagram

#

Description

Price

22

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

23

HH collar screw M6x16 TX30

0025060166

$3.08

24

HH collar screw M6x10 TX30

0025060106

$3.08

25

Hex. nut DIN 934 M6

0934060003

$1.49

1

STARTER CABLE 07

75011059000

$14.19

2

BATTERY-CABLE L=170MM

75011059150

$13.74

3

GROUND CABLE 07

75011097000

$15.70

4

BRACKET RUBBER FOR BATTERY

75011054005

$5.70

5

BATTERY 12V 8,6AH 03

58411053100

$309.38

6

GROUND CABLE L=450MM 05

61011097000

$9.44

7

STARTER RELAY 03

60011058000

$76.38

8

Plug-in fuse, big 30A

58011109130

$2.05

9

BATTERY SUPPORT CPL.

75011154033

$4.35

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

COLLAR SCREW M6X27 TX

0024060273

$3.08

12

VOLTAGE REGULATOR

60011034100

$160.34

13

DECOUPLING RUBBER

75011054010

Unavailable

14

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

15

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

16

SHCS DIN 912 M5x8

0912050083

$1.49

17

Washer DIN9021-A 6.4

0021060003

$2.05

19

EJOT PT screw K50x12

0081050121

$2.05

20

ECU MOUNTING BRACKET

75011054130

Unavailable

21

BATTERY SUPPORT - TOP PART

75011054120

$3.48
