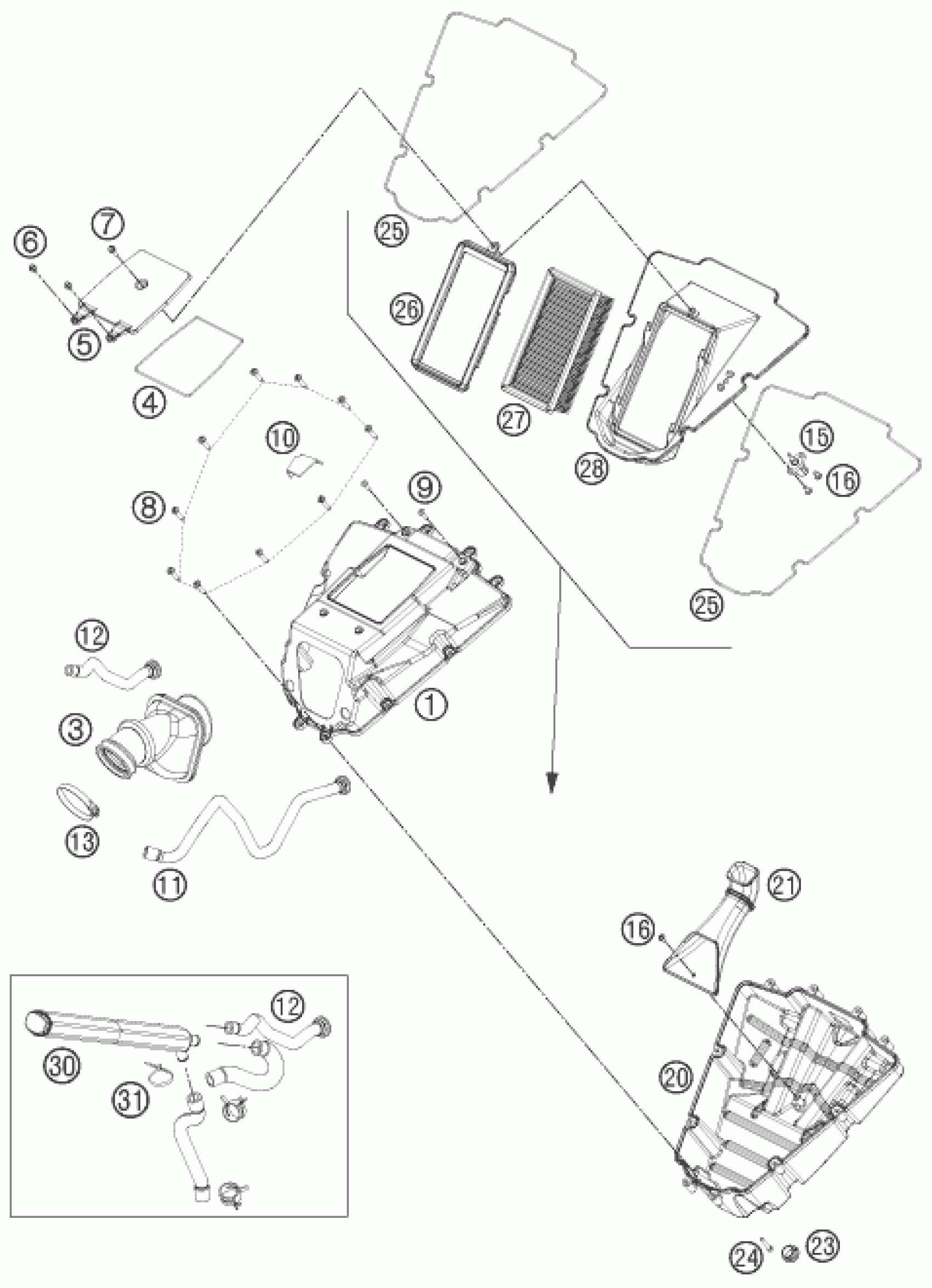

KTM 690 DUKE BLACK 2011 AIR FILTER Diagram

#

Description

Price

1

AIRBOX UPPER-PART

75006001010

Unavailable

3

INTAKE TRUMPET

75006126000

Unavailable

4

GASKET FILTER BOX COVER 07

75006091000

Unavailable

5

FILTER BOX COVER 07

75006002000

Unavailable

6

HH collar screw M5x10 TX30

0025050106

Unavailable

7

HH collar screw M5x20 TX30

0025050206

Unavailable

8

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

9

Oval head screw M5x14 TX25

58605083014

Unavailable

10

METAMOL FOR AIR FILTER BOX 07

75006001015

Unavailable

11

HOSE SLS AIRFILTERBOX 07

75005032000

Unavailable

12

HOSE OIL SEPARATOR - BREATH.07

75030088000

Unavailable

13

HOSE CLAMP 50-70MM

51006027000

Unavailable

15

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

16

EJOT PT screw K50x12

0081050121

Unavailable

20

AIRBOX LOWER-PART 07

75006001020

Unavailable

21

INTAKE SNORKEL 07

75006040000

Unavailable

23

PLUG SFL28 05

61003088000

Unavailable

24

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

25

GASKET FILTER BOX 07

75006090000

Unavailable

26

FILTER FRAME 07

75006001050

Unavailable

27

AIRFILTER

75006015000

Unavailable

28

AIRBOX MIDDLE-PART 07

75006001030

Unavailable

30

OIL SEPARATOR FOAM 07

75030087000

Unavailable

31

Cable tie 200/4.6mm black

44011076200

Unavailable
