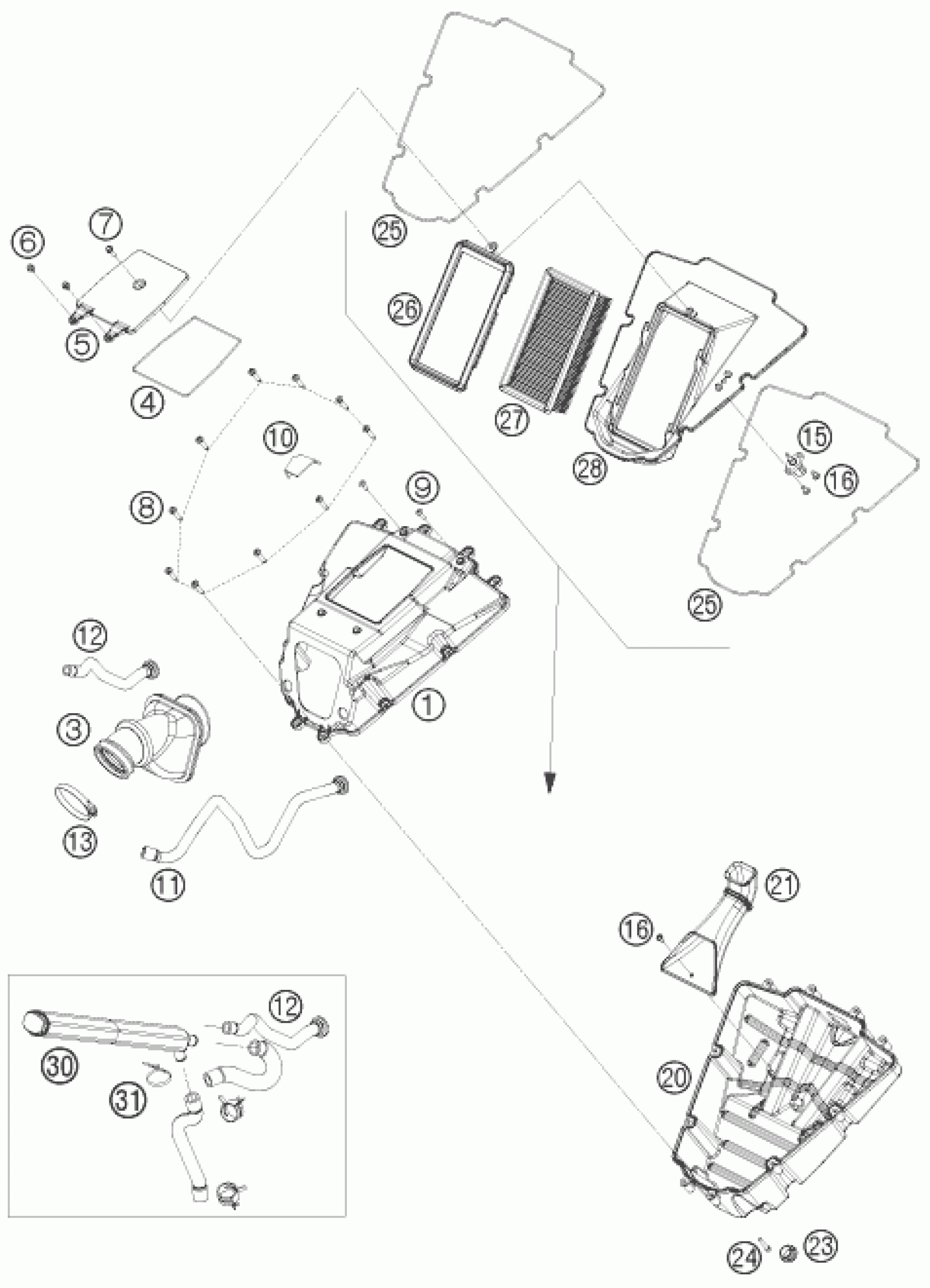

KTM 690 DUKE BLACK 2010 AIR FILTER Diagram

#

Description

Price

1

AIRBOX UPPER-PART

75006001010

$13.24

4

GASKET FILTER BOX COVER 07

75006091000

$2.61

6

HH collar screw M5x10 TX30

0025050106

$1.49

5

FILTER BOX COVER 07

75006002000

$4.43

3

INTAKE TRUMPET

75006126000

$22.62

7

HH collar screw M5x20 TX30

0025050206

$2.05

9

Oval head screw M5x14 TX25

58605083014

$3.08

10

METAMOL FOR AIR FILTER BOX 07

75006001015

$2.61

8

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

13

HOSE CLAMP 50-70MM

51006027000

$6.07

20

AIRBOX LOWER-PART 07

75006001020

$12.52

21

INTAKE SNORKEL 07

75006040000

$5.03

11

HOSE SLS AIRFILTERBOX 07

75005032000

Unavailable

12

HOSE OIL SEPARATOR - BREATH.07

75030088000

$19.60

23

PLUG SFL28 05

61003088000

$2.05

24

AH SCREW DIN0912-M 5X30

0912050303

$1.49

25

GASKET FILTER BOX 07

75006090000

$4.35

26

FILTER FRAME 07

75006001050

$4.03

27

AIRFILTER

75006015000

$13.64

28

AIRBOX MIDDLE-PART 07

75006001030

$9.06

30

OIL SEPARATOR FOAM 07

75030087000

$22.62

31

Cable tie 200/4.6mm black

44011076200

$1.49

15

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

16

EJOT PT screw K50x12

0081050121

$2.05
