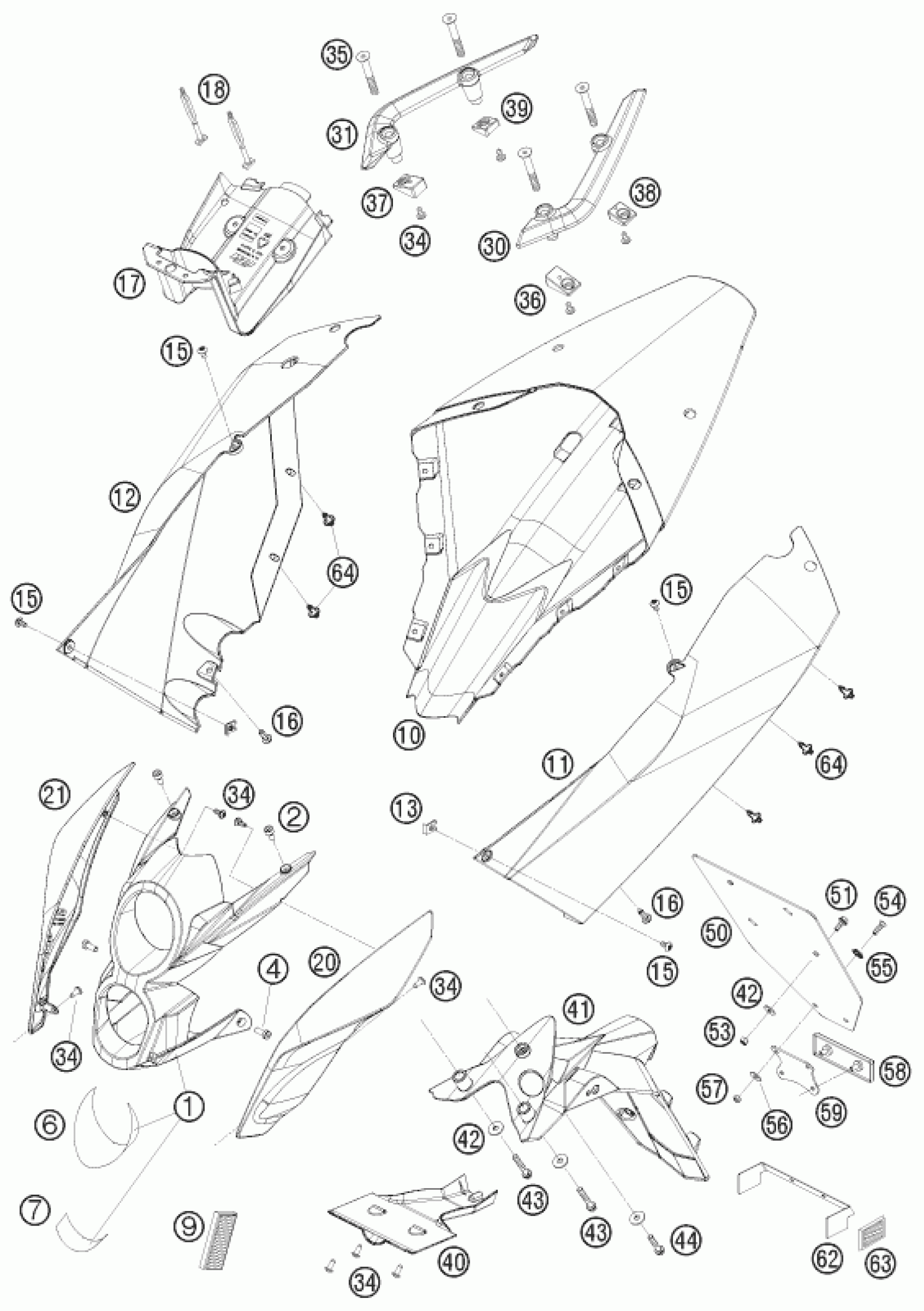

KTM 690 DUKE BLACK 2009 MASK, FENDERS Diagram

#

Description

Price

1

HEAD LIGHT MASK SILVER MET.

7560800100083A

Unavailable

2

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

4

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

6

THERMAL PROT. FOIL F. LOW BEAM

75608001051

Unavailable

7

THERMAL PROT. FOIL F.HIGH BEAM

75608001052

Unavailable

10

REAR FENDER BLACK MATT

7500801300033A

Unavailable

11

SIDECOVER L/S +DECAL BLACK MET

7500804100040D

Unavailable

9

REFLECTOR YELLOW '99

58412080100

Unavailable

12

SIDECOVER R/S +DECAL BLACK MET

7500804200040D

Unavailable

13

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

15

Oval head screw M5x14 TX25

58605083014

Unavailable

16

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

17

STORAGE COMPARTMENT

75003075000

Unavailable

18

RUBBER L=145MM

50303018000

Unavailable

20

MASK SPOILER LEFT BLACK MATT

7560800300033A

Unavailable

21

MASK SPOILER RIGHT BLACK MATT

7560800400033A

Unavailable

30

HAND GRIP L/S 07

75012008000

Unavailable

31

HAND GRIP R/S 07

75012009000

Unavailable

34

EJOT PT screw K50x12

0081050121

Unavailable

35

FLAT HEAD SCREW ISO10642 M8X60

0991080603

Unavailable

36

SPACER SUB FRAME FRONT L/S

75003065000

Unavailable

37

SPACER SUB FRAME FRONT R/S

75003066000

Unavailable

38

SPACER SUB FRAME REAR L/S

75003067000

Unavailable

39

SPACER SUB FRAME REAR R/S

75003068000

Unavailable

40

COVER NUMB. PLATE CARRIER 08

75608015010

Unavailable

41

NUMBER PLATE CARRIER

75608015000

Unavailable

42

Washer DIN9021-A 6.4

0021060003

Unavailable

43

HH collar screw M6x30 TX30

0025060306

Unavailable

44

HH collar screw M6x20 TX30

0025060206

Unavailable

50

license plate mouning plate

60012081200

Unavailable

51

HH collar screw M6x15 TX30

0024060156

Unavailable

53

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

55

WASHER 6MM

40006006000

Unavailable

56

WASHER DIN0125-A 5,3

0125050003

Unavailable

57

Self locking nut DIN 985 M5

0985050003

Unavailable

58

REFLECTOR RED

58412080000

Unavailable

59

BRACKET FOR REFLECTOR

58412080050

Unavailable

62

BRACKET SIDE REFLECTOR 06

62512081000

Unavailable

63

SIDE REFLECTOR RED REAR

16512180100

Unavailable

64

EXPANDING RIVET CPL.

76503075100

Unavailable
