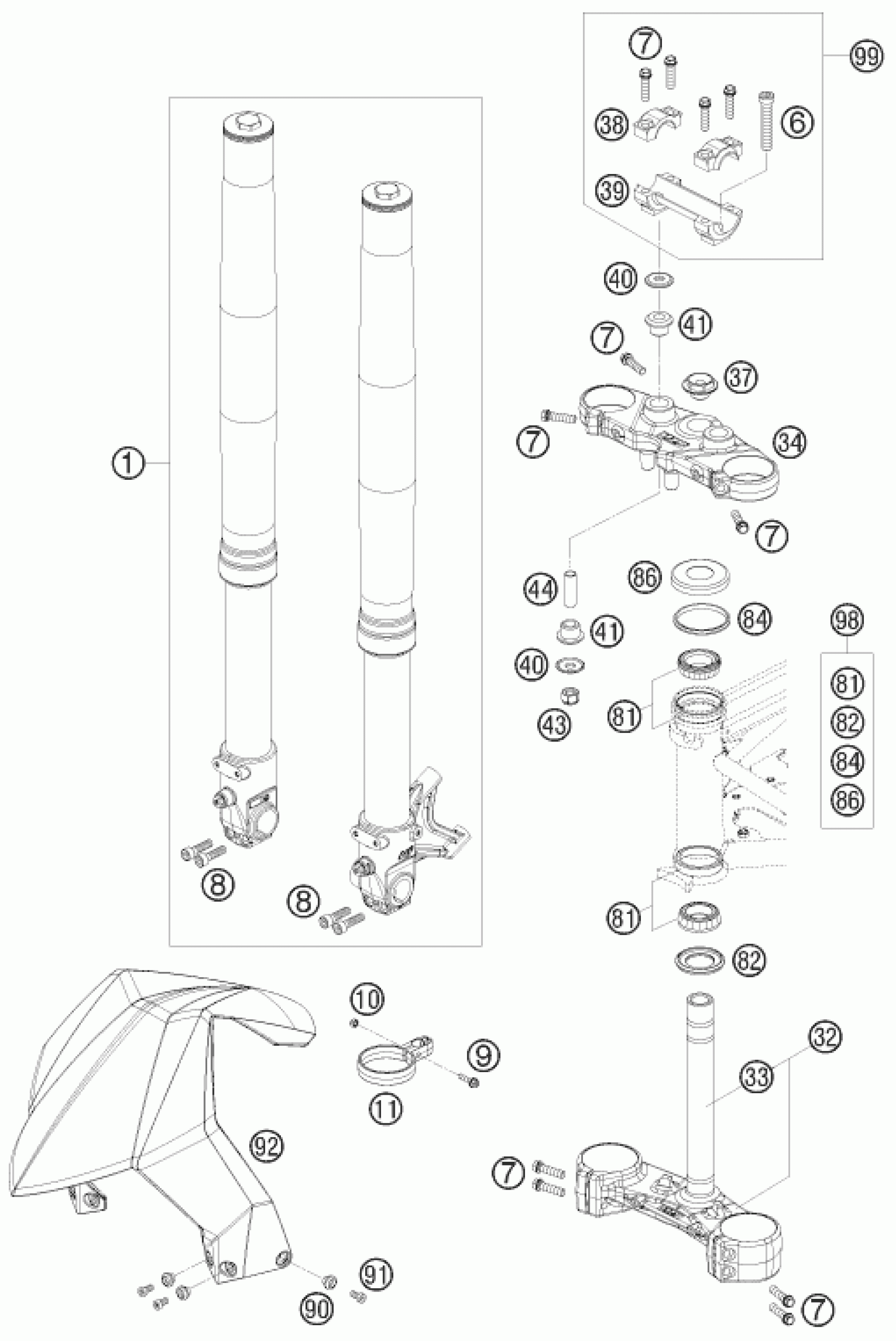

KTM 690 DUKE BLACK 2009 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

6

AH SCREW DIN6912-M10X60

0012100603

Unavailable

7

HH collar screw M8x30

0025080306

Unavailable

8

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

9

HH collar screw M5x20 TX30

0025050206

Unavailable

10

Self locking nut DIN 985 M5

0985050003

Unavailable

11

CLAMP BRAKE HOSE 07

75001070000

Unavailable

32

BOTTOM TRIPLE CLAMP CPL. 07

7500103203201S

Unavailable

33

FORK TUBE LC8 ADV 03

60001033000

Unavailable

34

TOP TRIPLE CLAMP 54MM 07

7500103403201S

Unavailable

37

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

HANDLEBAR CLAMP 28MM 07

5900103830001S

Unavailable

39

HANDLEBAR SUPPORT 28MM 07

5900103920001S

Unavailable

40

washer 10.5x32x2

56401042000

Unavailable

41

rubber bushing

56401040000

Unavailable

43

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

44

spacer tube 10.2x12x38

61001041000

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALINGLIP

54601084200

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

86

STEERING HEAD COVER 05

61001086000

Unavailable

90

BUSHING MUD FLAP 07

75001094010

Unavailable

91

AH SCREW DIN6912 M6X12

0012060123

Unavailable

92

FRONT FENDER BLACK MATT

7560801000033A

Unavailable

1

FORK KTM 690 DUKE 2009

14187E0901

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
