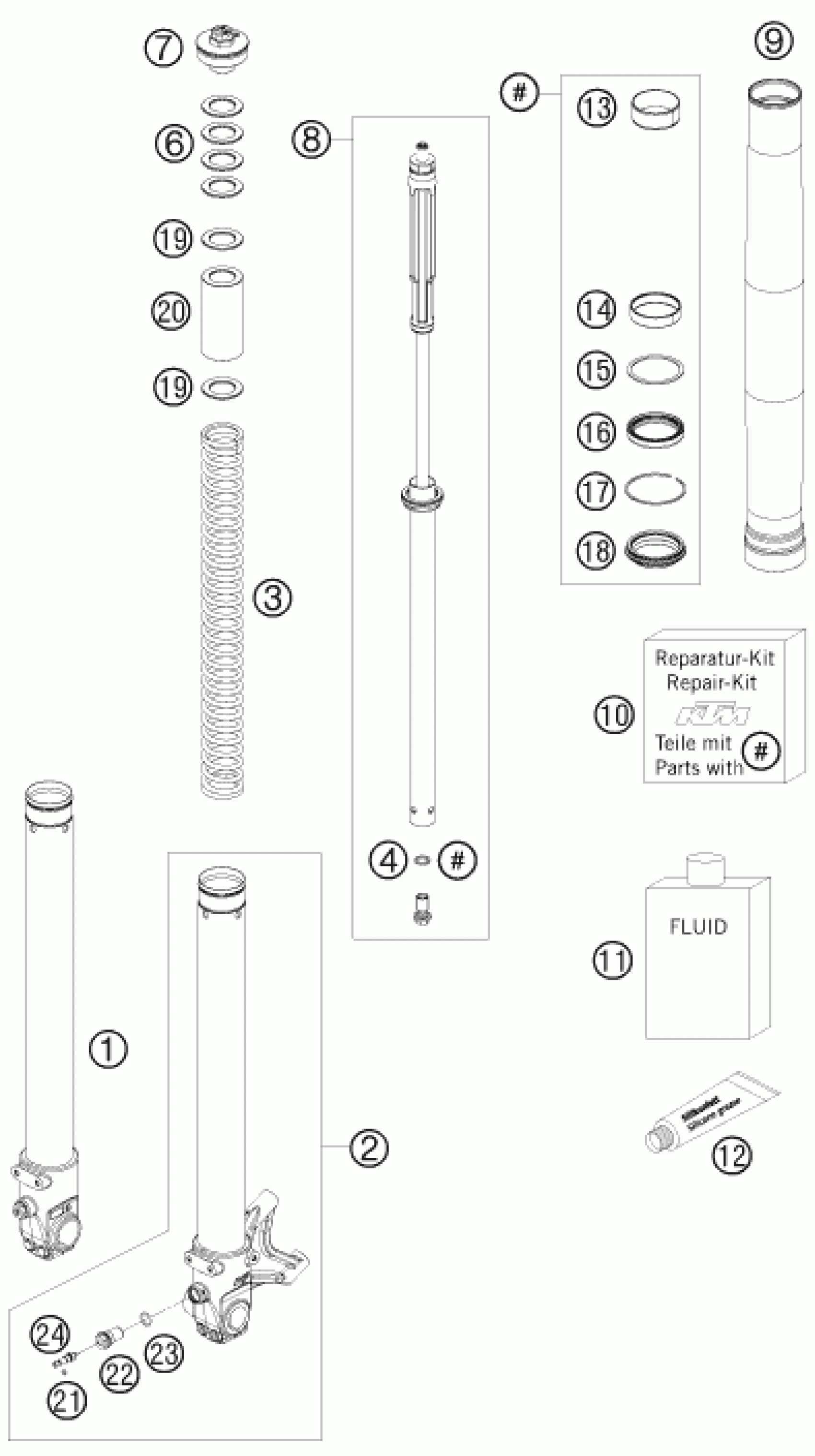

KTM 690 DUKE BLACK 2009 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

AXLE CLAMP R/S CPL. 09

48600536S4

$533.00

2

AXLE CLAMP L/S CPL. 09

48600535S4

$523.31

3

SPRING D43.2 L250 7.5N/MM D5.0

91410063S

Unavailable

4

SEALING RING COPPER 12X18X1,5

48600704

$2.05

6

Preload bush 26,5x42x10

48600038

$3.08

6

Preload bush 26,5x42x5

48600037

$4.11

6

Preload bush 42x26,5x2,5

48600036

$2.05

6

Preload bush 26,5x42x1,5

48600053

$4.11

7

Screw cap M51X1.5 cmpl. 0

48600558S

$72.87

8

Cartridge cmpl. 690 DUKE 200

48600678S2

Unavailable

9

OUTER TUBE L610 D54/D60 2L ROA

48600712

$383.01

10

REPAIR-KIT GASKET 09

R14017

$106.21

11

FORK OIL SAE5 5L 2008

48600765S1

$149.59

12

SILICONE GREASE F. DUST STRI

T511

$34.59

13

DU-BUSH D47XD49X20DDL02

48600428

$12.05

14

DU-BUSH D48XD52X12DDL02

48600429

$12.05

15

Supportwasher 50x57,6x1,5

48600013

$3.08

16

OIL SEAL RING 48X57,8X9,5 03

48600347

$13.64

17

Snap ring SB58x1,5 acc drawing

48600070

$2.05

18

Dirt scarper NOK 48mm

48600816

$12.80

19

Washer 35x43x1,5 plastic

48600458

$2.05

20

SPACER ALU D42 X 85

48600579

$32.06

21

O-ring 3x1,5 NBR70

48600046

$1.49

22

Adjuster housing compression M

48600596

Unavailable

23

O-ring 11x2 NBR70

48600604

Unavailable

24

Adjustment screw slot compress

48600598

Unavailable
