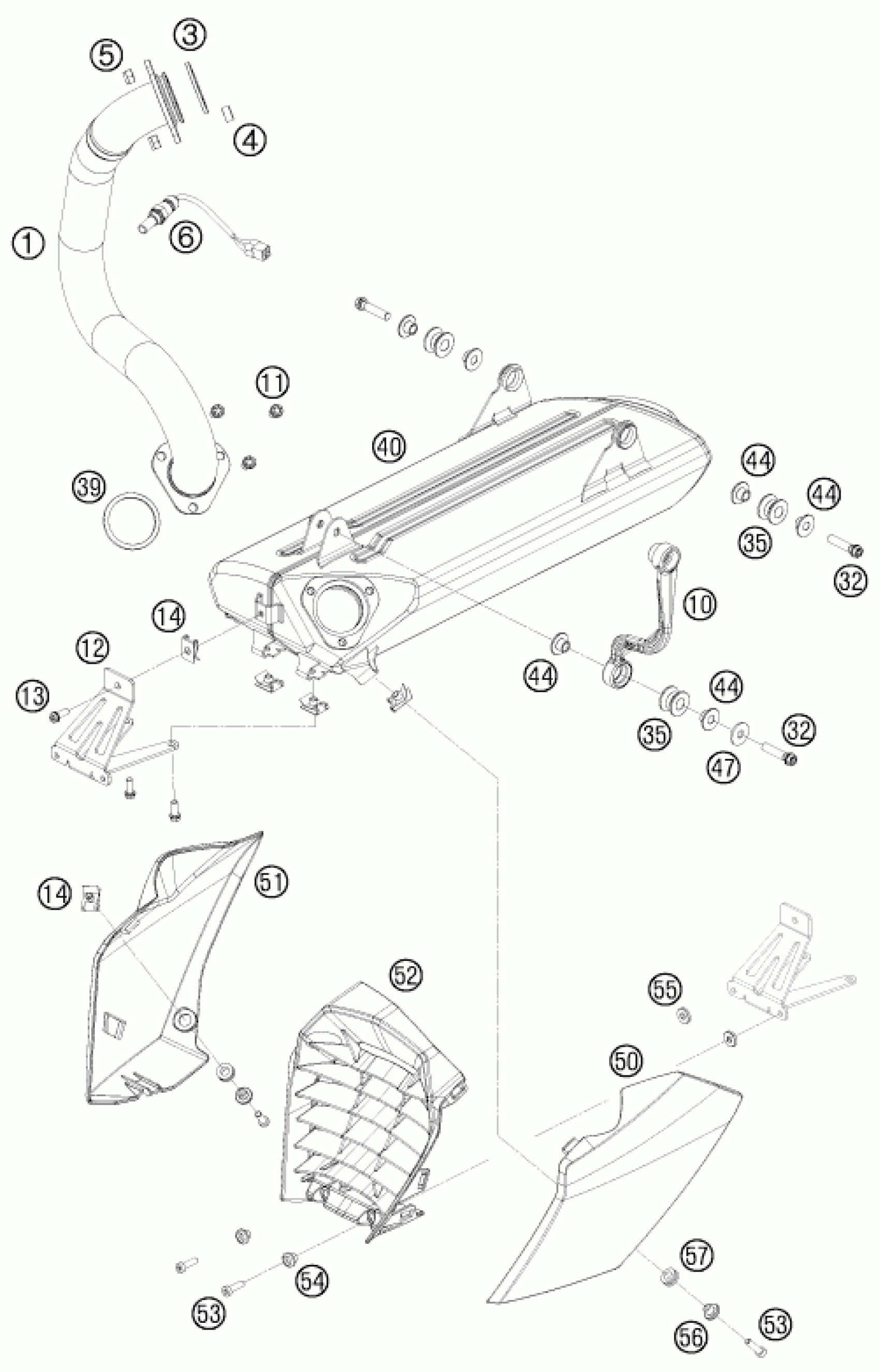

KTM 690 DUKE BLACK 2009 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST PIPE FRONT 08

75605007000

$571.97

3

Exhaust gasket 05

61005005000

$10.00

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

5

self-locking nut M8 Cu

51010086100

$3.08

6

LAMBDA SENSOR 07

75041090000

$171.19

10

SUPPORT F EXHAUST SILENCER 08

7560501400001

$52.63

11

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

12

RETAINING PLATE FRONT SPOILER

75608020060

$52.35

13

HH collar screw M6x15 TX30

0024060156

$3.08

14

clip nut M6

54603048100

$4.11

32

HH collar screw M8x35 TX40

0025080356

$4.11

35

damp. component silicone grey

54305068100

$8.31

39

EXHAUST GASKET 57,6X3,5 08

75605005000

$10.95

40

SILENCER ''KTM LC4 03''

75605083100

Unavailable

44

collar bushing 8.5x12x23.5x10

58405050065

$5.23

47

WASHER DIN9021-A 8,4

0021080003

$1.49

50

FRONT SPOILER L/S BLACK-MET.

7560802300040A

$86.27

51

FRONT SPOILER R/S BLACK-MET.

7560802400040A

$87.92

52

FRONT SPOILER-CENTER PART

75608020000

$26.92

53

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

54

BUSHING MUD FLAP 07

75001094010

$6.07

55

INSULATING DISK 6,2X16X3

75608067000

$3.08

56

COLLAR BUSH 6,25X9,2X17X11 08

75001094020

$5.98

57

RUBBER SLEEVE 9X17X7MM 08

75608020010

$4.11
