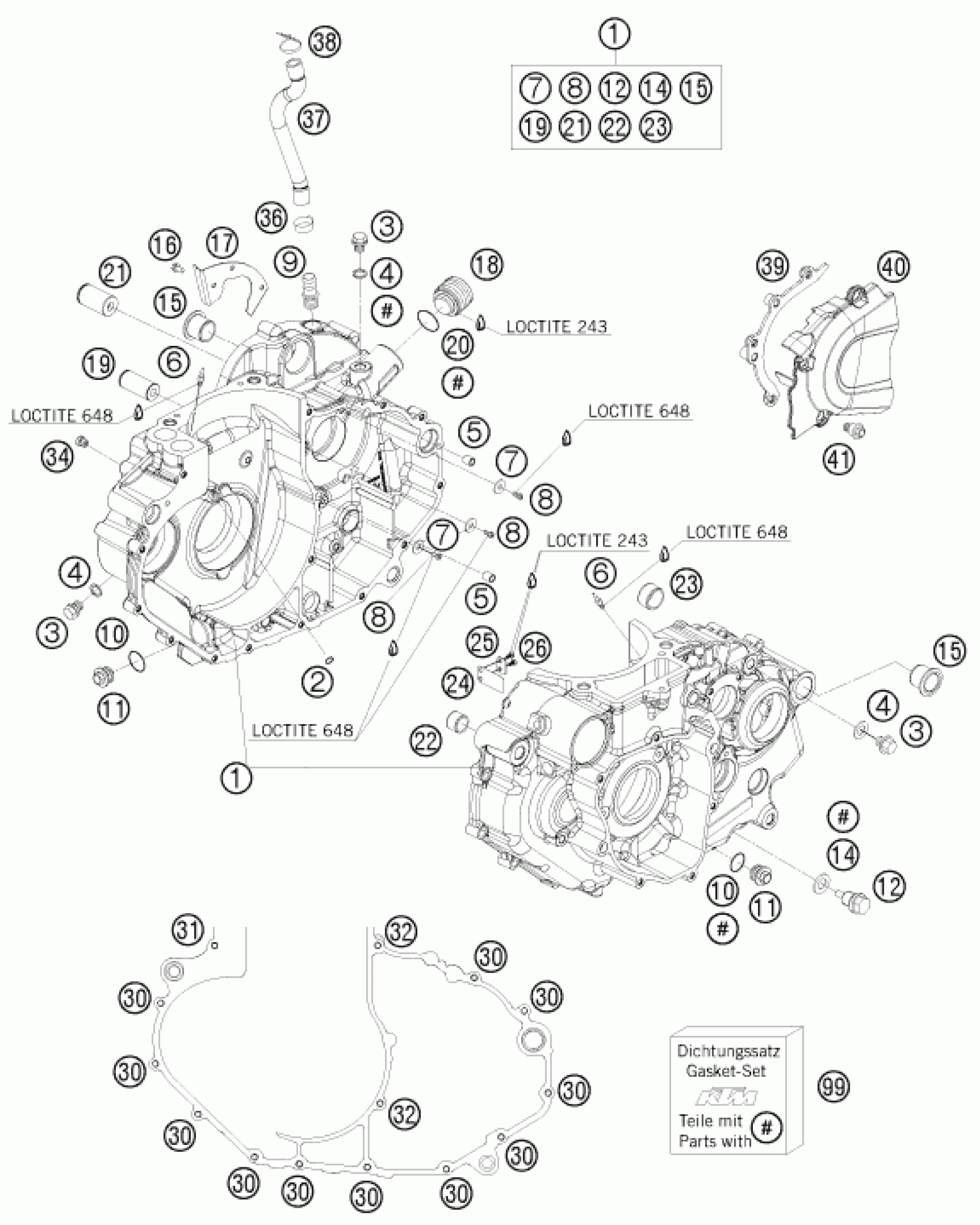

KTM 690 DUKE BLACK 2009 ENGINE CASE Diagram

#

Description

Price

1

ENGINE CASE CPL.W.BEAR LC4 07

75030000133

$789.47

3

PLUG DIN0910-M 10X1

0910100003

$4.11

4

sealing ring DIN 7603 10x14x1

0603100141

$2.05

2

O-RING 6,07X1,78 FPM75

0770060018

$2.05

5

dowel sleeve 6x8x11.5

59030023000

$1.49

6

OIL JET 50 M6X0,75 WS8 05

60030064050

$10.65

7

washer DIN 9021 A - 5.3

0021050003

$1.49

8

FLAT HEAD SCREW ISO7380 M5X10

073800501001

$1.49

9

VENTILATION CONNECTOR M16X1,5

60030022000

$8.31

10

o-ring 18.00x2.00 NBR70

0770180020

$2.05

11

PLUG M20X1,5 WS=13

59038017000

$7.85

12

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

14

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

15

CASE BUSH

75030010000

$8.59

16

AH SCREW DIN7984 M5X10 A2

07984050100

$1.49

17

COVER

75030042000

$19.44

18

LOCK PIECE

75038048100

$30.85

19

BUSHING PIN

54633018400

$21.87

20

o-ring 18.00x2.00 NBR70

0770180020

$2.05

21

BUSHING PIN

59040028000

$10.46

22

DOWEL 17 X 13 X 12

51030026100

$6.44

23

DOWEL 21X12 03

54830027000

$5.23

24

MEMBRANE 07

75030003051

$2.24

25

STOP SHEET MEMBRANE 07

75030003050

$2.05

26

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

$3.08

30

HH collar screw M6x30 TX30

0025060306

$3.08

31

HH collar screw M6x25 TX30

0025060256

$3.08

32

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

34

JET 125

75030058000

$5.23

36

CLAMP STD DN22

00049220121

$2.05

37

HOSE BREATHER SYSTEM 07

75030086000

$30.66

38

Cable tie 200/4.6mm black

44011076200

$1.49

39

SECURING GUIDE 07

75030047000

$21.03

40

CHAIN GUARD 07

75030060000

$6.91

41

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

99

GASKET SET LC4 2007

75030099000

$204.85
