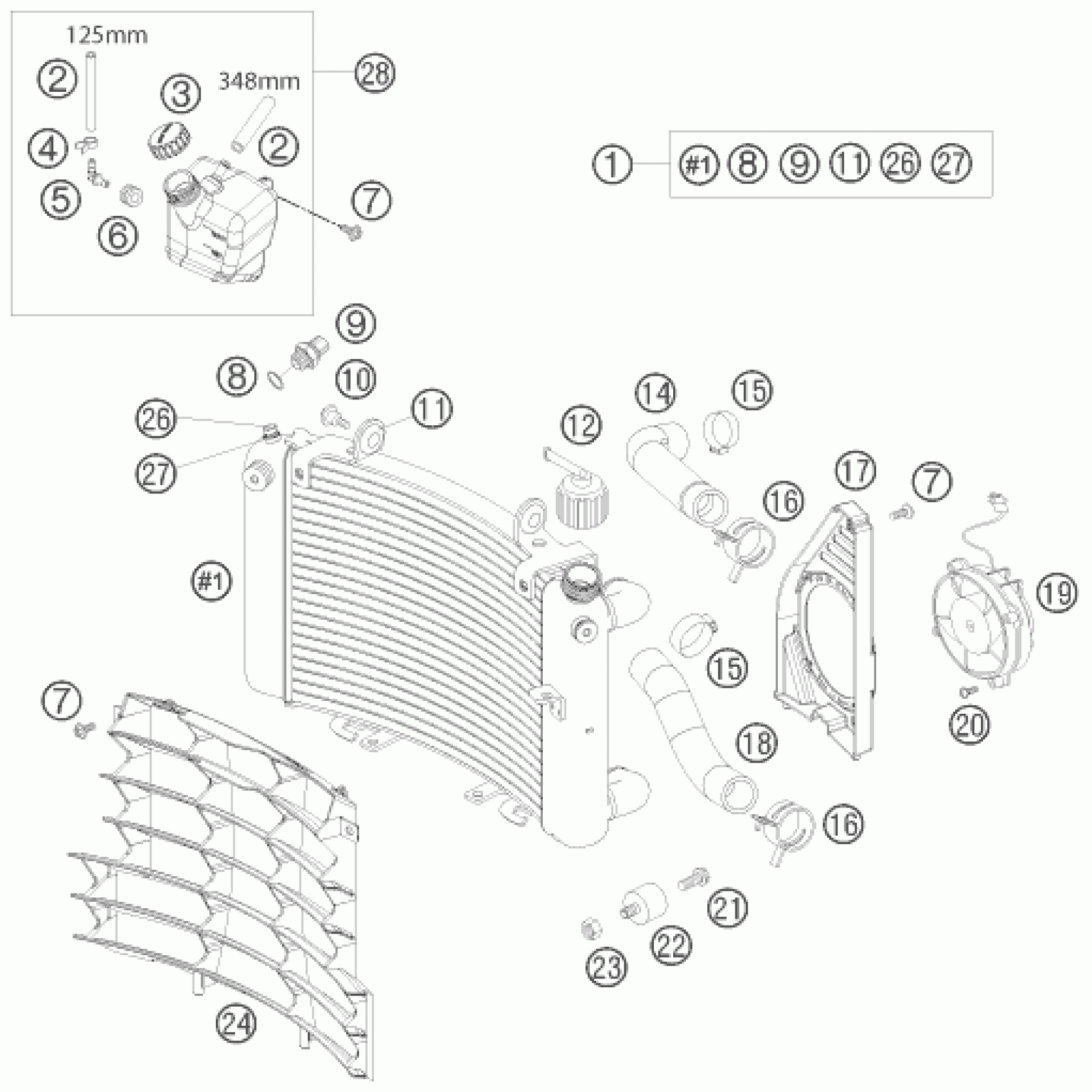

KTM 690 DUKE BLACK 2009 COOLING SYSTEM Diagram

#

Description

Price

1

RADIATOR ''45529'' 07

75035010000

Unavailable

2

HOSE 6X10 EPDM 03

60035067001

Unavailable

3

PLUG F. EXPANSION TANK

60035066000

Unavailable

4

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

5

Angle piece, reservoir

60035068000

Unavailable

6

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

7

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

8

O-ring 17X1.5

0770017015

Unavailable

9

THERMOSWITCH LC8 102DG '03

60035045000

Unavailable

10

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

11

RUBBER SLEEVE D=12MM

41001052000

Unavailable

12

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

14

RADIATOR HOSE 07

75035027000

Unavailable

15

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

16

CLAMP STD DN32

00049320121

Unavailable

17

FAN COWL 07

75035044000

Unavailable

18

RADIATOR HOSE 07

75035026000

Unavailable

19

FAN CPL. 12V LC4 2000

58435041000

Unavailable

20

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

21

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

22

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

23

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

24

RADIATOR PROTECTOR 07

75035040000

Unavailable

26

HH collar screw M6x10 TX30

0025060106

Unavailable

27

ALU-GASKET 6X10X1.5

60035048000

Unavailable

28

EXPANSION TANK CPL. 07

75035065000

Unavailable
