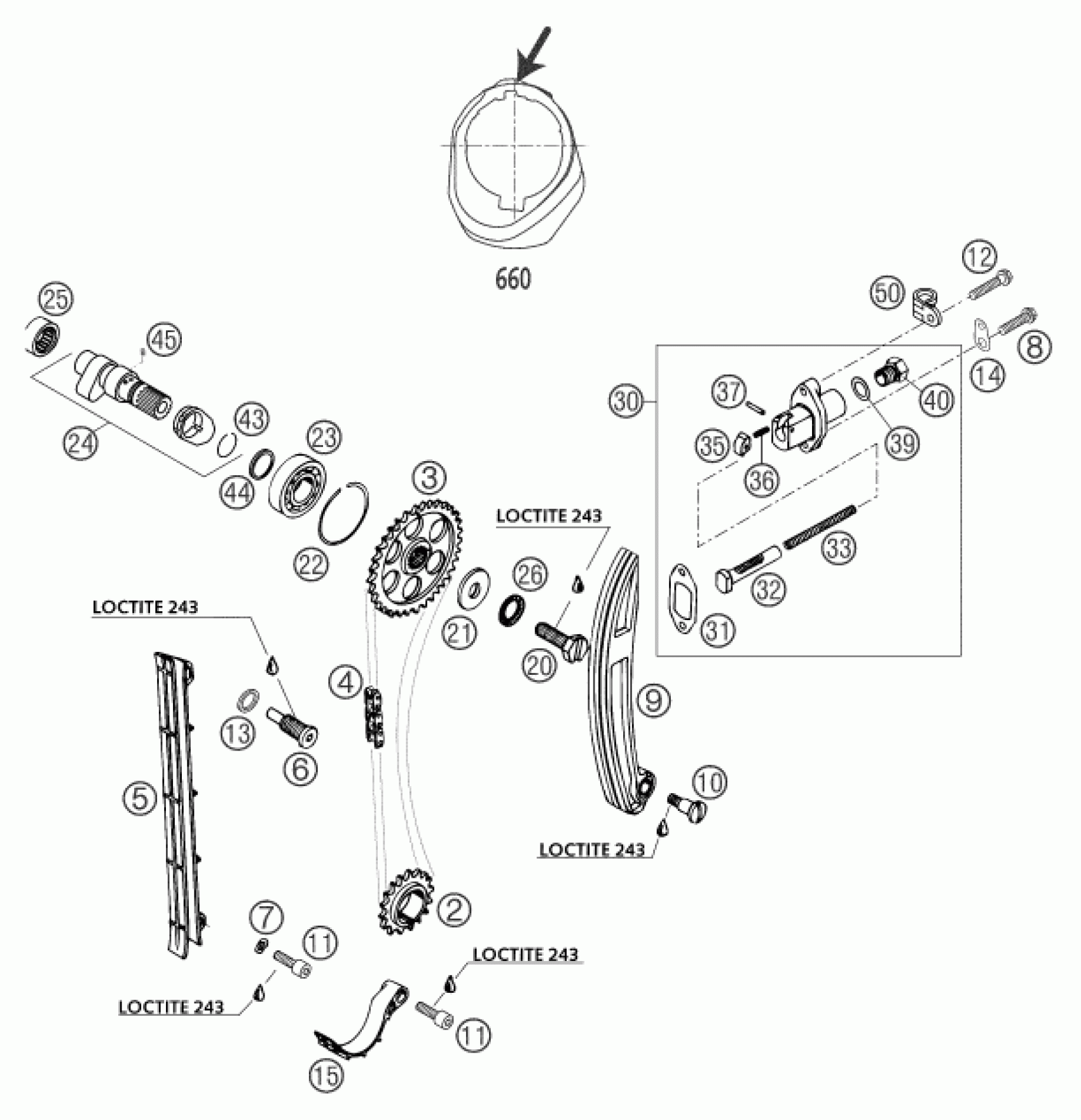

KTM 660 SUPERMOTO FACTORY REPL. 03 <2003> TIMING DRIVE Diagram

#

Description
Price

2

TIMING GEAR 17-T

58036014000

$56.14

3

CAMSHAFT GEAR 34-T ''01'' '94

58336011001

$73.45

4

TIMING CHAIN C107C / 100 LINKS

58036013000

$298.54

5

TIMING CHAIN GUIDE

58036001000

$14.07

6

CHAIN GUIDE SCREW

58036009000

$10.03

7

spring washer DIN 137 B - 6

0137060003

$2.05

8

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

9

CHAIN TENSIONER RALLYE

58536002044

Unavailable

10

FLAT HEAD SCR. M 8X12

0923080120

$4.78

11

AH SCREW DIN0912-M 6X20 SS

0912060208

$2.05

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

13

CU-SEAL RING 12 X 16 X 2

58038022100

$2.05

14

RETAINING PLATE

51005074000

$3.08

15

SECURING GUIDE

58336018000

$2.65

20

DRIVING SCREW M10X25

58336112000

$9.54

21

STEEL WASHER 10 X 28 X 3

58036012000

$3.48

22

CIRCLIP SB 42

58036096000

$3.08

23

GROOVED BALL BEARING TMB004

0625060040

$25.61

24

CAMSHAFT MSP1 CPL. 02

57336010044

$210.56

25

NEEDLE BEARING BK 2012

58036097000

$18.41

26

LOCKING WASHER 10MM

36003014200

$1.49

30

AUTOM.TENSIONER CPL. '88

58036003144

$299.10

31

TENSIONER GASKET 1,5 MM

58036005100

$3.08

32

PRESSURE BOLT

58036004100

$28.05

33

PRESSURE SPRING 0,9MM

58036006100

$1.49

35

RATCHETING PAWL

58036007100

$24.73

36

PRES.SPRING F.RATCHETING PAWL

58036007050

$1.49

37

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

39

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

40

PLUG M12X1,5

58036008100

$5.51

43

CIRCLIP WS20

0417200120

$2.05

44

STEPPED RING

58336015000

$5.98

45

SPRING FOR AUTO-DECOMPR. '95

58336016052

$1.73

50

CLAMP RSGU 24/15

54211052000

$11.30
