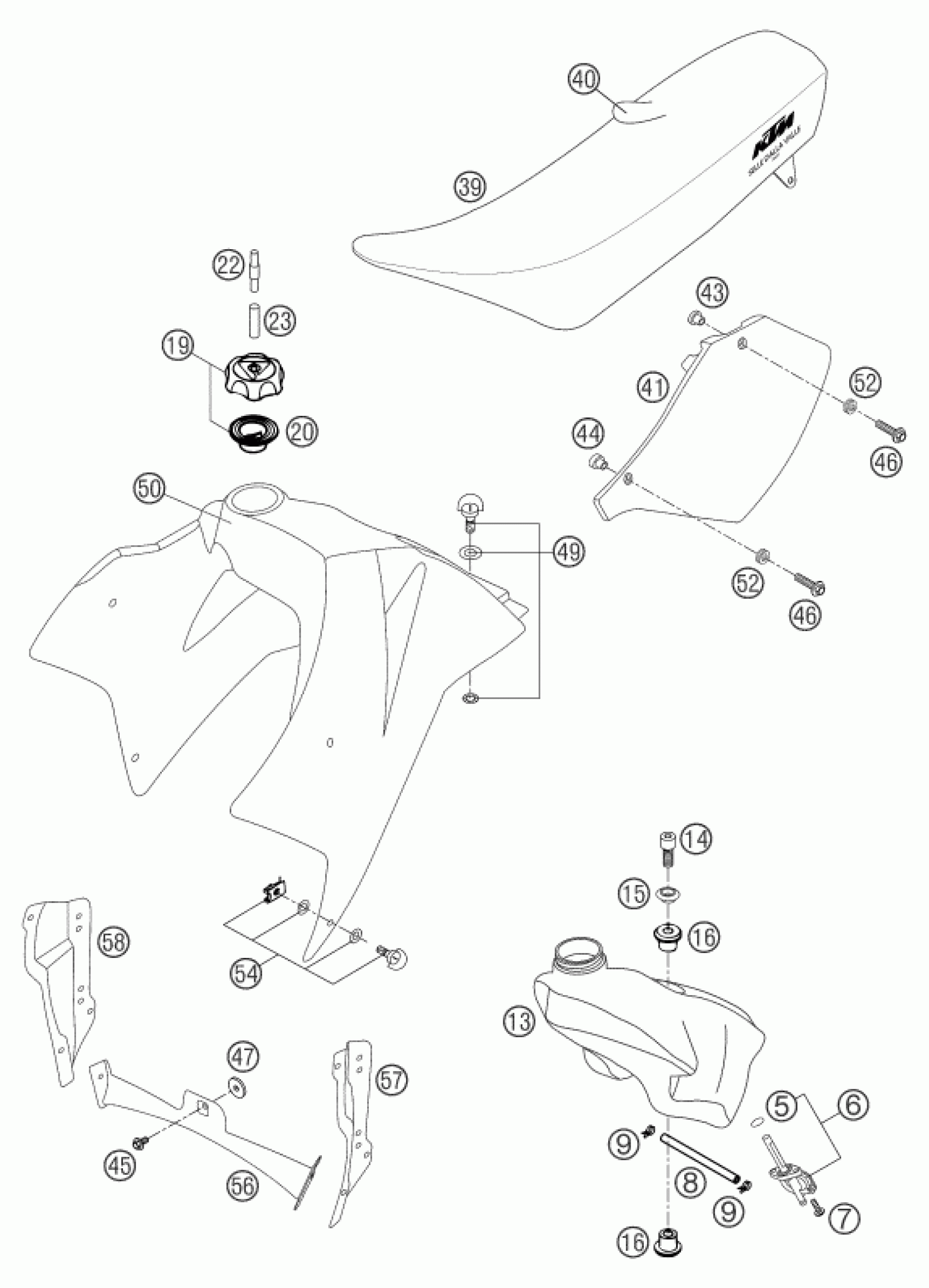

KTM 660 SUPERMOTO FACTORY REPL. 03 <2003> TANK, SEAT Diagram

#

Description
Price

5

O-RING 13,00X2,30

0770130023

$4.11

6

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

7

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

8

HOSE ID 7,5 PER METER

54435024001

Unavailable

9

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

13

FUEL TANK 660 SM 2003

57307013100

Unavailable

14

AH SCREW DIN912 M8x20

0912080203

$2.05

15

BUSHING SLEEVE OUT 2001

58512062000

$17.68

16

rubber bushing

56401040000

$5.23

19

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

20

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

22

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

39

SEAT 660 SM FACTORY REPLICA 03

57307040100

Unavailable

40

SEAT COVER 660 SM

57307040150

Unavailable

41

SIDE COVER L/S 660 SM 03

5730804110049

Unavailable

41

SIDE COVER R/S 660 SM 03

5730804210049

Unavailable

43

BUSHING FOR NUMBER PLATE SMS

57308007150

Unavailable

44

SPACER 6,2X8,7X15,5

57308007051

Unavailable

45

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

46

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

47

RUBBER WASHER 5X21X3

51005082200

$1.49

49

Quick lock

45007040051

$20.19

50

TANK COVER/SPOILER 660SM 03

5730702510049

Unavailable

52

rubber grommet D=8mm open

31008060000

$2.05

54

QUICK RELEASE TOP 2003

57307021050

Unavailable

54

QUICK RELEASE BOTTOM 2003

57307021055

Unavailable

56

AIR DEFLECTOR MIDDLE 03

57335012000

Unavailable

57

AIR DEFLECTOR L/S 03

57335111000

Unavailable

58

AIR DEFLECTOR R/S 03

57335211000

Unavailable
