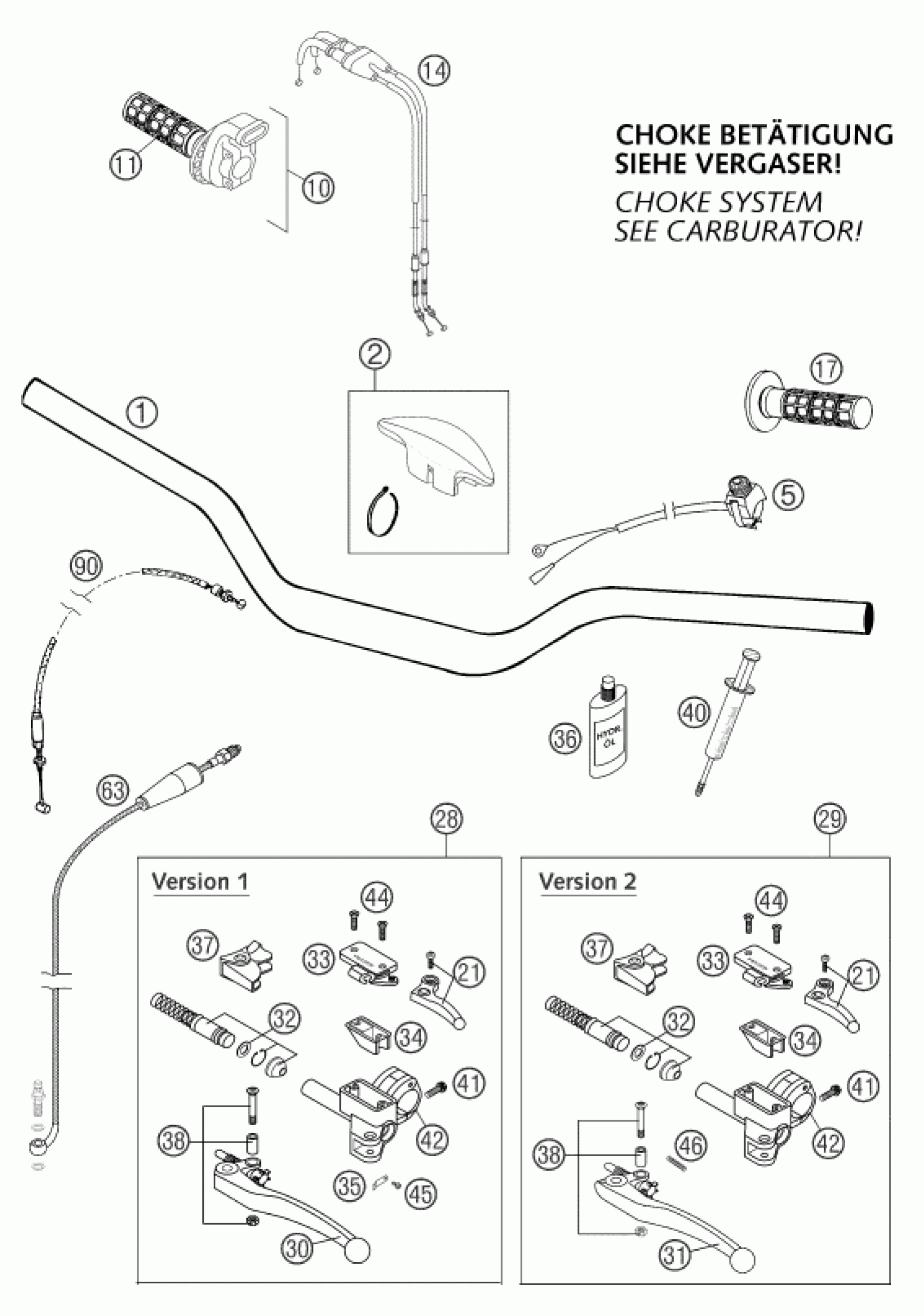

KTM 660 SUPERMOTO FACTORY REPL. 03 <2003> HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR 28MM HIGH 2000

59002001000

Unavailable

2

HANDLEBAR PAD 05

59002002000

Unavailable

5

Kill switch

50311089200

Unavailable

10

THROTTLE GRIP CPL.RACING2000

59002010200

Unavailable

11

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

14

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

21

LEVER CPL. RACING 2000

59002047000

Unavailable

28

MASTERCYLINDER CPL.RACING '00

59002030000

Unavailable

29

MASTER CYLINDER CPL. RACING 03

59002030100

Unavailable

30

CLUTCH LEVER CPL. 125-200 '98

50302031000

Unavailable

30

CLU.LEVER SHORT CPL. 2T 2000

50302031100

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

Unavailable

33

COVER HYD.CLUTCH RACING 2000

59002033000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING PLATE FOR LEVER '98

50302035000

Unavailable

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

40

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

42

CLAMP WITH PIN 2000

50302030150

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

45

AH SCREW DIN7984-M 3X 6

0984030063

Unavailable

46

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

63

CLUTCH PIPE LC4/SXC/SM 03

58432063000

Unavailable

90

DECOMPRESSION CABLE LC4 '93

58302094000

Unavailable
