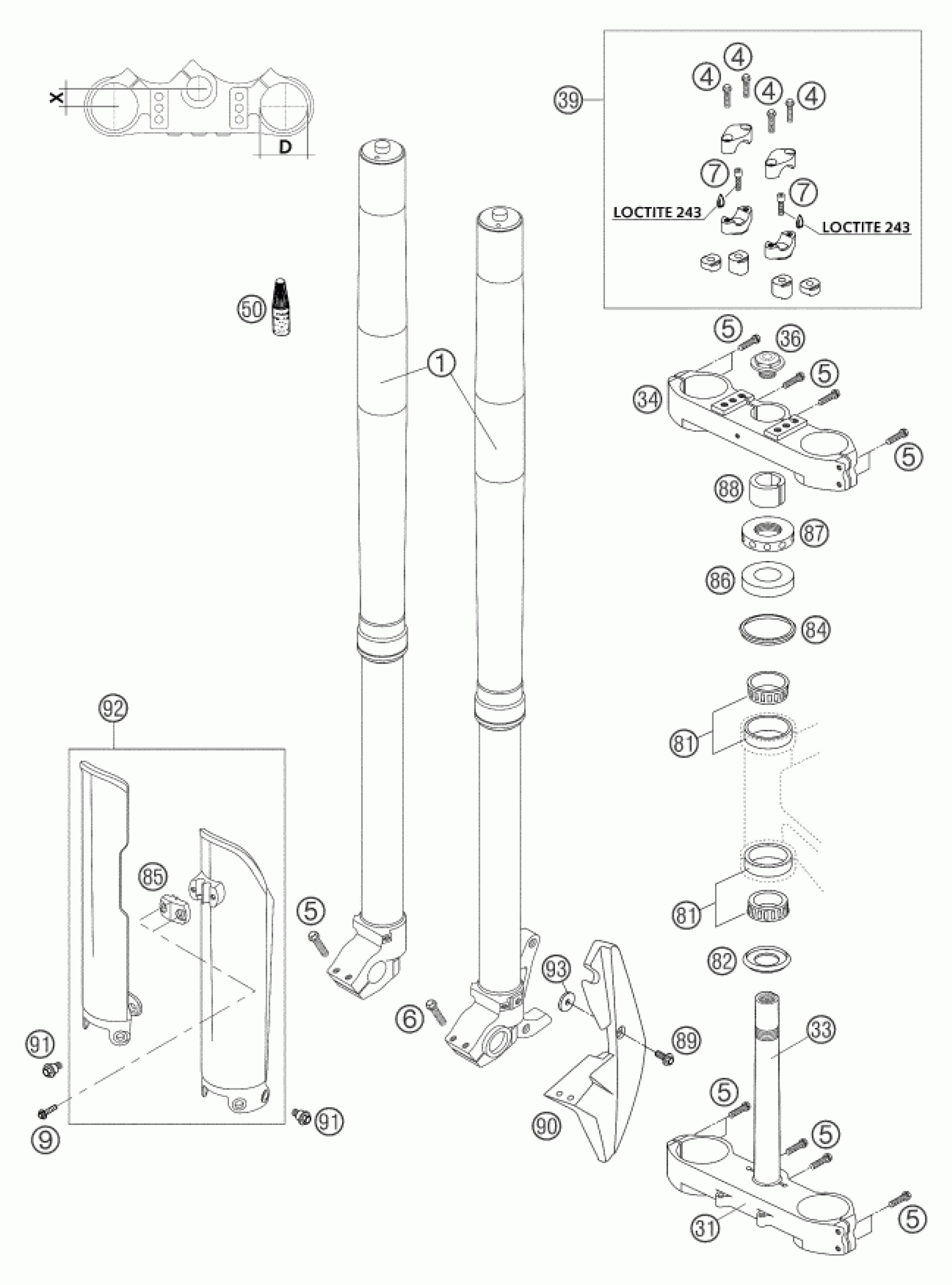

KTM 660 SUPERMOTO FACTORY REPL. 03 <2003> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK 4860 MXMA D=48MM 03

1418X731

Unavailable

4

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

7

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

7

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

7

AH SCREW DIN6912-M10X45 10.9

0912100456

Unavailable

9

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

31

BOTTOM TRIPLE CLAMP 660 SM 03

57301031100

Unavailable

33

FORKE TUBE 660 SM 02

57301033000

Unavailable

34

TOP TRIPLE CLAMP 660 SM 2003

57301034100

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

Unavailable

39

% HANDLEBAR SUPPORT CPL.D=28MM

59501039044

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

87

STEER.HEAD NUT 660SM 02

57301036000

Unavailable

88

ECCENTRIC-INSERT TOP 2,5MM 02

57301043000

Unavailable

89

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

90

BRAKE DISC SCOOP CPL. 660 SM

5730906500049

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

Unavailable

93

RUBBER WASHER 5X21X3

51005082200

Unavailable
