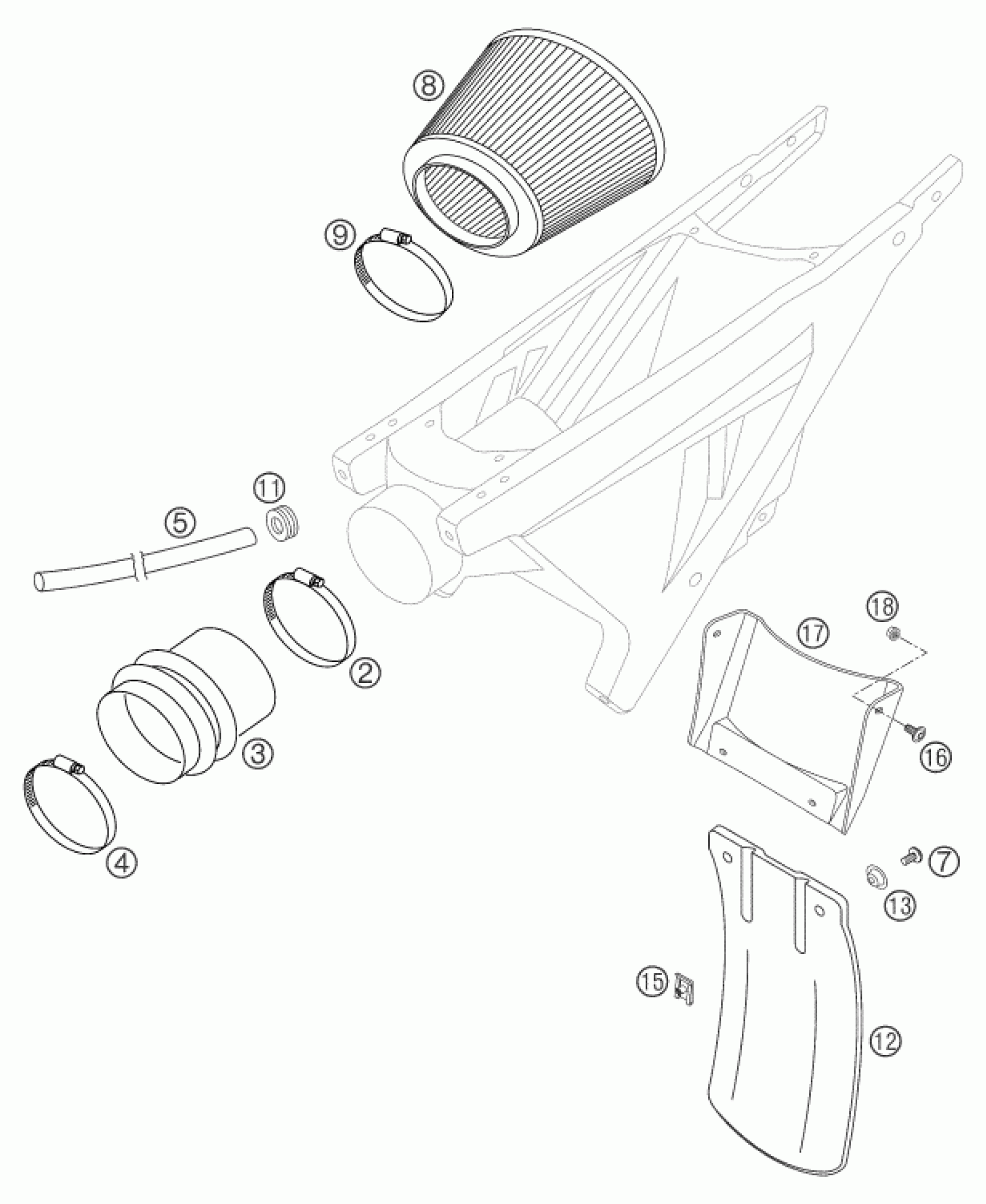

KTM 660 SUPERMOTO FACTORY REPL. 03 <2003> AIR FILTER Diagram

#

Description

Price

2

HOSE CLAMP 60-80MM

55006028000

Unavailable

3

AIR FILTER BOOT 540/620/640

58006026500

Unavailable

4

HOSE CLAMP 50-70MM

51006027000

Unavailable

5

HOSE 10X14 PER METER

57005020001

Unavailable

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

8

AIR FILTER

57306015000

Unavailable

9

HOSE CLAMP 70-90MM

58506027000

Unavailable

11

RUBBER SLEEVE D=12MM

41001052000

Unavailable

12

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

13

BUCKET

72210079000

Unavailable

15

clip nut M6

54603048100

Unavailable

16

FLAT H. SCREW HEX. M6X12 BLACK

57307025050

Unavailable

17

FENDER LINER BLACK 660 SM 03

57308017000

Unavailable

18

Self locking nut M6 - 10

56509064100

Unavailable
