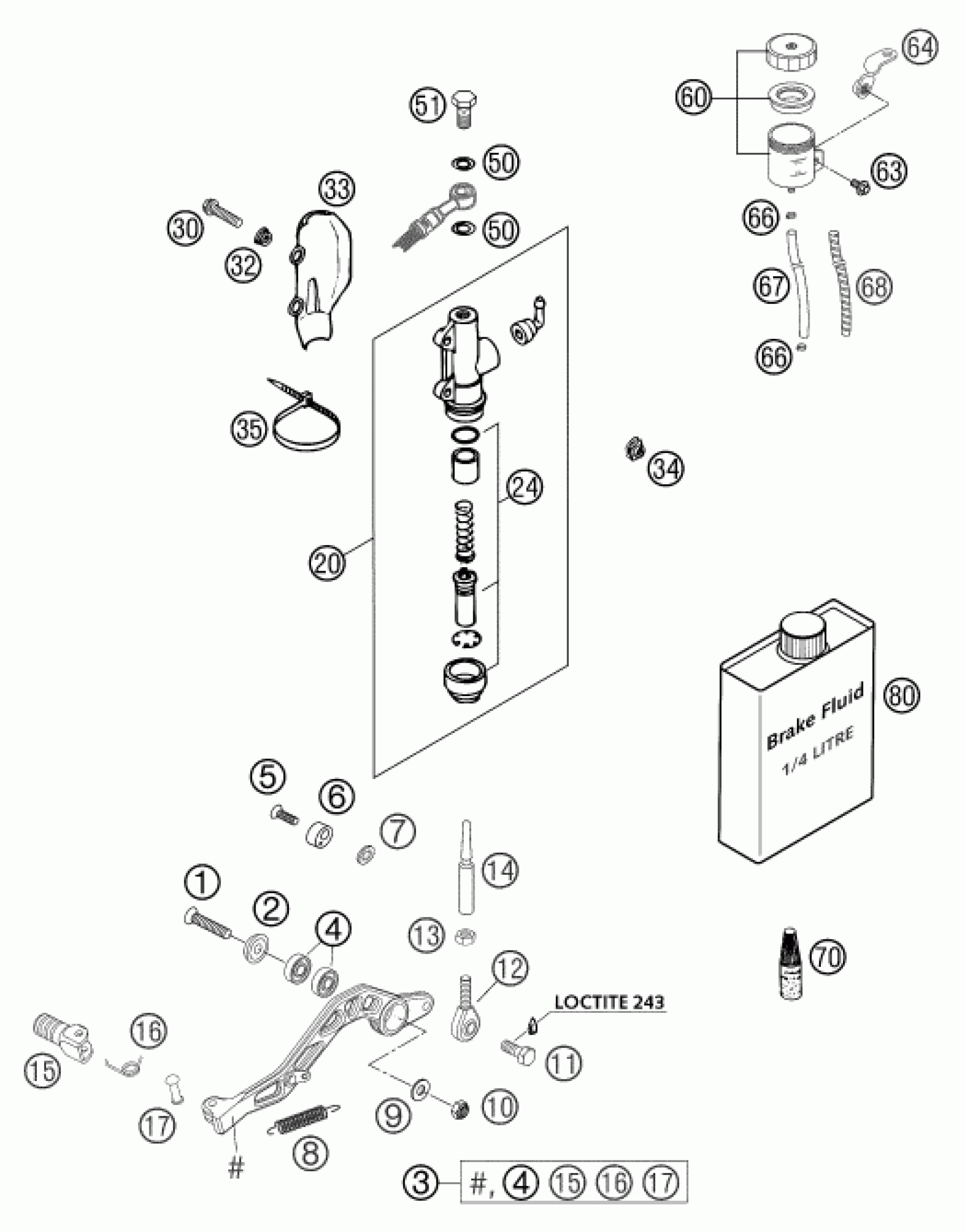

KTM 660 SMS <2004> REAR BRAKE CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

2

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

3

FOOT BRAKE LEV. FOLDING CPL.04

58403070244

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

Unavailable

5

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

6

BRAKE LEVER STOP LC4 03

58413048000

Unavailable

7

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

8

RETURN SPRING

13003062000

Unavailable

9

washer DIN 125 A -8.4

0125080003

Unavailable

10

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

11

HH SCREW DIN0933-M 8X22 8.8

0933080223

Unavailable

12

HEIM JOINT M8 W=12MM '93

58303062000

Unavailable

13

Hexagon nut DIN934 M8

0934080003

Unavailable

14

PUSH ROD STEEL 660SM L=60 02

57313056000

Unavailable

15

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable

16

SHIFTING LEVER SPRING 250

54634032100

Unavailable

17

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

20

MAIN BRAKE CYLINDER '89

54513101044

Unavailable

24

REPAIR KIT PISTON 13MM

54513150000

Unavailable

30

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

32

COLLAR BUSHING

50213161000

Unavailable

33

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

Unavailable

34

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

35

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

50

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

51

HOLLOW SCREW M10X1X19

50213025000

Unavailable

60

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

64

ANGLE BRACKET F. BRAKE FL.RES.

57313068000

Unavailable

66

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

67

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

68

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

70

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
