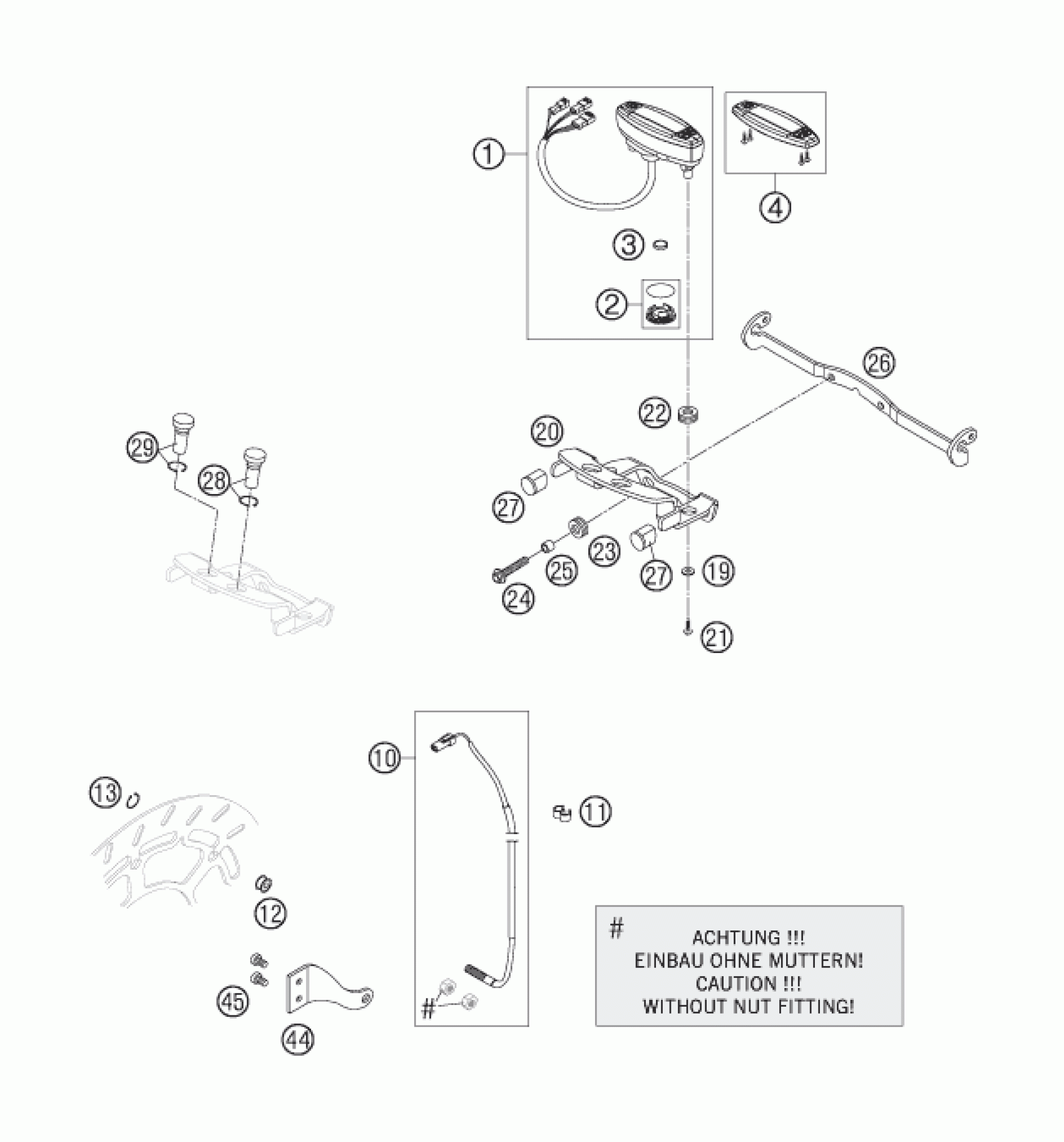

KTM 660 SMC 2005 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 17'' 200

54814069200

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 05

54814068000

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

SENSOR MAGNET ADVENTURE 01

58214069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

20

SPEEDOMETER BRACKET 660 SMC 05

58614060000

Unavailable

21

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

25

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

26

FLASHER BRACKET 2002

58314033100

Unavailable

27

PLUG CAP KV8 05

58608003000

Unavailable

28

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

29

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

44

BRACKET F. SENSOR SM 03

58314052000

Unavailable

45

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

Unavailable
