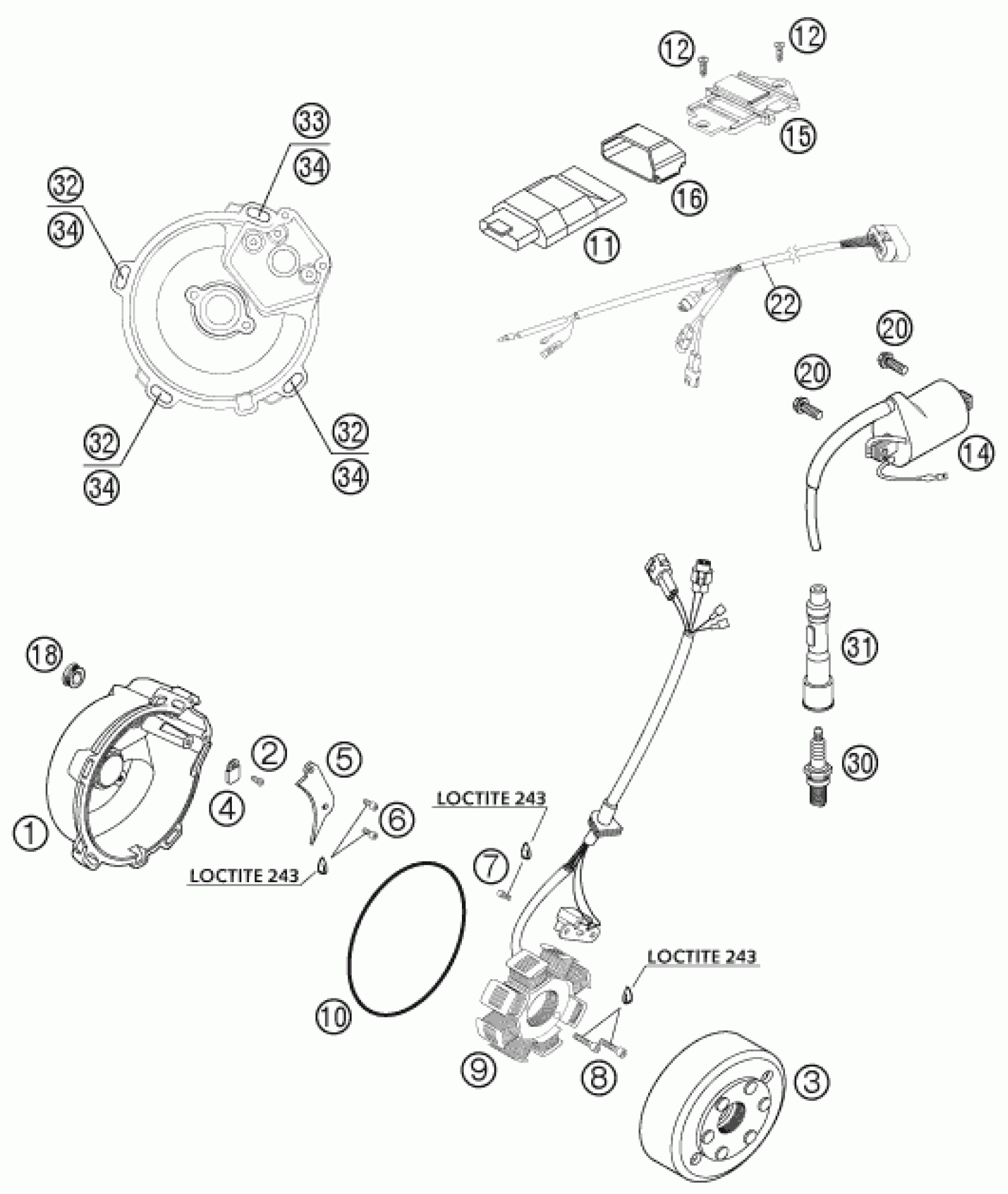

KTM 660 SMC 2005 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 4K3 GREY 03

5833000200023

Unavailable

2

SPECIAL SCREW DIN7500-M 5X 8

0500050083

Unavailable

3

FLYWHEEL KOKUSAN 660 SM 04

58639005100

Unavailable

4

RETAINING PLATE

50031003000

Unavailable

5

CLOSING COVER 4K3

58330002050

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

7

AH SCREW DIN0912-M 5X15

0912050153

Unavailable

8

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

9

STATOR KOKUSAN 4K3 SC 2002

58339004100

Unavailable

10

O-RING 126,72X1,78 B70

0770020490

Unavailable

11

CDI 660 SMC 05

58639031100

Unavailable

12

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

14

Ignition coil

58439006000

Unavailable

15

HOLDER FOR CDI 05

58639030000

Unavailable

16

RUBBER HOLDER FOR CDI 05

80039030100

Unavailable

18

PLUG M18X1,5

58030002050

Unavailable

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

IGNITION WIRING HARNESS 04

80011075300

Unavailable

30

SPARK PLUG NGK DCPR8E 03

59039093100

Unavailable

31

SPARK PLUG CONNECT. 03

58439090000

Unavailable

32

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

33

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

34

WASHER DIN0125-A 6,4

0125060003

Unavailable
