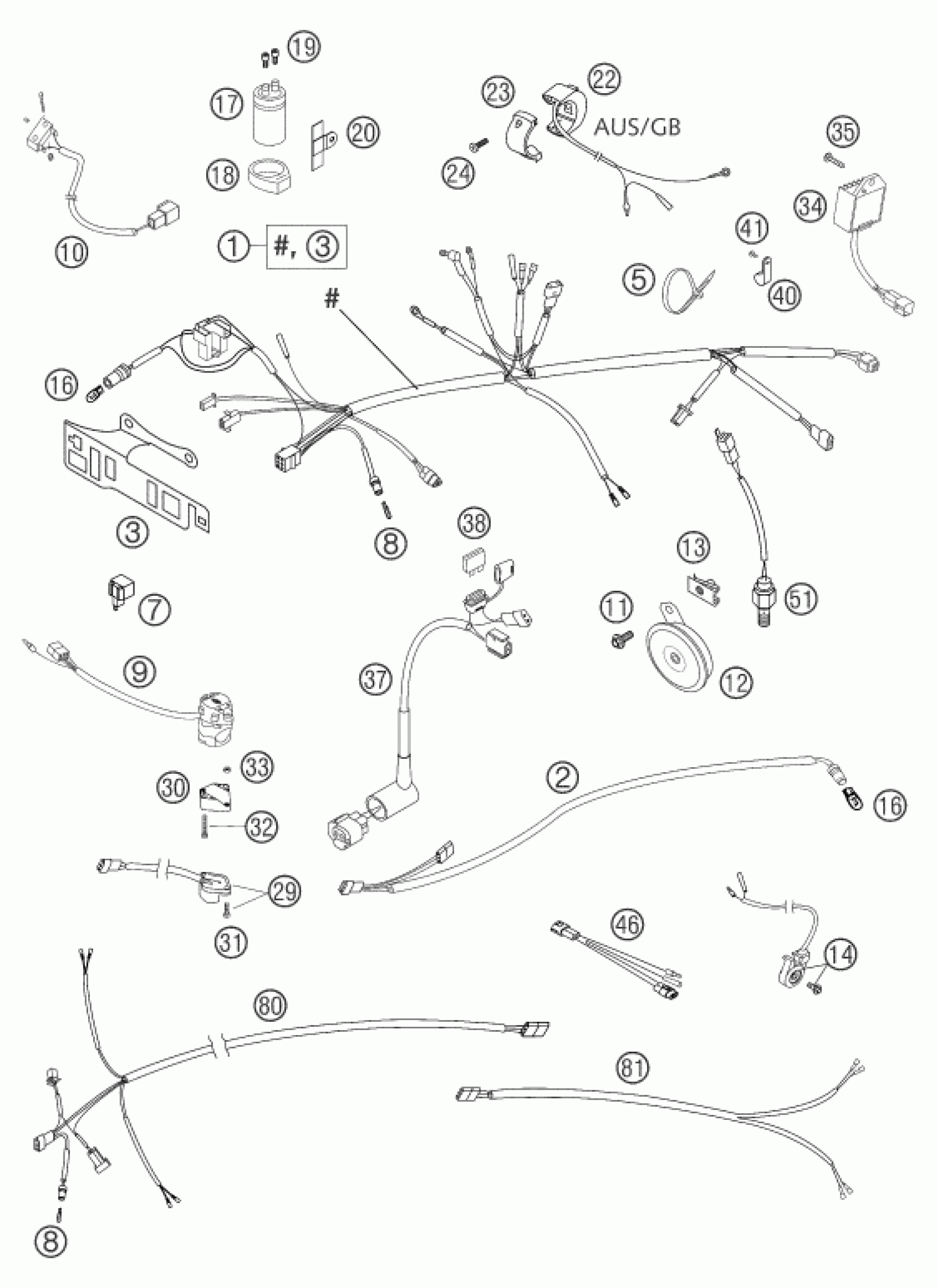

KTM 660 SMC 2004 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS SMC CPL. 04

58311375500

Unavailable

2

WIRING H. NUMBER P. LIGHT 2001

58411047000

$13.00

3

SUPPORT BRACKET BLACK 2001

59011083000

$20.70

5

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

9

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

10

BRAKE LIGHT SWITCH FRONT SM 03

58411050000

$40.66

11

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

12

DC HORN L.E.B. 03

50311060100

$32.44

13

clip nut M6

54603048100

$4.11

14

SIDE STAND SWITCH CPL. '97

58411045000

$97.89

16

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

17

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

18

CAPACITOR BRACKET

54511048000

$4.33

19

SHCS DIN 912 M5x8

0912050083

$1.49

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

22

ENGINE STOP SWITCH CEV

50311074000

$52.16

23

CLAMP ENGINE STOP SWITCH

50311074050

$3.08

24

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

34

VOLTAGE REGULATOR 04

80011034000

$99.57

35

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

37

FAN WIRING HARNESS 04

58311079100

$28.96

38

FUSE 5 A

58011109005

$2.05

40

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

41

SCREW FOR PLASTIC 50X12

0016050121

$2.05

46

ADAPT.CABLE F.SIDE STAND SM 03

58611046000

Unavailable

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

80

FLASH.WIRINGHARNESS FRONT 2001

59011080000

$35.24

81

FLASH.WIRINGHARNESS REAR 2001

59011081000

$20.19
